Technical Specifications
| Parameter | Specification |
|---|---|

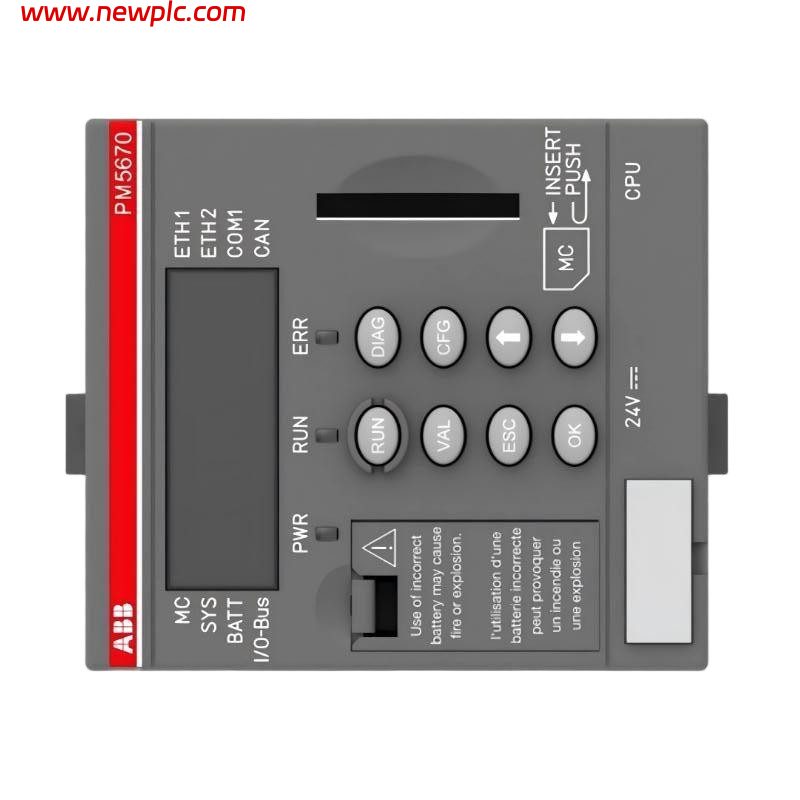

| Product Name | ABB PM5670-MC-KIT |
| Product ID | 1SAP151000R0379 |
| Manufacturer | ABB |
| Product Type | Motion Control Controller Kit |
| Series | ABB AC500 Motion Control System |
| Function | PLC + multi-axis motion control kit for industrial automation |
| CPU Type | PM5670-2ETH-based controller |
| Included Modules | PM5670-2ETH, CM579-ETHCAT, TB5610-ETH, PS5611-MC |
| Motion Control | PLCopen-based synchronized multi-axis control |
| Communication Interfaces | 2 × Industrial Ethernet, EtherCAT, CAN, other fieldbus interfaces |
| Protocol Support | TCP/IP, EtherCAT, CAN-based communication |
| Memory | 820,500 kB RAM (system specification) |
| Supply Voltage | 20.4 – 28.8 V DC |
| Rated Voltage | 24 V DC |
| Processing Time | 0.000002 ms |
| Protection Rating | IP20 |
| Mounting Type | DIN rail mounting |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5% – 95% non-condensing |
| Cooling Method | Natural convection |
| Application | Robotics, packaging machines, conveyor systems, industrial motion control |
| System Platform | ABB AC500 |
| Country of Origin | Germany / China (varies by batch) |
| Dimensions (H × W × D) | 110 × 180 × 250 mm |
| Weight | 0.363 kg |
FAQ
FAQ
Q1: What is the ABB PM5670-MC-KIT used for?
It is a motion control PLC kit used for synchronized multi-axis industrial automation applications.
Q2: What components are included in the kit?
It includes PM5670-2ETH CPU, CM579-ETHCAT communication module, TB5610-ETH terminal base, and PS5611-MC power module.
Q3: Does it support EtherCAT communication?
Yes, it supports EtherCAT for real-time motion control.
Q4: What programming software is used?
ABB Automation Builder is used for configuration, programming, and motion setup.
Q5: Is it suitable for robotics applications?
Yes, it is widely used in robotics, packaging systems, and machine automation.
Q6: Can the system be expanded?
Yes, it supports AC500 I/O and communication expansion modules.
Q7: What is the power requirement?
It operates on 24 V DC within a 20.4–28.8 V DC range.
Q8: What makes it different from standard PLC CPUs?
It integrates dedicated motion control and EtherCAT communication for high-speed synchronized automation tasks.
