Technical Specifications
| Parameter | Specification |
|---|---|

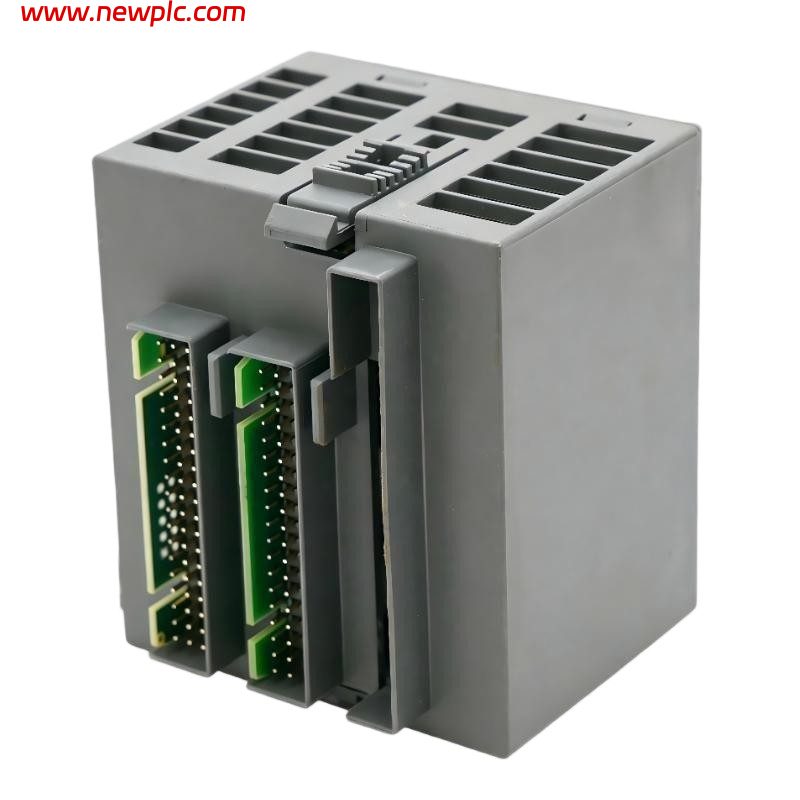

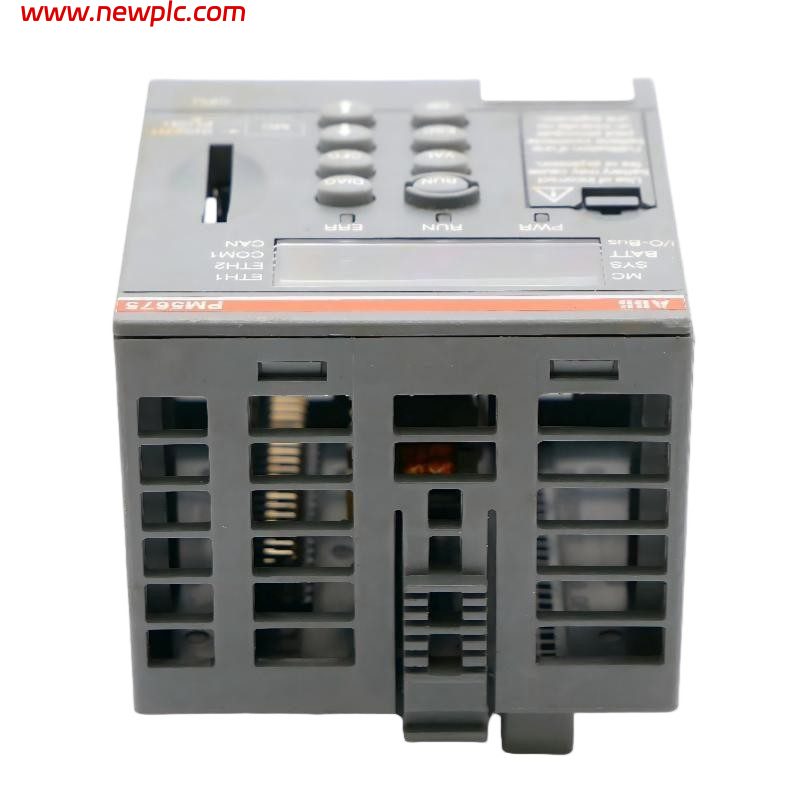

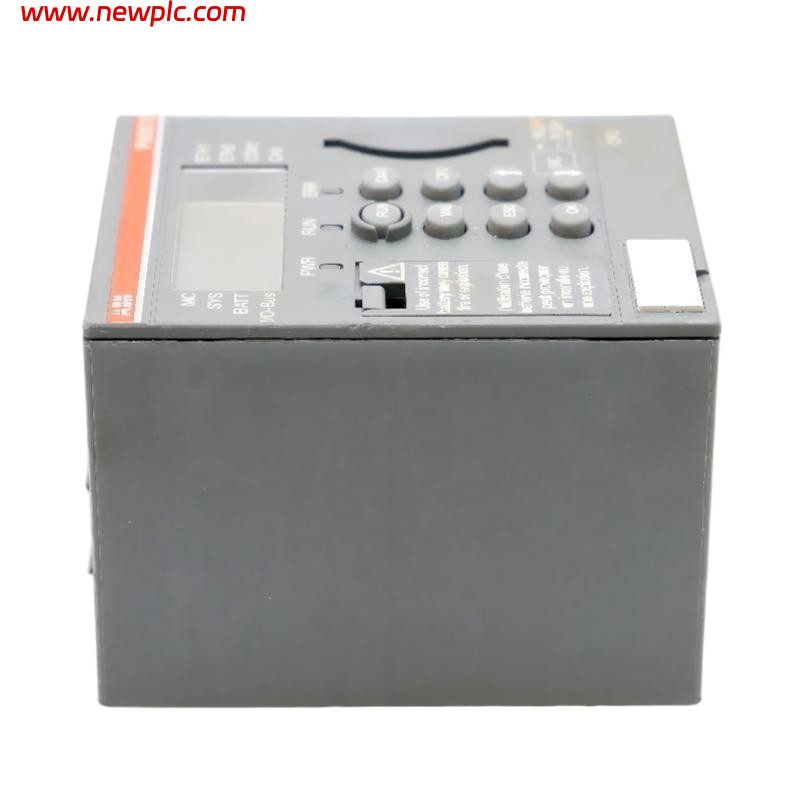

| Product Name | ABB PM5675-2ETH |
| Product ID | 3ABD00038897 |
| Manufacturer | ABB |
| Product Type | PLC Processor Module (AC500) |
| Series | ABB AC500 |
| Function | High-performance PLC CPU for industrial automation and process control |
| Memory | 160 MB RAM |
| Flash Storage | Integrated 8 GB Flashdisk |
| Display | Integrated LCD display with function keys |
| Communication Interfaces | 2 × Ethernet, 1 × RS232/RS485, 1 × CAN |
| Protocol Support | Modbus TCP/IP, CANopen, IEC 60870-5-104, OPC UA (configuration dependent) |
| Memory Card Slot | Yes |
| Ethernet Ports | 2 |
| Supply Voltage | 20.4 – 28.8 V DC |
| Rated Voltage | 24 V DC |
| Processing Time | 0.000002 ms |
| Expansion Capability | Supports AC500 I/O and communication modules |
| Protection Rating | IP20 |
| Mounting Type | DIN rail mounting |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% – 95% non-condensing |
| Cooling Method | Natural convection |
| Dimensions (H × W × D) | Approx. 76 × 67.5 × 62 mm |
| Weight | Approx. 0.135 kg |
| Application | Industrial automation, machine control, process systems, distributed control applications |
| Country of Origin | Germany / Sweden / Finland (varies by production batch) |
FAQ
FAQ
Q1: What is the ABB PM5675-2ETH used for?
It is a high-performance PLC processor module designed for industrial automation, machine control, and process control systems.
Q2: How much memory does the PM5675-2ETH provide?
The module includes 160 MB RAM and an integrated 8 GB Flashdisk for program execution and data storage.
Q3: What communication interfaces are available?
It provides 2 Ethernet ports, 1 RS232/RS485 serial interface, and 1 CAN communication interface.
Q4: Does the module include a display?
Yes, it features an integrated LCD display with function keys for diagnostics and system monitoring.
Q5: What industrial communication protocols are supported?
It supports Modbus TCP/IP, CANopen, OPC UA, IEC 60870-5-104, and other Ethernet-based industrial protocols depending on configuration.
Q6: Can additional modules be connected to the CPU?
Yes, it supports AC500 I/O expansion modules and communication modules.
Q7: What is the required power supply?
The module operates on 24 V DC with an allowable voltage range of 20.4–28.8 V DC.
Q8: What industries commonly use the PM5675-2ETH?
It is widely used in manufacturing automation, process industries, machine control systems, and distributed industrial control applications.
