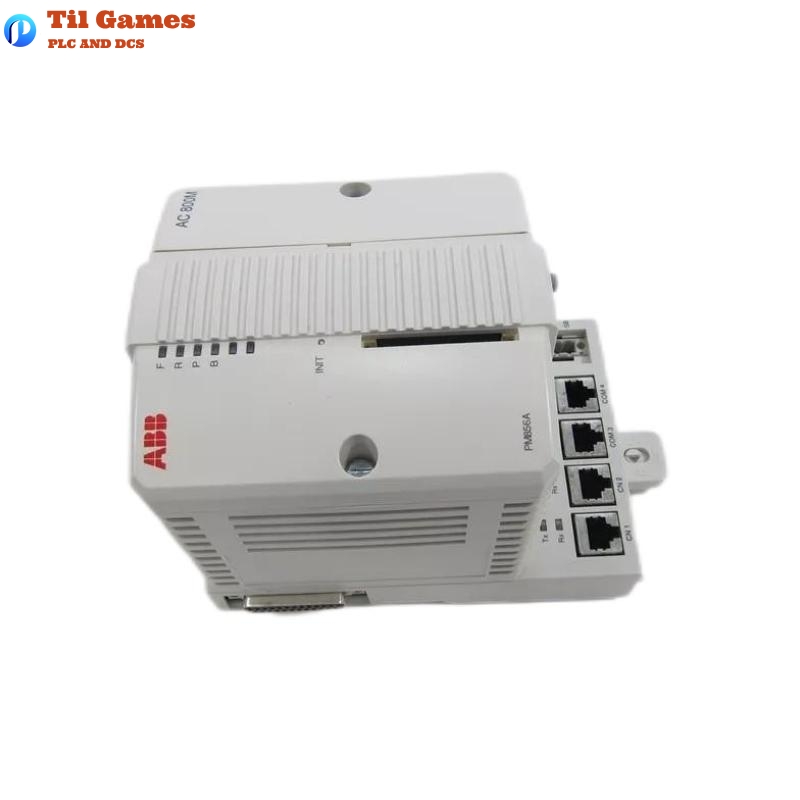

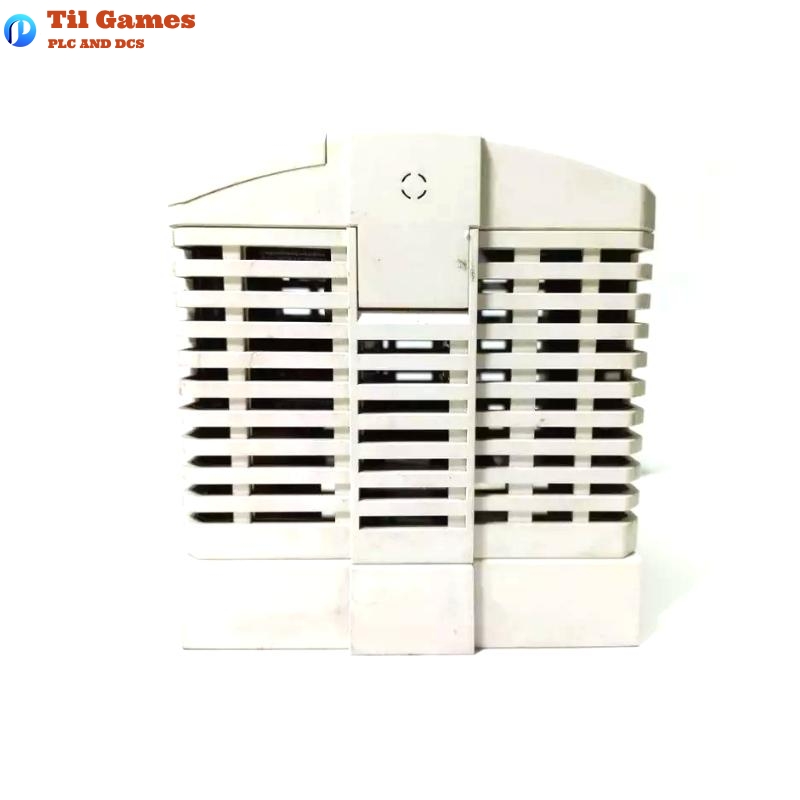

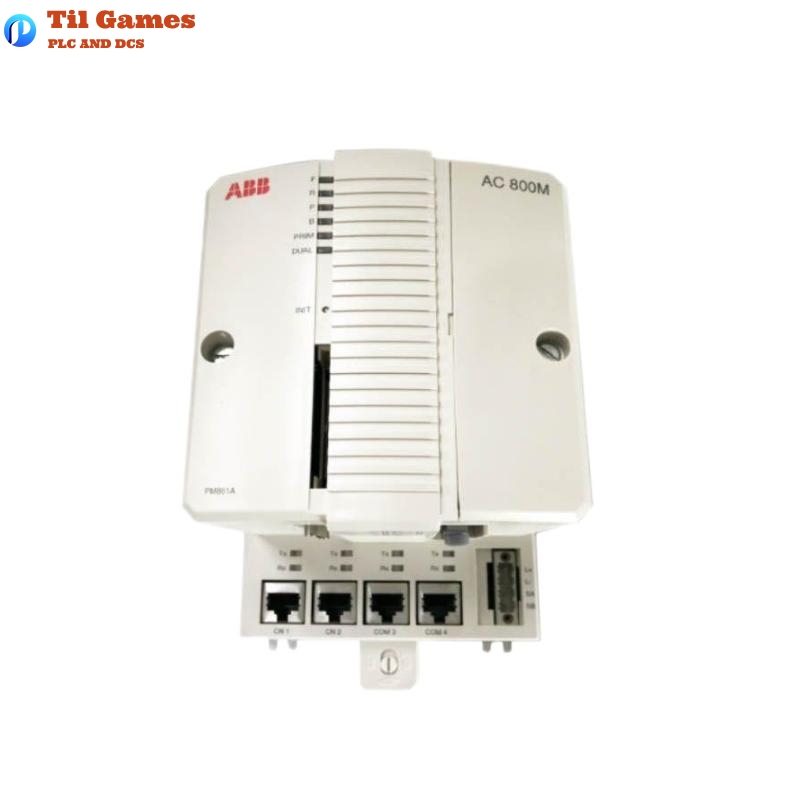

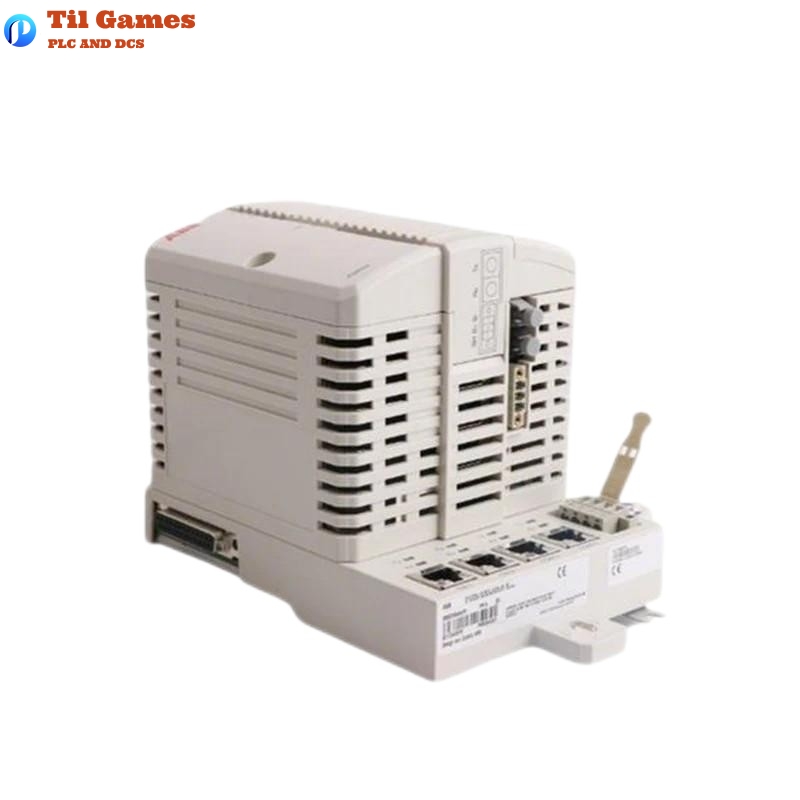

Technical Specifications of ABB PM856AK01 3BSE066490R1 AC 800M Controller Processor Unit
| Parameter | Specification |
|---|---|
| Model Number | 3BSE066490R1 (PM856AK01) |
| Processor Type | MPC860 |
| Clock Frequency | 24 MHz |
| Performance (1000 boolean operations) | 0.46 ms |
| Memory | 16 MB (total), 10.337 MB RAM for application |
| Flash Memory for Storage | Yes |
| Number of Applications per Controller | 32 |
| Cycle Time per Application | Down to 1 ms |
| Power Supply | 24 V d.c. (19.2-30 V d.c.) |
| Power Consumption | 180 mA (typical), 300 mA (max) |
| Power Dissipation | 4.32 W (typical), 7.2 W (max) |
| Built-in Back-up Battery | Lithium, 3.6 V |
| Dimensions (W x H x D) | 119 × 186 × 135 mm |
| Weight | 1.1 kg |
| Ethernet Interface | 10 Mbit/s, RJ-45, female (8-pole) |
| Temperature Range (Operating) | +5 to +55 °C |
| Temperature Range (Storage) | -40 to +70 °C |
| Protection Class | IP20 |
| Vibration Resistance | 0.0375 mm amplitude (10-50 Hz), 0.5 g acceleration (50-150 Hz) |
| Pollution Degree | Degree 2 (IEC/EN 61131-2) |
| RS-232C Interfaces | 2 (one for service tool, one general) |
FAQ
FAQs
Q1: What is the power supply requirement for the ABB PM856AK01 controller?
A1: The power supply requirement for the ABB PM856AK01 controller is 24 V d.c., with a range of 19.2-30 V d.c.
Q2: What is the typical power consumption of the PM856AK01 controller?
A2: The typical power consumption of the PM856AK01 controller is 180 mA, with a maximum of 300 mA.
Q3: How many applications can the PM856AK01 controller support?
A3: The PM856AK01 controller can support up to 32 applications.
Q4: What is the flash memory capacity for storage in the PM856AK01 controller?
A4: The PM856AK01 controller includes flash memory for storage, with a 2MB flash PROM for firmware storage.
Q5: What is the cycle time per application in the PM856AK01 controller?
A5: The cycle time per application can go down to 1 ms.
Q6: What is the operating temperature range for the PM856AK01 controller?
A6: The operating temperature range is between +5 to +55 °C.
Q7: Does the PM856AK01 controller have Ethernet connectivity?
A7: Yes, the PM856AK01 controller features two Ethernet ports with a 10 Mbit/s connection speed, using RJ-45 connectors.
Q8: What is the protection class rating of the PM856AK01 controller?
A8: The PM856AK01 controller has an IP20 protection class rating according to EN 60529.
