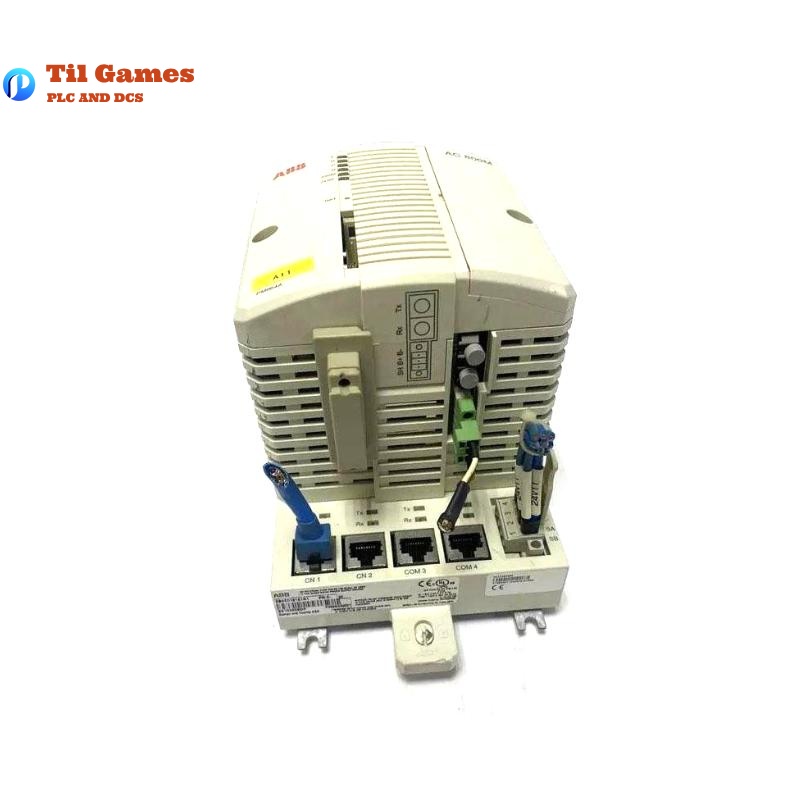

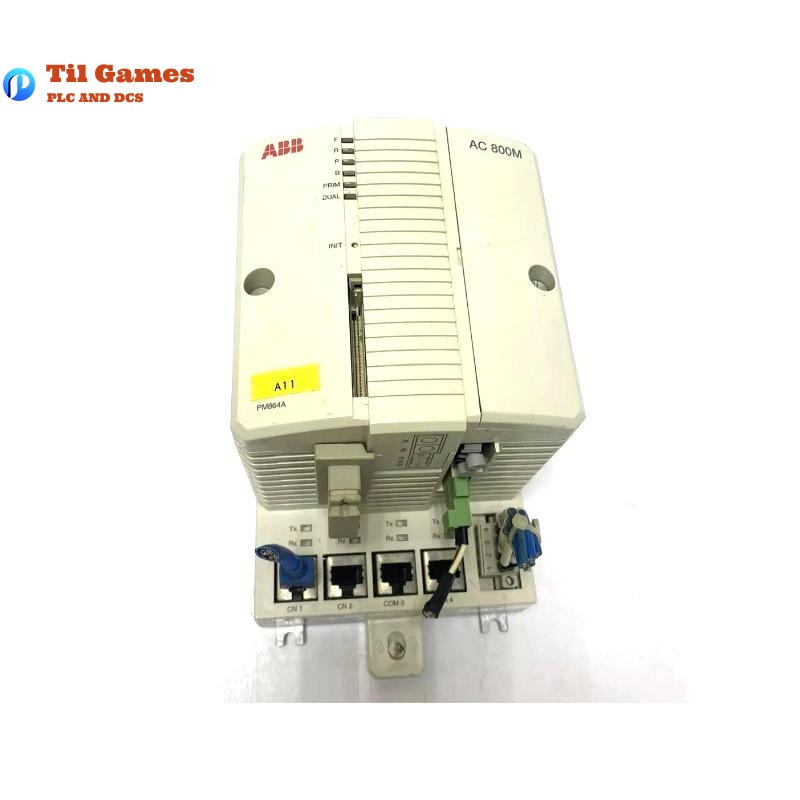

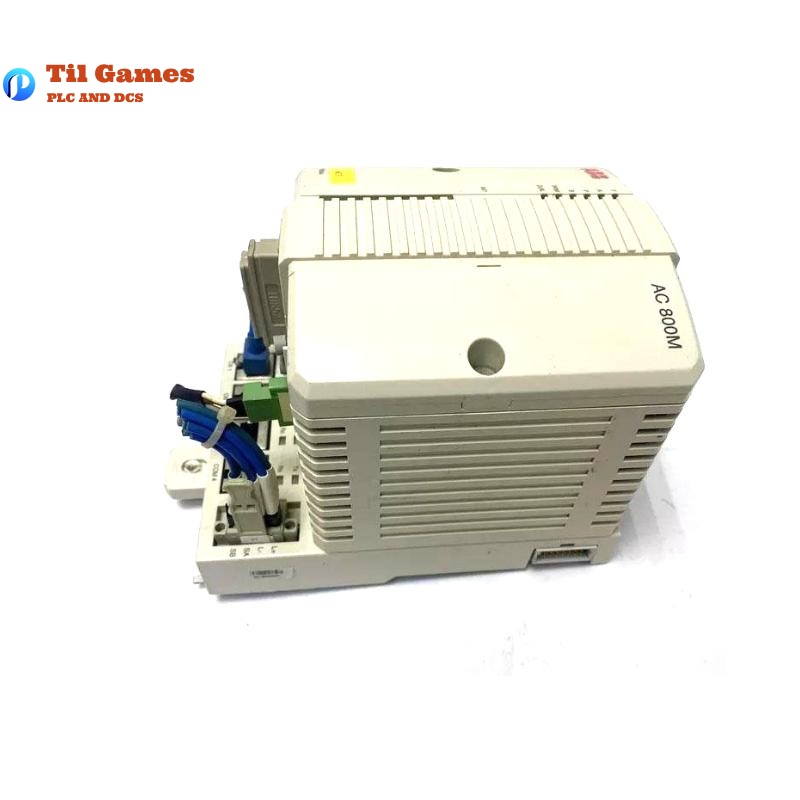

ABB PM864AK02 3BSE018164R1 AC 800M Controllers Processor Unit

Frequently Asked Questions (FAQ)

Q1: Does the PM864AK02 support redundancy?
A1: Yes, it supports CPU, CEX-Bus, and communication interface redundancy for high availability applications.

Q2: How many applications can it support?
A2: The controller can support up to 32 applications, each with up to 64 programs and 128 diagrams.

Q3: What type of processor is used?
A3: The controller uses the MPC862 processor with a 96 MHz clock frequency.

Q4: What type of network interface does it have?
A4: It features 2 RJ45 Ethernet ports compliant with IEEE 802.3, operating at 10 Mbit/s.

Q5: What is the I/O module capacity on the Modulebus?
A5: It can support up to 96 I/O modules for a single CPU or 84 in a redundant setup.

Q6: What are the power requirements?
A6: It requires 24 V DC (19.2–30 V range), with typical current draw at 287 mA and max at 487 mA.

Q7: What environments is the PM864AK02 suitable for?
A7: It’s designed for industrial environments, with an operating temperature range of +5 to +55 °C and IP20 protection rating.

Q8: Which communication protocols are supported?
A8: The controller supports MMS (Manufacturing Message Service) and IAC (Inter Application Communication) protocols.
