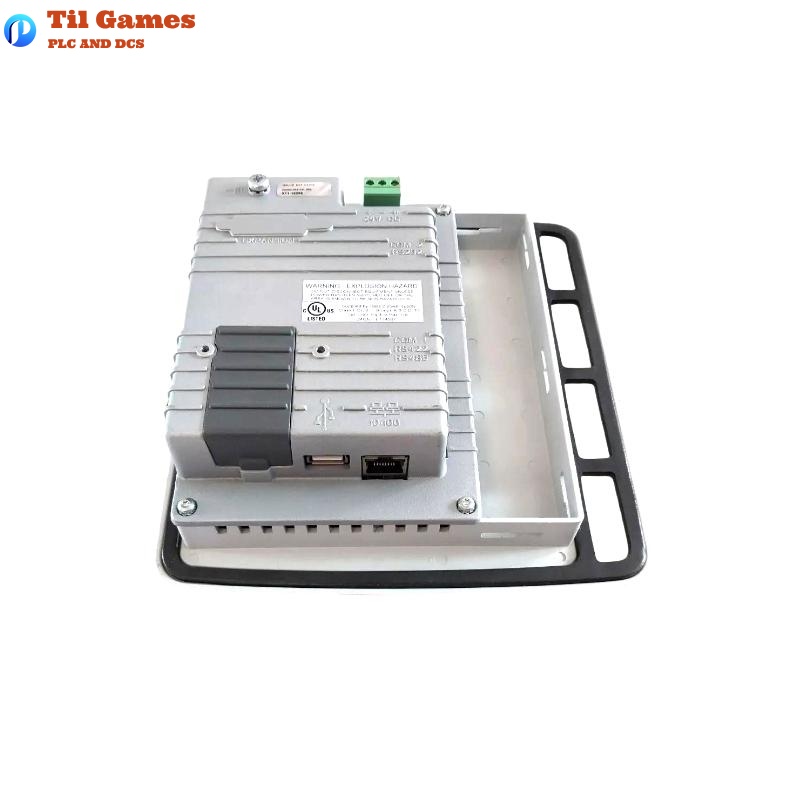

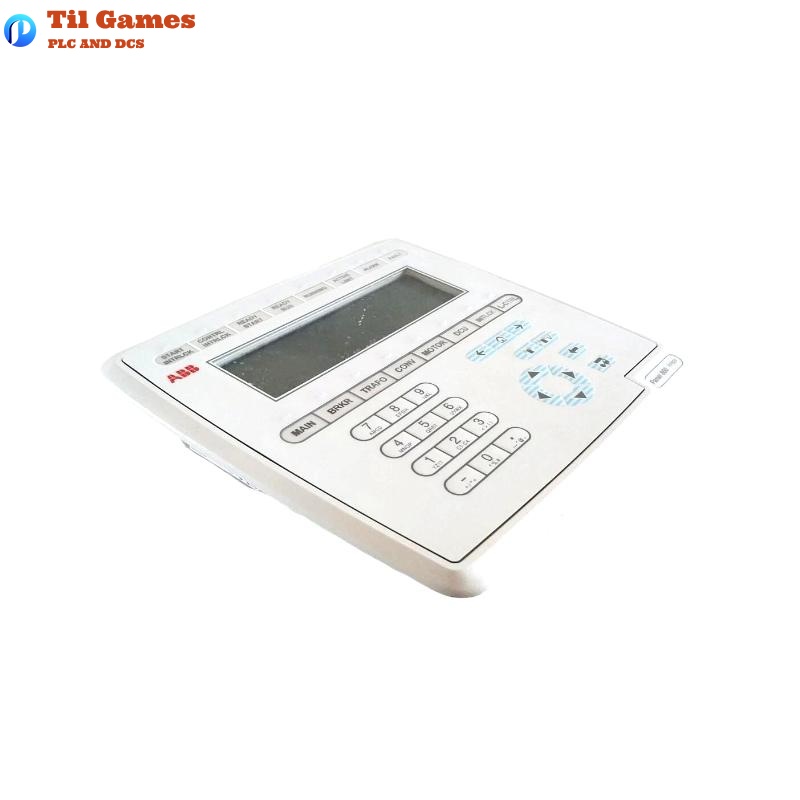

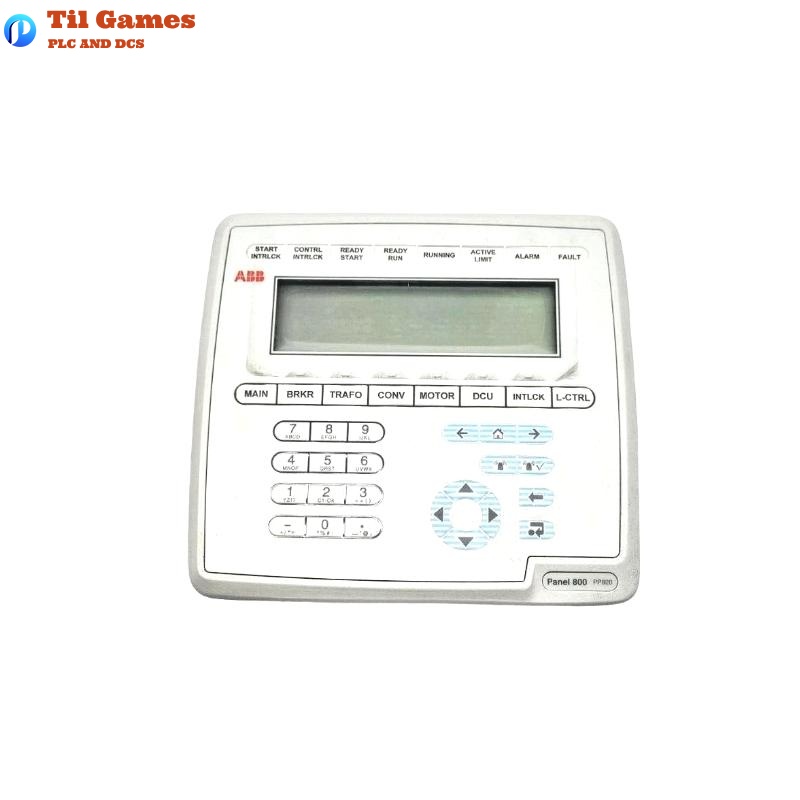

ABB PP820 3BSE042243R1 Panel 800 Operator Panel

Frequently Asked Questions (FAQ)

Q1: Does the panel support multiple communication interfaces?
A1: Yes, the PP820 features RS232, RS422/RS485, USB, and Ethernet ports.

Q2: Is the touchscreen supported, and what is its durability?
A2: Yes, it uses an Autotex F157 overlay rated for up to 1 million operations.

Q3: What is the operating temperature range of the panel?
A3: 0 to +50°C when installed vertically, 0 to +40°C when installed horizontally.

Q4: What input voltage does the panel require?
A4: The required supply is +24V DC, acceptable range from 20V to 30V DC.

Q5: Is the panel protected against dust and water?
A5: Yes, it has IP66 protection at the front and IP20 at the rear.

Q6: Does it include a real-time clock and what is the battery life?
A6: It includes a real-time clock powered by a CR2450 battery, minimum life of 3 years.

Q7: What is the display resolution and viewing area size?
A7: The resolution is 240×64 pixels, and the viewing area is 127.0 x 33.8 mm.

Q8: What is the installation depth requirement?
A8: The depth is 57 mm; total installation clearance recommended is 157 mm.
