Technical Specifications
| Parameter | Description |
|---|---|

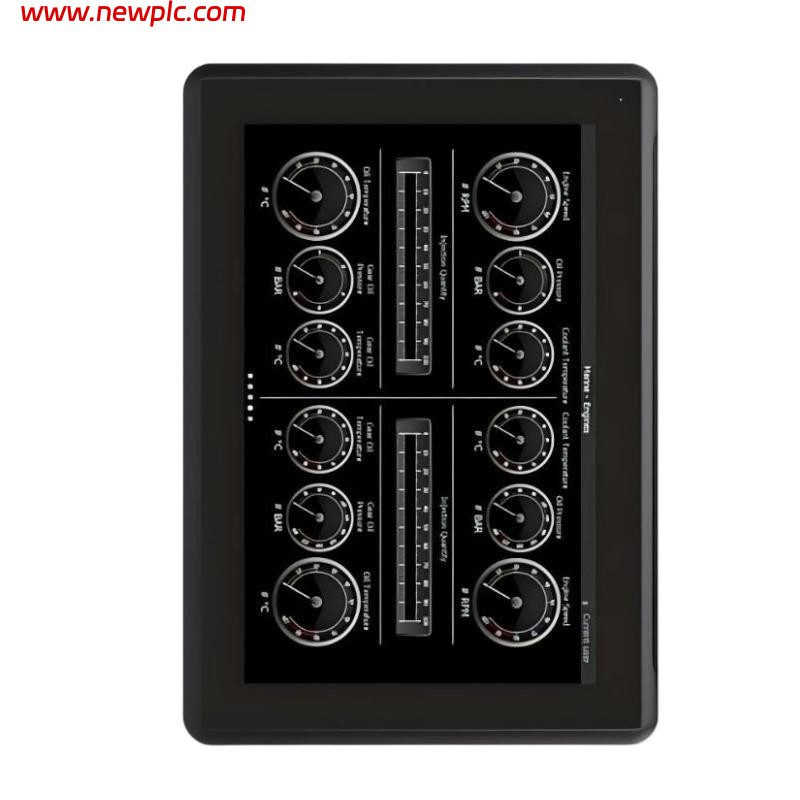

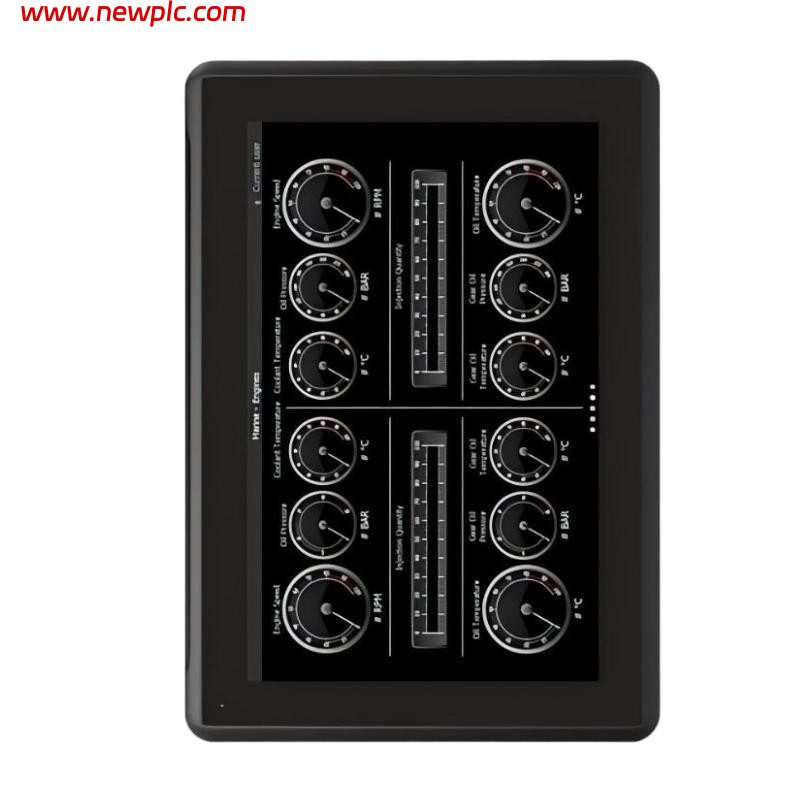

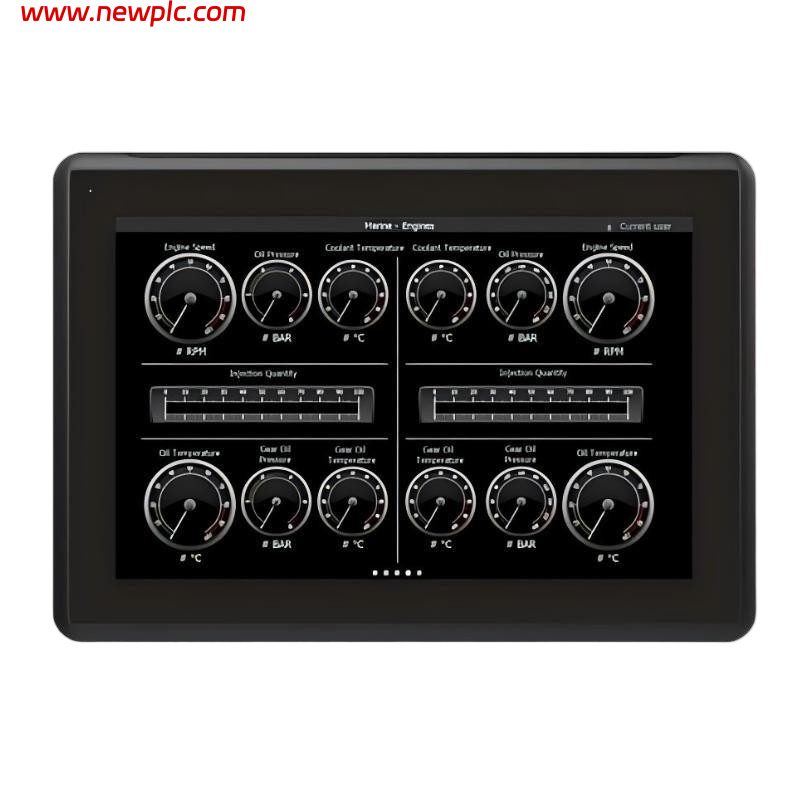

| Product Name | ABB PP886M |
| Part Number | 3BSE092984R1 |
| Product Type | Panel 800 Operator Panel (HMI / Standard Black Series) |
| Manufacturer | ABB |
| Series | Panel 800 |
| Function | Human-Machine Interface (HMI) for monitoring, visualization, and control of industrial automation systems |
| Application | PLC / DCS systems (ABB AC800M, 800xA), process automation, machine control |
| Display Size | 15.4 inch TFT LCD |
| Resolution | 1280 × 800 (WXGA) |
| Brightness | 450 cd/m² |
| Touch Type | Resistive touchscreen |
| Processor | ARM9 (1 GHz) |
| Memory | 1 GB RAM |
| Storage | 1 × SD card slot (application storage via SD/SDHC) |
| Communication Ports | 2 × Ethernet (10/100 Mbps), RS232, RS422/485, RS485 |
| USB | 2 × USB Host 2.0 |
| Power Supply | 24 VDC (18–32 VDC) |
| Power Consumption | ~31.2 W |
| Mounting Type | Panel mount |
| Protection Rating | Front IP65 / Rear IP20 |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5–85% RH non-condensing |
| Frame Material | Powder-coated aluminum (industrial enclosure) |
| Certification | CE, UL, DNV, marine approvals (varies by configuration) |
| Parameter | Description |
|---|---|
| Dimensions (W × H × D) | 410 × 286 × 61 mm |
| Weight | Approx. 3.85 kg |
FAQ
FAQ
Q1: What is ABB PP886M (3BSE092984R1)?
A1: It is a 15.4-inch Panel 800 series HMI used for industrial monitoring and control.
Q2: Is PP886M a PLC or HMI?
A2: It is an HMI (operator panel), not a PLC.
Q3: What systems does it support?
A3: It is commonly used with ABB AC800M and System 800xA platforms.
Q4: What is the display size and resolution?
A4: 15.4-inch display with 1280 × 800 resolution.
Q5: What is its brightness level?
A5: 450 cd/m².
Q6: What communication interfaces does it have?
A6: Ethernet, RS232, RS422/485, RS485, and USB ports.
Q7: What are the physical dimensions?
A7: 410 × 286 × 61 mm.
Q8: What is its weight?
A8: Approximately 3.85 kg.
