Technical Specifications
| Parameter | Description |
|---|---|

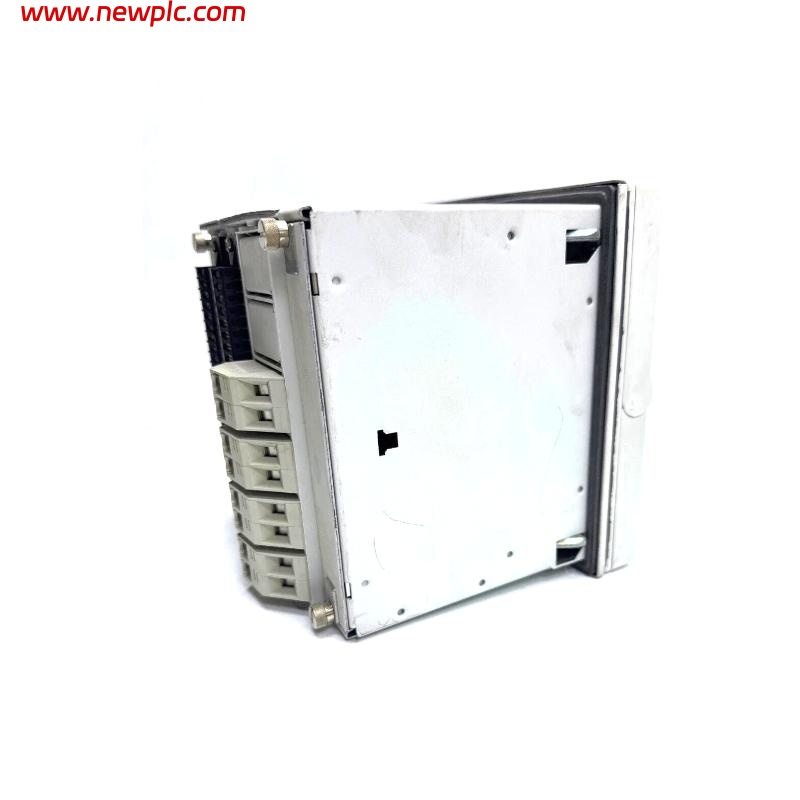

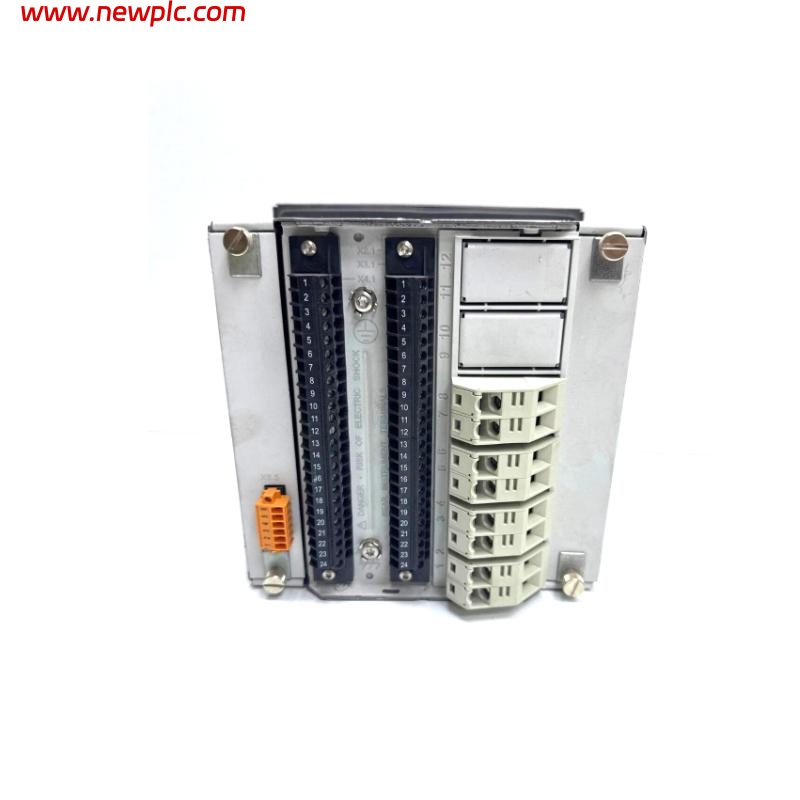

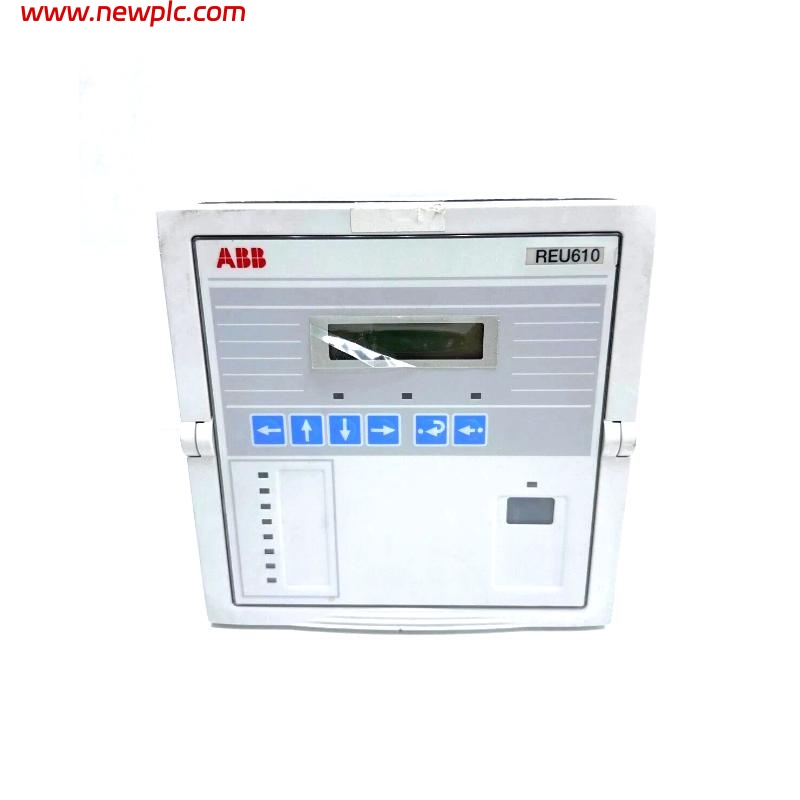

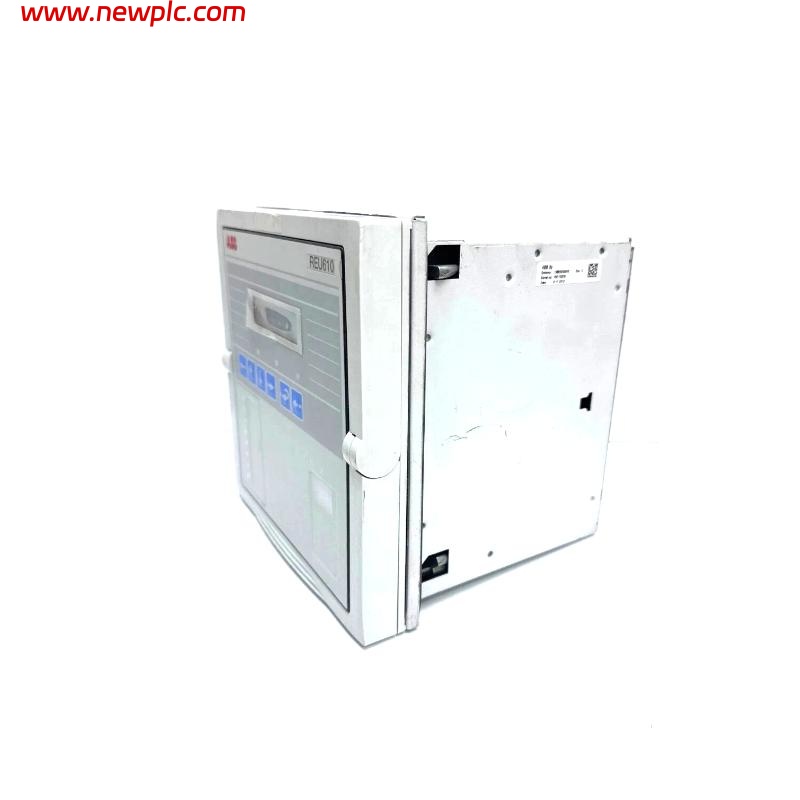

| Product Name | ABB REU610 Voltage Relay |
| Protection Functions | Overvoltage (U>, U>>), Undervoltage (U<, U<<), Residual Overvoltage (U0>, U0>>), Circuit-breaker Failure (CBFP), Lockout |
| Rated Voltage | 100/110/115/120 V (user-selectable) |
| Rated Frequency | 50/60 Hz (user-selectable) |
| Voltage Inputs | 3 × phase-to-phase + 1 × residual voltage input |
| Digital Inputs | 2 + 3 optional galvanically isolated |
| Output Contacts | 3 × power outputs, 2 × signal outputs, 3 × optional signal outputs |
| Display | 2 × 16 character LCD with backlight |
| LEDs | 3 fixed + 8 programmable red indicator LEDs |
| Communication Interfaces | Optical front port, rear: SPA-bus / Modbus / IEC 60870-5-103 / DNP 3.0 |
| Communication Medium | Plastic/glass fiber-optic or RS-485 (depends on module) |
| Disturbance Recorder | 4 analog channels, 8 digital signals, 80 sec recording |
| Memory | Non-volatile for settings, event logs, last 5 event records |
| Self-Supervision | Full relay hardware/software diagnostic with IRF contact output |
| Battery | Backup for RTC; life ~5 years |
| Mounting | Panel or flush-mount |
| Environmental Temperature | -10°C to +55°C (operating), -40°C to +85°C (storage/transport) |
| Dimensions | 177 × 177 × 149.3 mm |
| Weight | 3.5 kg |
FAQ
FAQ
Q1: What protection functions are supported by the ABB REU610?
A1: It supports overvoltage protection, undervoltage protection, residual overvoltage protection, circuit-breaker failure protection, and trip lockout.
Q2: Which communication protocols are available on the REU610?
A2: Supported protocols include Modbus (RTU/ASCII), IEC 60870-5-103, SPA-bus, and DNP 3.0.
Q3: What is the function of the display panel?
A3: The LCD display provides access to parameter settings, alarm indications, and operating status.
Q4: How does the relay record faults or events?
A4: It includes a built-in disturbance recorder with up to 80 seconds of recording time for 4 analog and 8 digital signals.
Q5: Does the relay have self-monitoring capabilities?
A5: Yes, the REU610 features a full self-supervision system that detects internal faults and provides indication through LEDs and IRF output.
Q6: Will data be lost during a power outage?
A6: No, all configuration data, event logs, and recent event records are stored in non-volatile memory and preserved even without power.
Q7: Is remote and local communication supported?
A7: Yes, it supports local communication via a front optical port and remote system integration through rear communication modules.
Q8: What typical applications is the REU610 suitable for?
A8: It is suitable for voltage supervision in medium-voltage networks, and for protection of generators, motors, and transformers.
