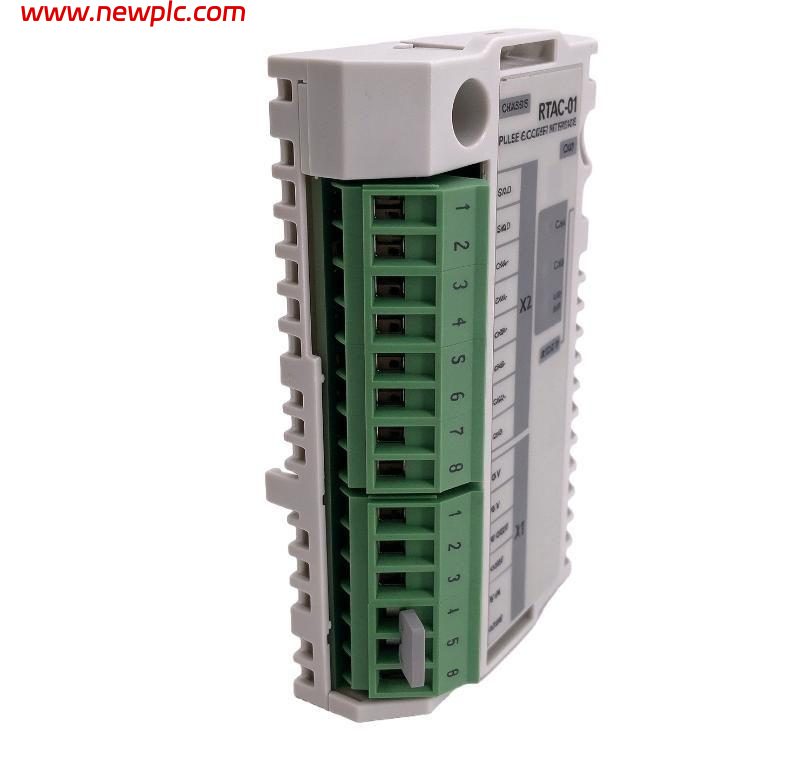

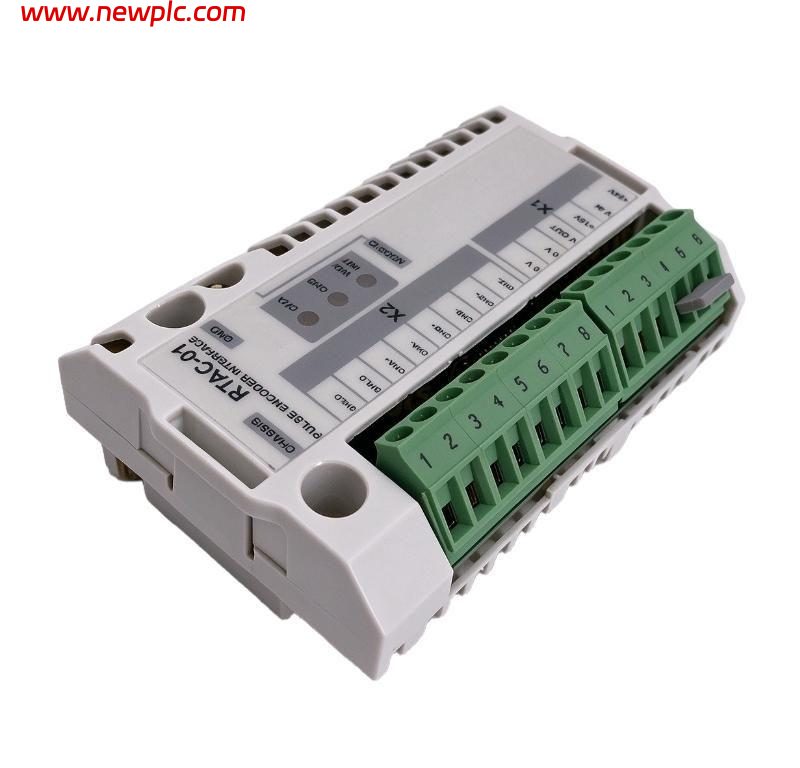

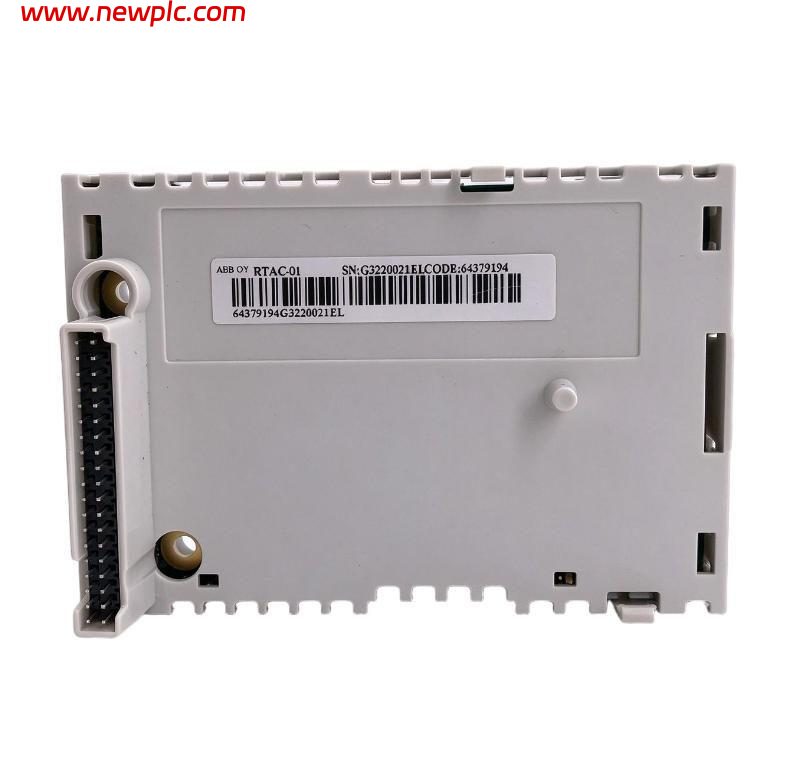

ABB RTAC-01 3ABD64610805 Pulse Encoder Interface Module

FAQ

Q1: What is the ABB RTAC-01?
A: It is a pulse encoder interface module for ABB drive systems, providing encoder feedback for speed and position control.

Q2: What is the ABB part number?
A: The product number is 3ABD64610805, with type designation RTAC-01.

Q3: What type of encoder signals does it support?
A: It supports both differential and single-ended pulse encoder signals through CH A, CH B and CH Z channels.

Q4: What is the maximum input frequency?
A: The maximum encoder input frequency is 200 kHz.

Q5: What encoder supply voltages are available?
A: The module can provide selectable +15 V DC or +24 V DC encoder power, with up to 5 W output power.

Q6: Which ABB drives can use the RTAC-01?
A: It is designed for ABB ACS600/ACS800 drive applications and installs into the drive’s option slot or can be used with an AIMA-01 adapter.

Q7: What is the protection rating?
A: The RTAC-01 has an IP20 protection rating.

Q8: What are the dimensions and weight?
A: The ABB product data lists dimensions of 115 × 165 × 0.4 mm and a net weight of 0.1 kg.

3ABD64610805 ABB RTAC-01
