Technical Specifications
| Item | Specification |
|---|---|

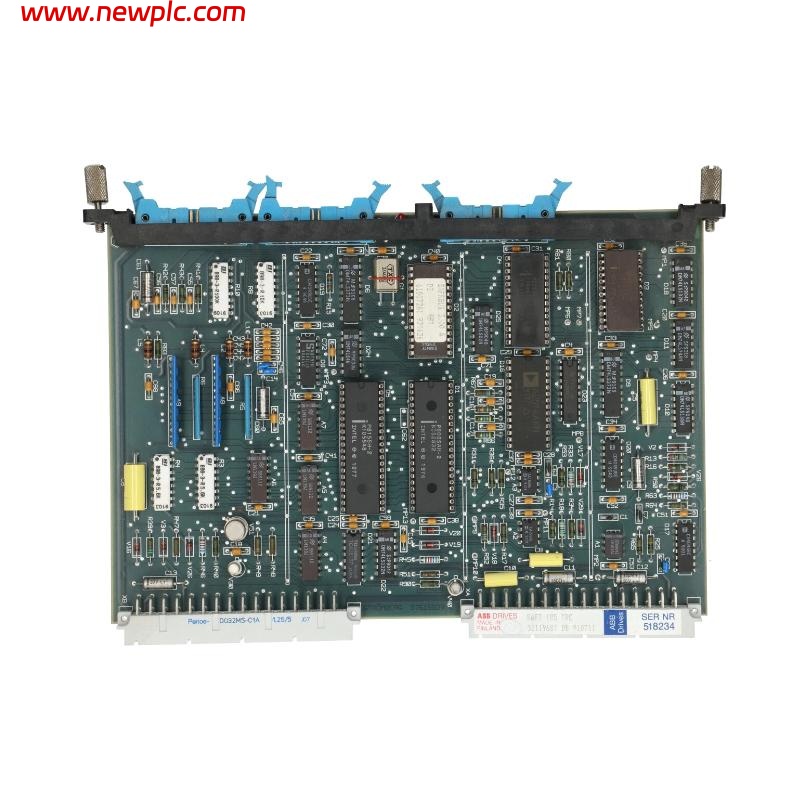

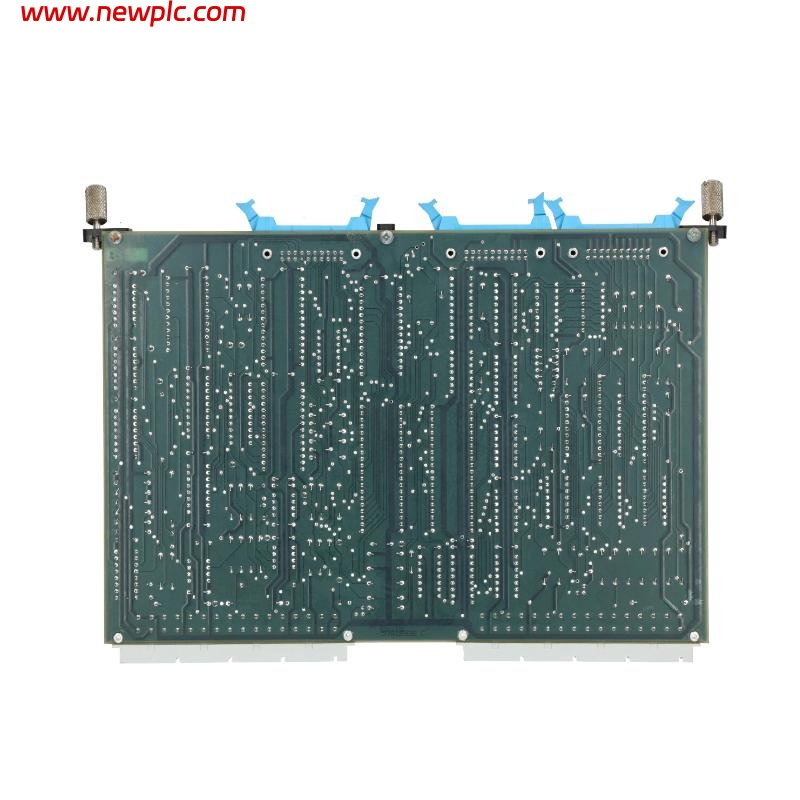

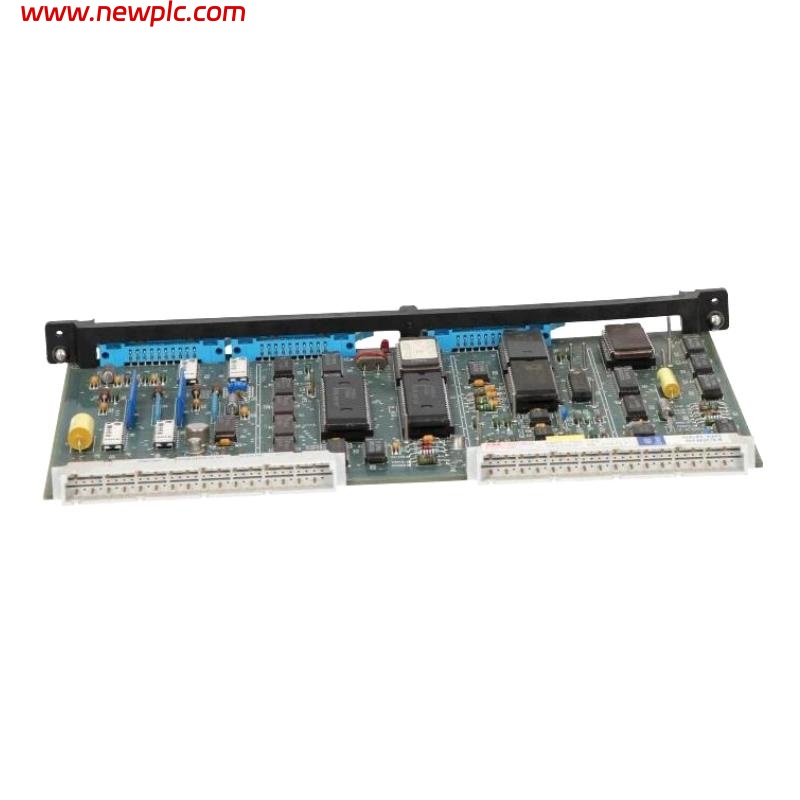

| Product Model | ABB SAFT 185 TBC |
| Part Number | 58119687 |
| Product Name | Circuit Board |
| Type | Control and signal processing circuit board |
| Function | Used for signal acquisition, transmission, and logic control in industrial automation systems |
| Compatible System | ABB Bailey INFI 90 Control System |
| Power Supply | 5 VDC / ±15 VDC (typical) |
| Signal Interface | Multi-channel input/output supporting both digital and analog signals |
| Communication Interface | Connects to system main controller via backplane bus |
| Mounting Method | Rack-mounted (plug-in type) |
| Material | Industrial-grade fiberglass PCB, moisture and vibration resistant |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 (for installation inside control cabinet) |
| Dimensions | 150 × 120 × 30 mm |
| Weight | 0.34 kg |
| Typical Use | Provides interface support for control logic and communication modules in process control and monitoring applications |
FAQ
FAQ
Q1: What is the main function of the ABB SAFT 185 TBC (58119687)?
A1: It is used in the ABB Bailey INFI 90 system for signal acquisition, logic control, and system communication.
Q2: What type of module is it?
A2: It is a signal processing and logic control circuit board for industrial automation systems.
Q3: How is this circuit board installed?
A3: It is designed for rack-mounted installation using a plug-in slot configuration.
Q4: What are the power supply requirements?
A4: It operates typically on 5 VDC and ±15 VDC power supplies.
Q5: What is the operating temperature range?
A5: The operating temperature range is 0°C to +70°C.
Q6: Does it have any protective features?
A6: It has a basic IP20 protection rating and should be installed inside a control cabinet.
Q7: What are its dimensions and weight?
A7: The dimensions are 150 × 120 × 30 mm, and the weight is 0.34 kg.
Q8: In which industries is this product typically used?
A8: It is widely used in power generation, petrochemical, metallurgical, and process control industries.
