Technical Specifications
| Item | Description |
|---|---|

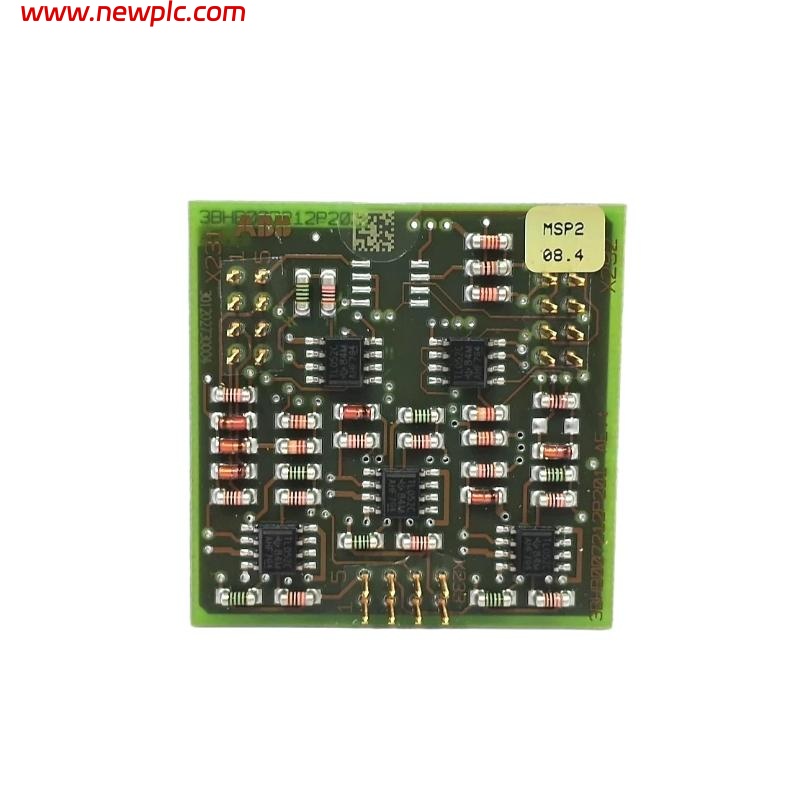

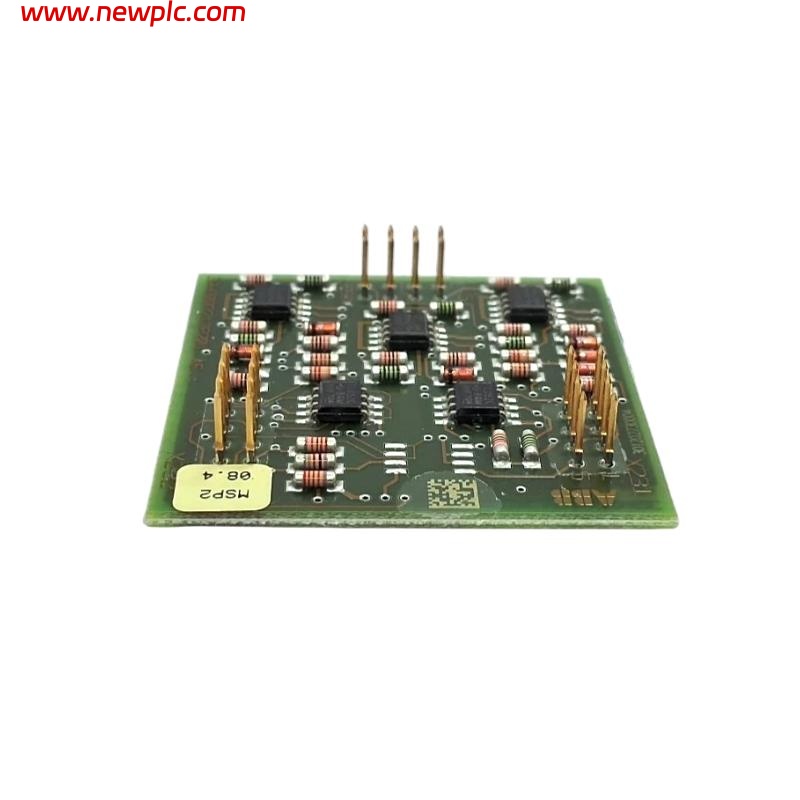

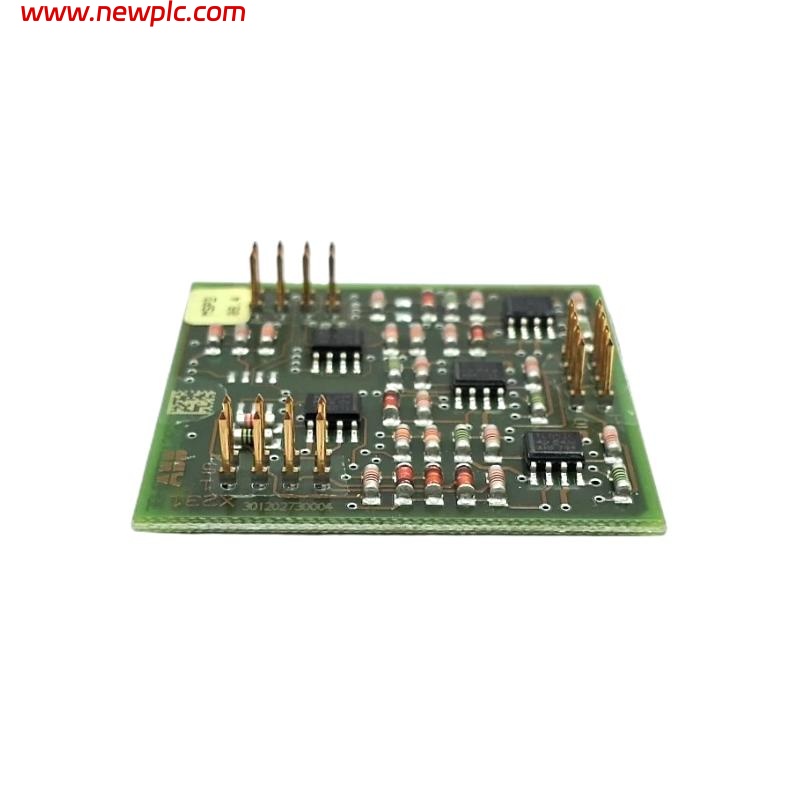

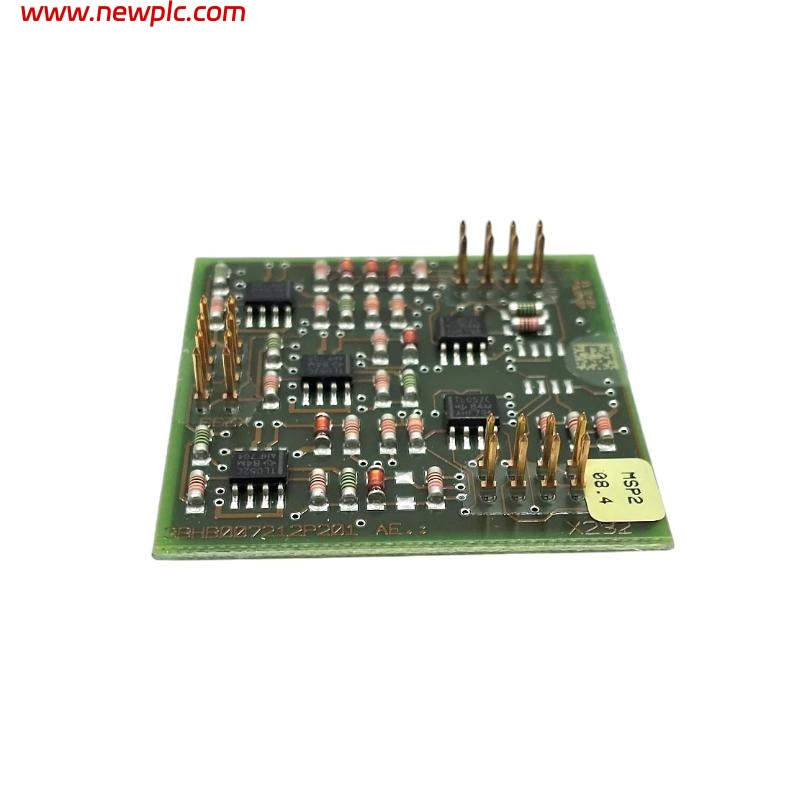

| Product Model | ABB SCA 6823A, XV C723 AE07 3BHB002953R0107 |
| Product Type | Current Measuring Instrument |
| Manufacturer | ABB |
| Measuring Range | Up to 20 A RMS |
| Input Type | Current input with high-accuracy sensing circuit |
| Output Type | Analog output for control and monitoring |
| Accuracy | ±0.5% of full scale |
| Response Time | < 10 ms |
| Isolation Voltage | 2.5 kV RMS (input to output) |
| Power Supply | 24 V DC nominal |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DIN Rail or Panel Mount |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Protection Class | IP20 |
| Compliance | CE, RoHS certified |
FAQ
FAQ
Q1: What is the main function of this current measuring instrument?
A1: It is used to accurately measure AC or DC current signals in industrial systems and transmit the data to control equipment.
Q2: What types of signal inputs does this product support?
A2: It supports standard current input ranges such as 0–5 A or 0–20 A, suitable for diverse industrial environments.
Q3: Does the instrument provide electrical isolation?
A3: Yes, it offers 2500 V RMS isolation between input and output to ensure system safety and signal stability.
Q4: Does this device require an external power supply?
A4: Yes, it operates with a 24 V DC power supply.
Q5: What are the suitable operating conditions for this instrument?
A5: It operates reliably in environments from 0°C to +60°C and complies with IP20 protection standards.
Q6: How is this current measuring instrument installed?
A6: It can be easily mounted on a DIN rail or installed on a panel.
Q7: Is the product certified?
A7: Yes, it is CE and RoHS certified, ensuring compliance with international standards.
Q8: How does this model differ from other ABB current measuring instruments?
A8: The SCA 6823A, XV C723 AE07 model offers higher precision and faster response, ideal for dynamic load monitoring.
