Technical Specifications
| Parameter | Specification |
|---|---|

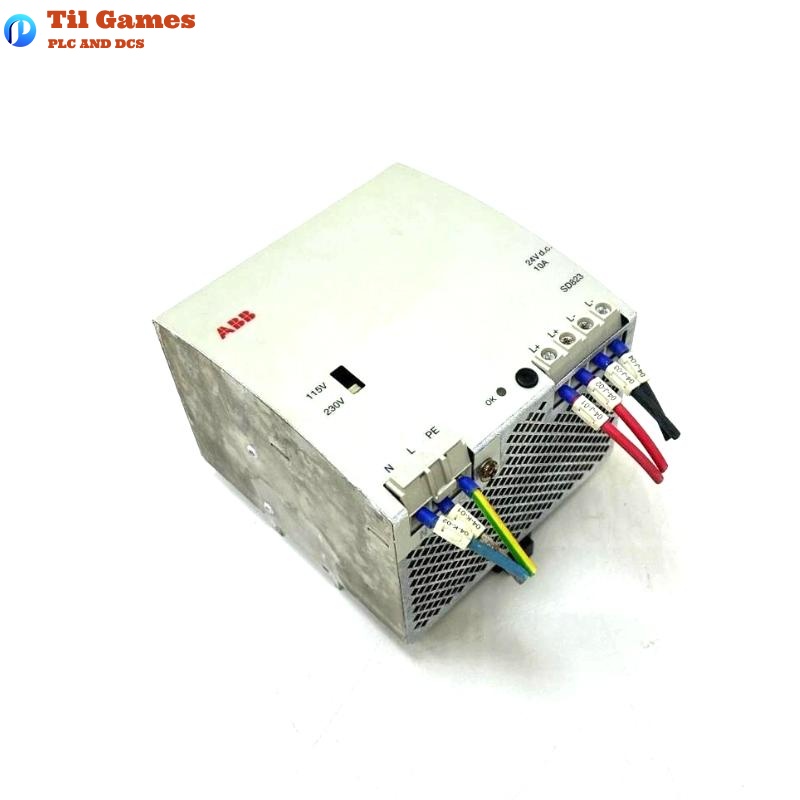

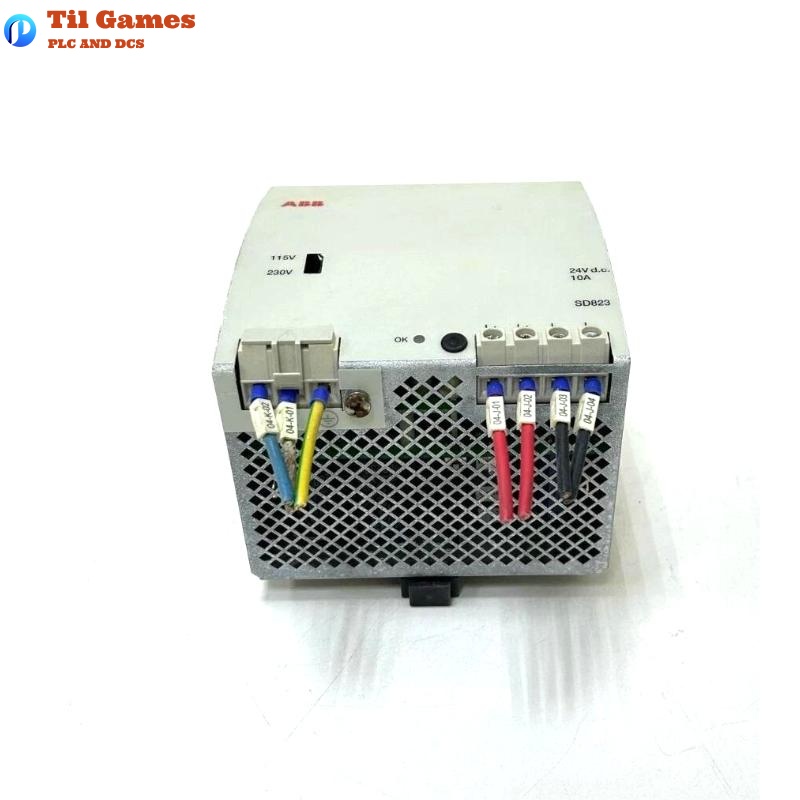

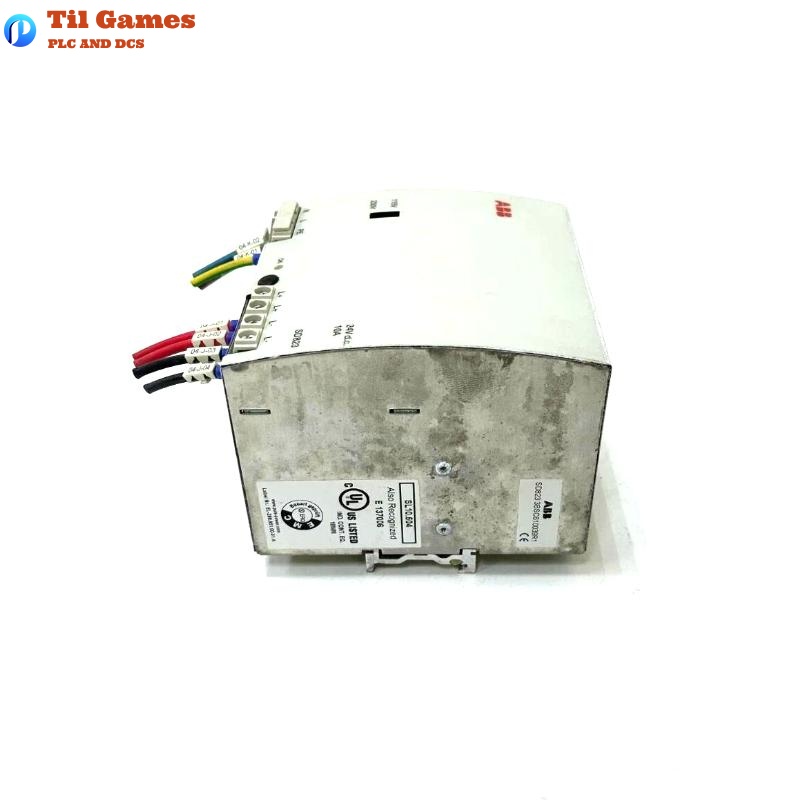

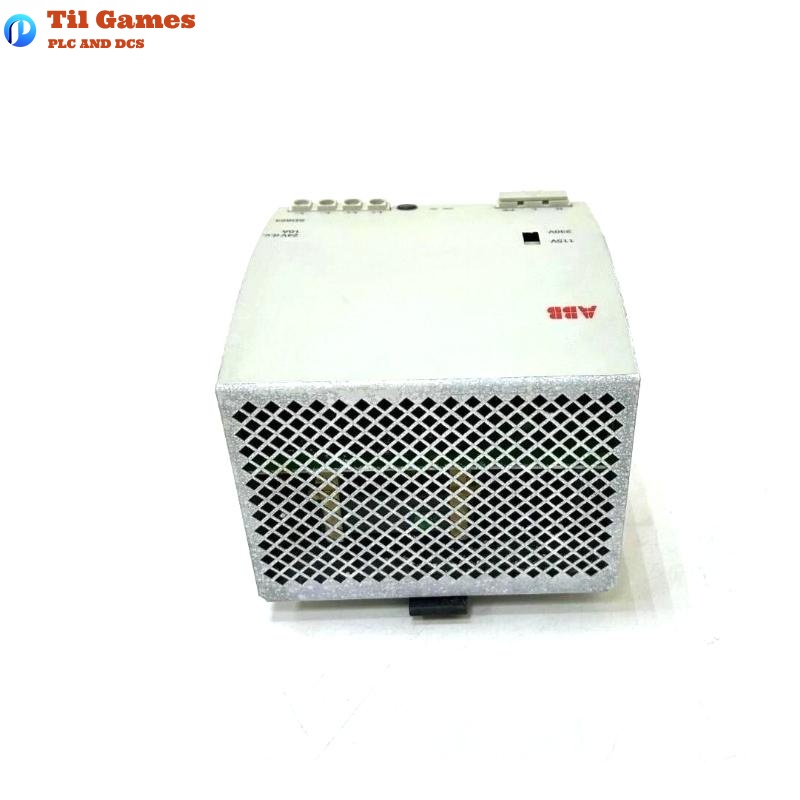

| Model Number | SD823 |
| Ordering Code | 3BSC610039R1 |
| Product Type | Power Supply Module |
| Output Voltage | 24 V DC |
| Input Voltage Range | 90–264 V AC or 110–350 V DC |
| Output Power | 60 W |
| Output Current | 2.5 A at 24 V DC |
| Efficiency | Typically 87% |
| Operating Temperature | –25°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Cooling | Natural convection |
| Mounting | DIN rail (35 mm, TS35) |
| Protection Class | IP20 |
| Certifications | CE, UL, CSA, TUV |
| Dimensions (W x H x D) | 120 x 125 x 110 mm |
| Weight | 1.1 kg |
FAQ
FAQ
Q1: What is the primary function of the ABB SD823 module?
A1: The SD823 is a 24V DC power supply module used in ABB’s AC 800M systems, supplying power to ModuleBus and communication interfaces.
Q2: What is the typical output voltage of the SD823?
A2: The output is a regulated 24V DC, capable of delivering up to 2.5 A current.
Q3: What input voltage ranges does it support?
A3: The module supports a wide range: 90–264V AC or 110–350V DC, suitable for industrial environments.
Q4: What kind of environments is it suitable for?
A4: It operates in –25°C to +70°C, with natural convection cooling and DIN-rail mounting inside control cabinets.
Q5: Does the SD823 include overload protection?
A5: Yes, it includes built-in overload, overvoltage, and short-circuit protection to ensure safe operation.
Q6: What certifications does the module have?
A6: The SD823 is certified with CE, UL, CSA, and TUV, complying with global safety standards.
Q7: Is hot-swapping supported by this module?
A7: No, the SD823 does not support hot-swapping. Power must be disconnected before replacement.
Q8: How does SD823 differ from SD821 and SD822?
A8: While all are 24V DC power supplies, the SD823 offers enhanced reliability, ideal for critical or redundant power scenarios.
