Technical Specifications
| Parameter | Description |
|---|---|

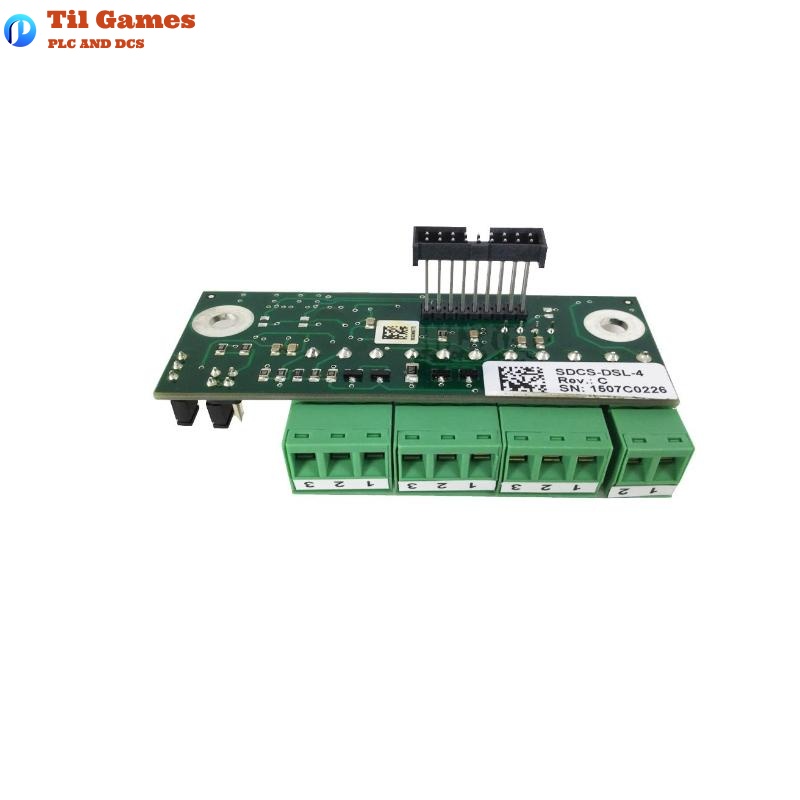

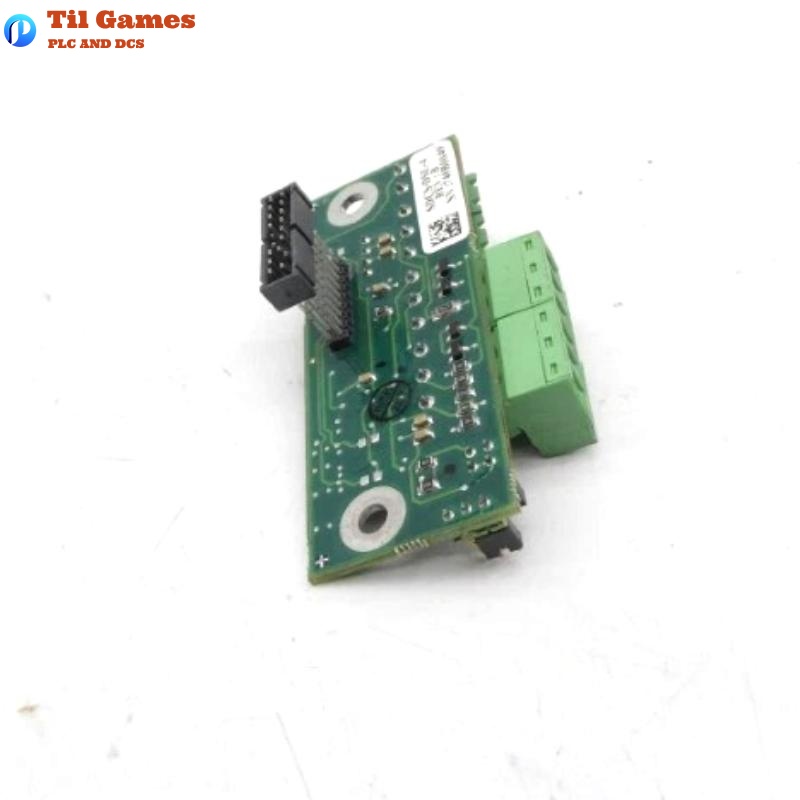

| Model | SDCS-DSL-4 |
| Part Number | 3ADT200005R0001 |
| Function | DCSLink interface board for communication between drives and field exciters |
| Compatible Controller Board | SDCS-CON-4, plugged into connector X8 |
| Communication Type | DCSLink (CAN-based communication) |
| Supported Applications | External field exciter connection, master-follower, 12-pulse, drive-to-drive |

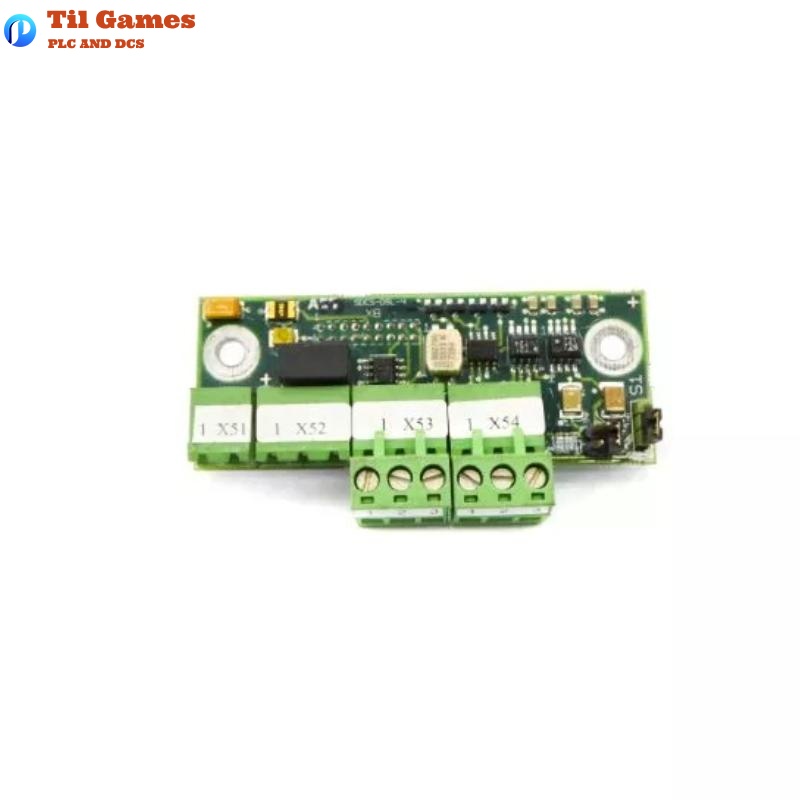

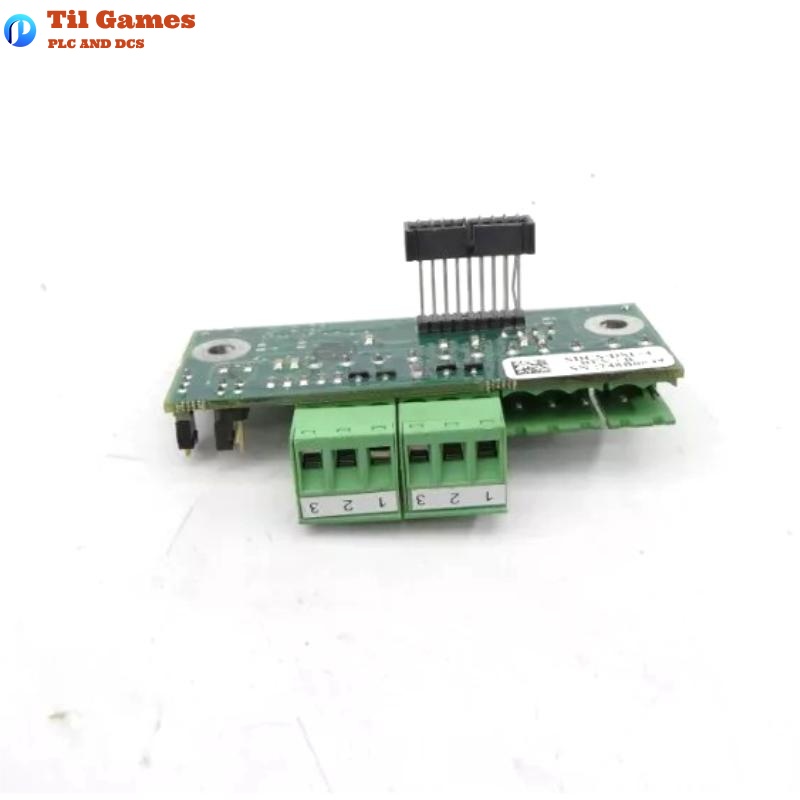

| Connector X51 | 24 VDC output for field exciters (max 250 mA, short-circuit protected) |
| Connectors X52/X53 | DCSLink ports, parallel connection supported |
| Connector X54 | Not used |
| Jumper S1 | Bus termination selection |
| Jumper S2 | Ground termination (direct or RC network) |
| Cable Type | Shielded twisted pair with 24 VDC lines |
| Cable Length | 0.54 m to 20 m (available from ABB) |
| Dimensions | 73 x 40 x 20 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What is the function of the SDCS-DSL-4 board?
A1: It serves as a communication interface via DCSLink for field exciters, master-follower, 12-pulse setups, and inter-drive communication.
Q2: Where is the SDCS-DSL-4 board installed?
A2: It is installed into connector X8 on the SDCS-CON-4 board.
Q3: What voltage does connector X51 supply?
A3: It supplies 24 VDC with a maximum of 250 mA, suitable for external field exciters.
Q4: What do connectors X52 and X53 support?
A4: These are DCSLink connectors and can be used in parallel to connect separate cables.
Q5: Is connector X54 used for any function?
A5: No, connector X54 is currently unused.
Q6: What is the purpose of jumper S1?
A6: Jumper S1 sets the bus termination, essential at the physical ends of the DCSLink bus.
Q7: What is the recommended cable for DCSLink?
A7: A shielded twisted pair cable that also includes lines for 24 VDC power supply.
Q8: What is the typical use of the SDCS-DSL-4 in a drive system?
A8: It enables reliable communication and synchronization between multiple DC drives and exciters.
