Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-FEX-4 3ADT209022R0001 |

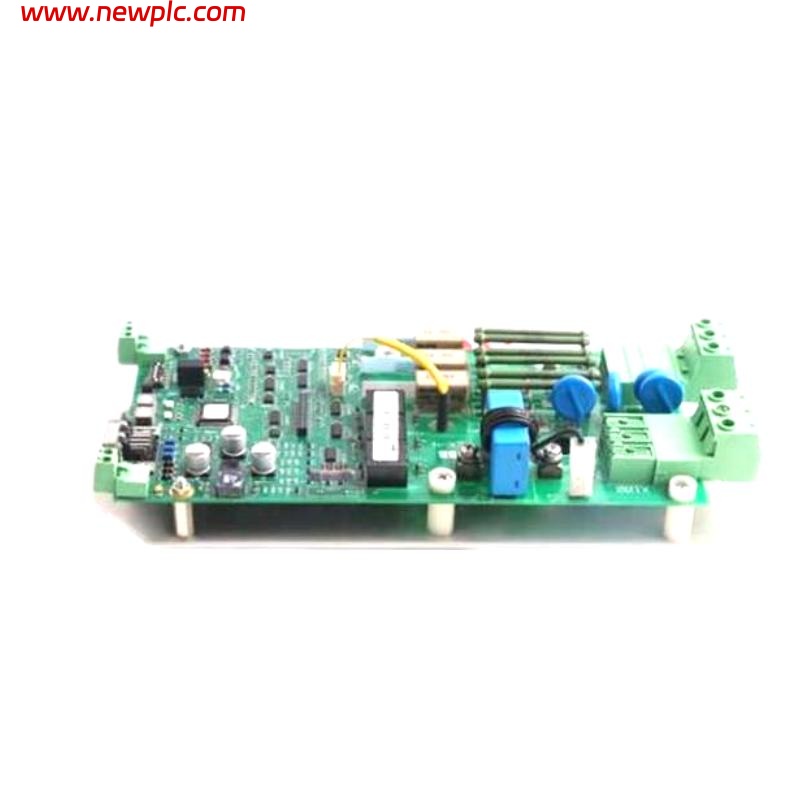

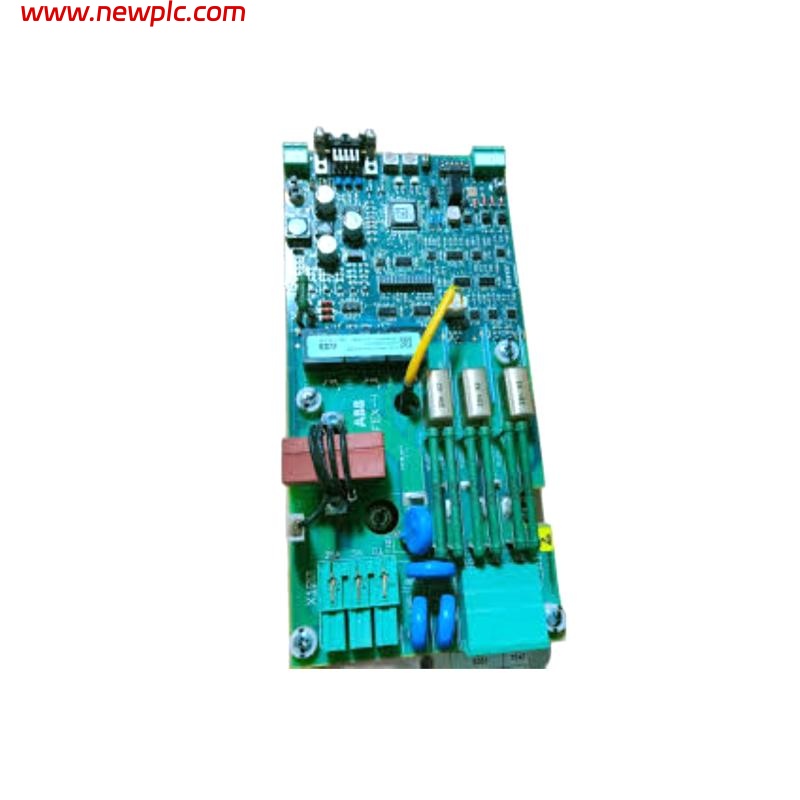

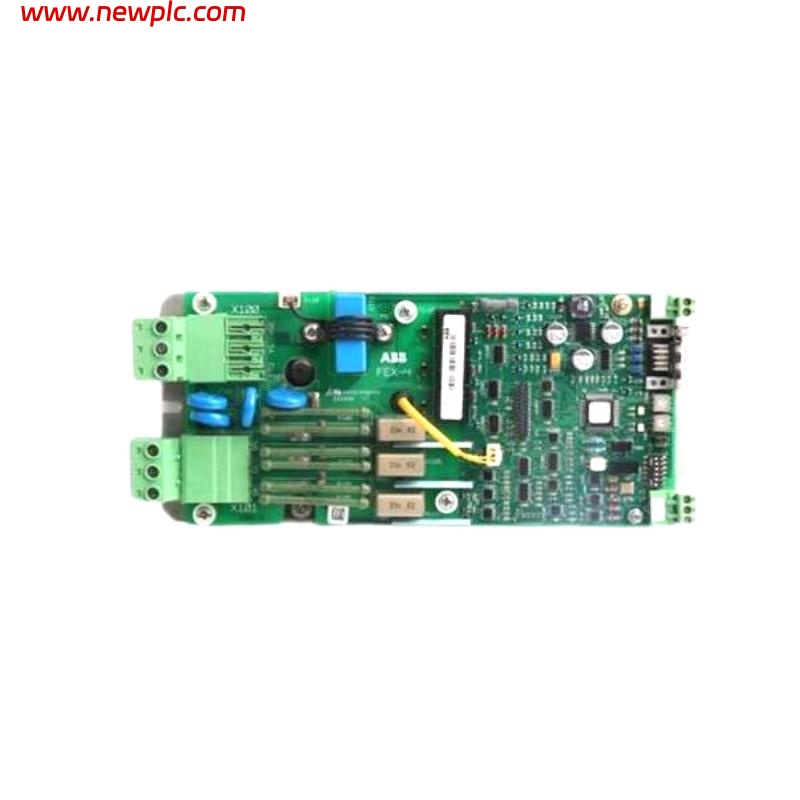

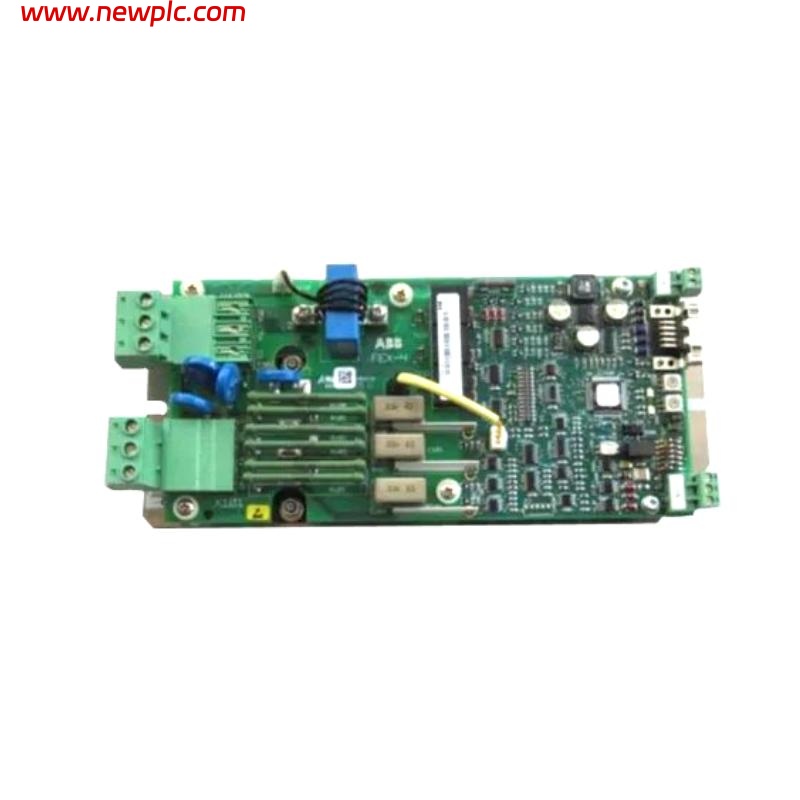

| Type | DC Speed Regulator Excitation Module |
| Input Voltage | 24V DC / 110V DC optional |
| Output Current | 0–10 A |
| Response Time | ≤50 ms |
| Control Method | Analog voltage control |
| Communication Interface | Profibus / Modbus optional |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Dimensions (mm) | 100 x 50 x 20 mm |
| Weight (kg) | 0.66 kg |
| Mounting Method | DIN rail / Panel mounting |
| Compatible Systems | ABB DC drives and power regulation systems |
FAQ
FAQ
-
Q1: Which DC drives are supported by this module?
A1: Supports all standard ABB DC drives, particularly the SDCS series control systems. -
Q2: Is the output current adjustable?
A2: Yes, the output current can be adjusted via an analog control signal, ranging from 0–10 A. -
Q3: Can it be used in high-temperature environments?
A3: Yes, the operating temperature range is -20°C to +60°C, with proper ventilation. -
Q4: Does the module support remote monitoring?
A4: Yes, it can be monitored and controlled via Profibus or Modbus interfaces. -
Q5: How does the module protect against short circuits?
A5: It has built-in overcurrent and short-circuit protection, automatically limiting output to protect connected equipment. -
Q6: What is the module’s response time?
A6: ≤50 milliseconds, suitable for fast dynamic control. -
Q7: Can multiple modules be used in parallel?
A7: Yes, parallel operation is possible through the bus interface, if system design permits. -
Q8: What should be considered during installation?
A8: Ensure the module is securely mounted on a DIN rail or panel, avoid moisture and dust, and follow proper electrical wiring standards.
