Technical Specifications
| Parameter | Specification |
|---|---|

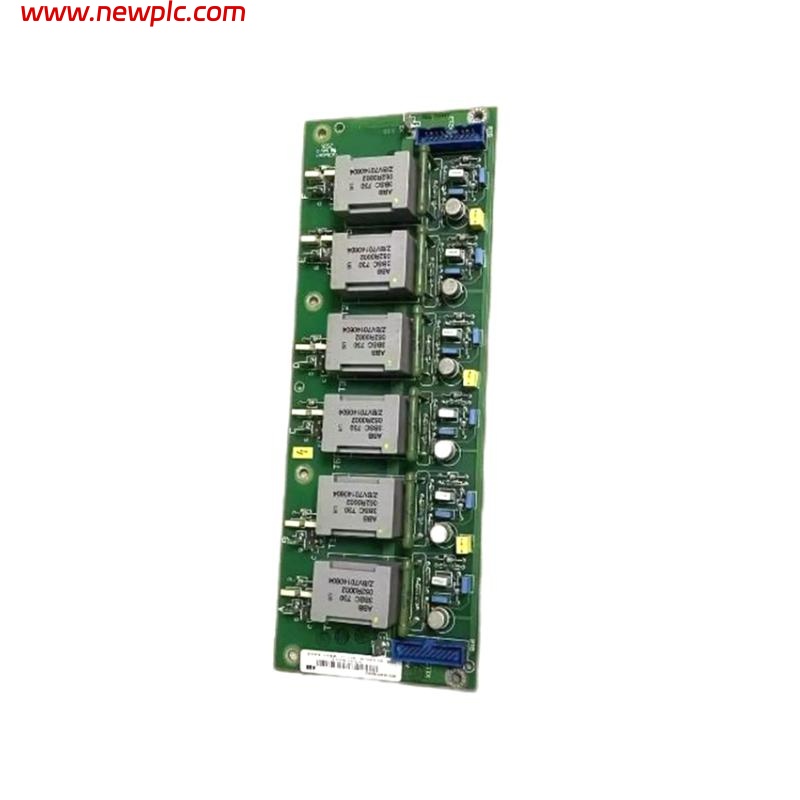

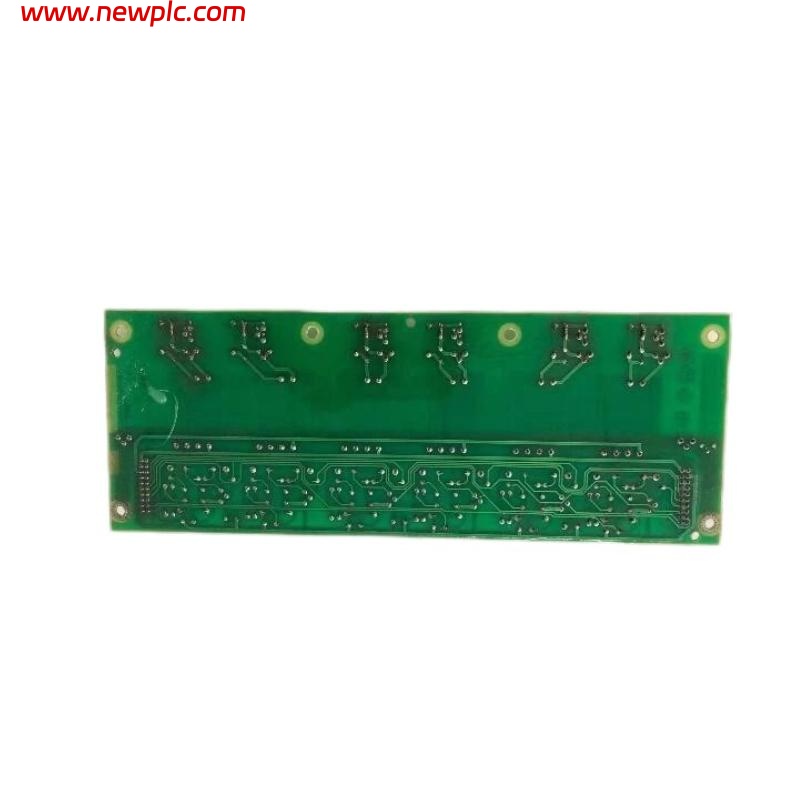

| Product Model | ABB SDCS-PIN-H41 |
| Product ID | 3ADT320600R1501 |
| Product Type | Pulse Interface Board |
| Compatible Drive Series | ABB DCS800 DC Drives |
| Main Function | Provides pulse input interface and signal processing for drive control |
| Signal Type | Digital pulse signals from encoder or tachometer |
| Input Voltage | 24 V DC signal interface |
| Communication | Internal connection to drive control board |
| Installation Type | Plug-in control board |
| Cooling Method | Passive cooling through internal drive airflow |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Protection Class | Depends on drive enclosure (typically IP20) |
| Mounting Location | Installed inside the drive control section |
| Dimensions (H × W × D) | Approximately 160 × 100 × 30 mm |
| Weight | Approximately 0.30 kg |
| Compliance Standards | CE, RoHS |
FAQ
FAQ
Q1. What is the function of the SDCS-PIN-H41 board?
The SDCS-PIN-H41 is a pulse interface board used in ABB DC drives to process encoder or tachometer signals for accurate motor speed and position feedback.
Q2. Which drive systems are compatible with this board?
This module is designed for use with ABB DCS800 series DC drive systems.
Q3. What types of signals does the board handle?
The board processes digital pulse signals generated by feedback devices such as incremental encoders or tachometers.
Q4. Does the SDCS-PIN-H41 require a separate power supply?
No. It receives its operating power directly from the internal power system of the drive.
Q5. Where is the board installed within the drive?
It is mounted inside the control section of the drive and connected to the main control board through internal connectors.
Q6. Can the board be replaced if it becomes faulty?
Yes. The module is designed as a replaceable spare part and can be exchanged during maintenance or repair.
Q7. Does the module require additional cooling?
No additional cooling is necessary because the board uses the airflow within the drive enclosure for heat dissipation.
Q8. What precautions should be taken when installing or replacing the board?
The drive must be fully powered down before installation, and proper electrostatic discharge protection should be used to protect the electronic components.
