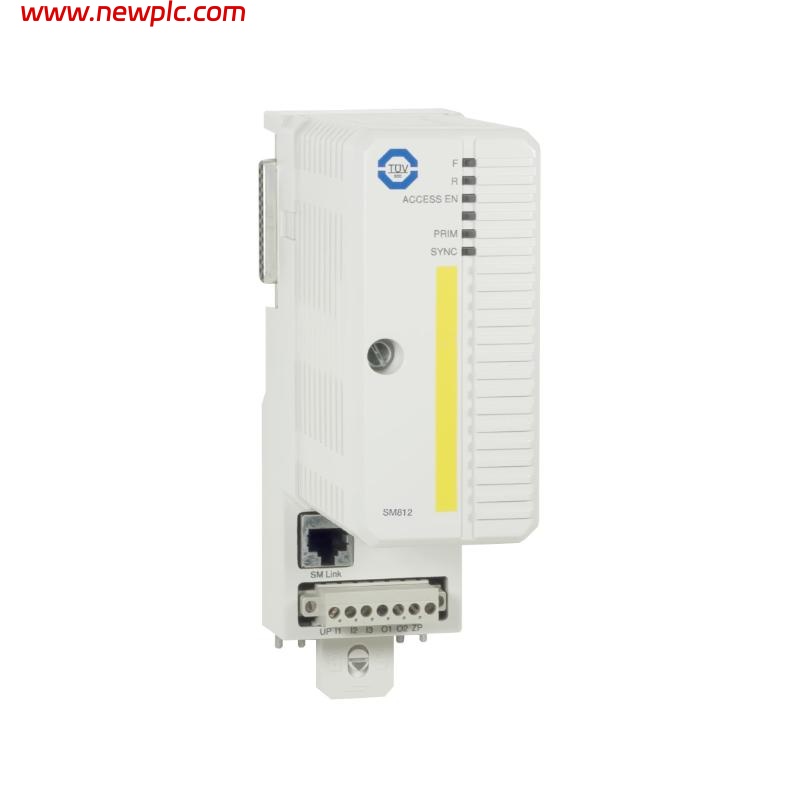

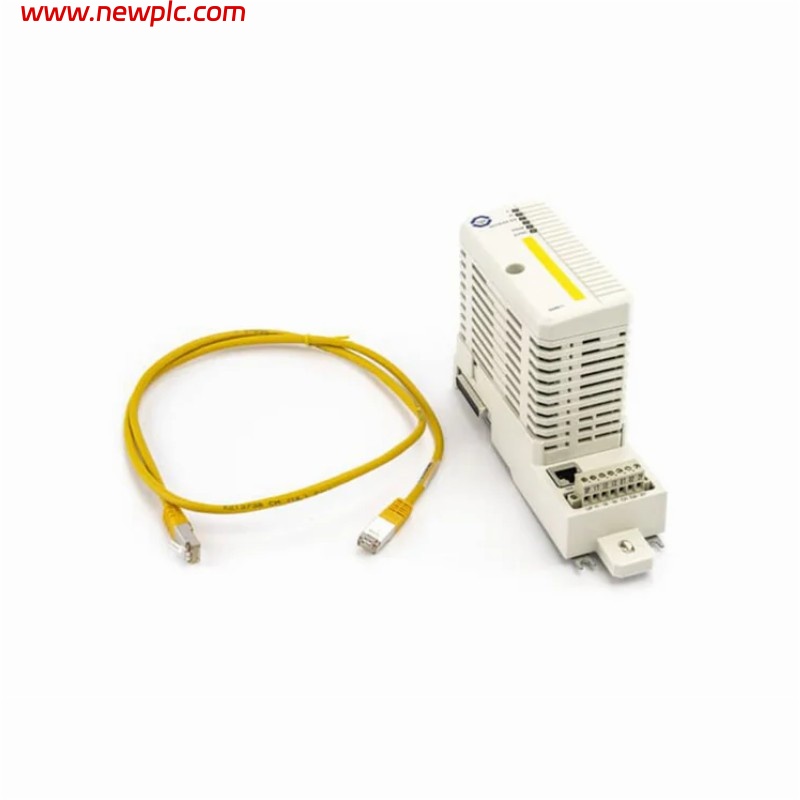

Technical Specifications
| Parameter | Value |
|---|---|
| Article Number | 3BSE072270R1 |
| Processor Type | MPC866 |
| Clock Frequency | 133 MHz |
| RAM | 64 MB |
| Flash PROM for Firmware Storage | 4 MB |
| Power Supply | 24 V DC (19.2–30 V DC) |
| Power Consumption (typ/max) | 160 / 250 mA |
| Power Dissipation | 3.8 W |
| Switch-over Time in Redundant Config | Max 10 ms |
| Operating Temperature | +5 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5–95%, non-condensing |
| Vibration Resistance | 0.0375 mm / 0.5 g / 0.2 g (as per frequency ranges) |
| Protection Class | IP20 |
| Isolation Voltage | 500 V AC |
| Dimensions (W × H × D) | 59 × 186 × 127.5 mm |
| Weight | 0.7 kg |
| Redundancy Support | Yes |
| SIL Level Supported | SIL1–SIL3 (with PM867, PM863, PM857 in 1oo2 configuration) |
| Certifications | CE, TUV, RoHS, WEEE, Marine (ABS, BV, DNV-GL) |
| Emission & Immunity | EN 61000-6-4, EN 61000-6-2 |
| Hazardous Location Rating | cULus Class 1, Zone 2 |
FAQ
FAQ

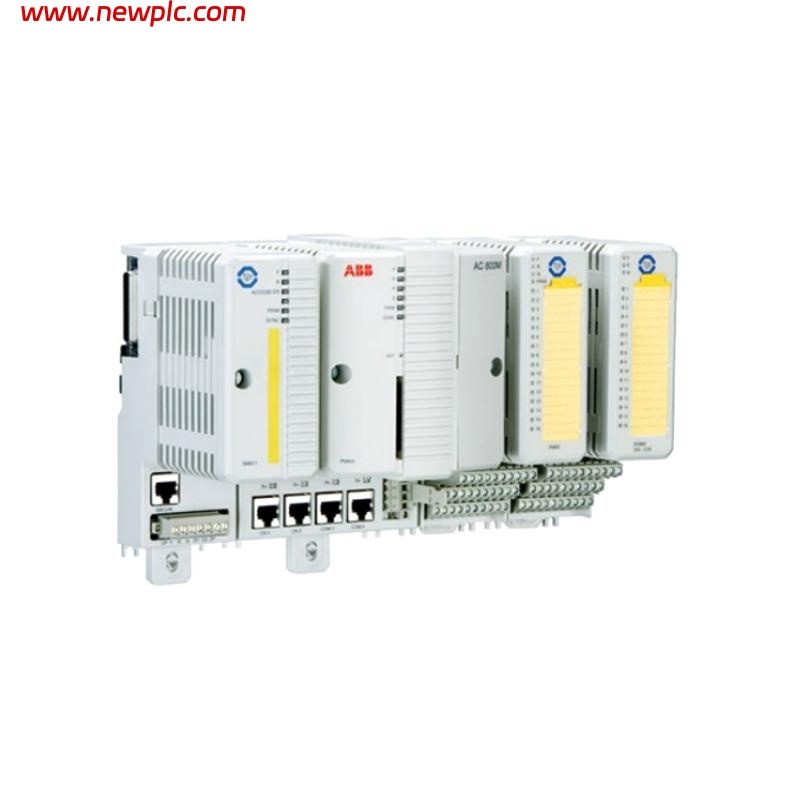

Q1: What is the primary function of ABB SM812 HI controller?
A1: It supervises controllers in non-SIL and SIL1-2 applications and, together with PM867/PM863/PM857, forms a SIL3 1oo2 diverse architecture.
Q2: Does the SM812 support redundancy?
A2: Yes, it supports redundant configurations and has a dedicated link for synchronization between redundant units.
Q3: Can the SM812 be hot-swapped?
A3: Yes, it supports hot-swap for online upgrades and replacements.
Q4: What power supply is required for SM812?
A4: It requires a 24 V DC supply, with an operating range of 19.2–30 V DC.
Q5: What are the environmental conditions for operating SM812?
A5: Operating temperature is +5 to +55 °C, relative humidity is 5–95% non-condensing, and it can withstand industrial environments per IEC/EN 61131-2.
Q6: What is the weight and size of SM812?
A6: Dimensions are 59 × 186 × 127.5 mm, and it weighs 0.7 kg.
Q7: Which SIL level can be achieved using SM812?
A7: SIL1–2 on its own and SIL3 when combined with compatible controllers in a redundant 1oo2 setup.
Q8: What certifications does SM812 have?
A8: It is certified with CE, TUV, RoHS, WEEE, marine certifications, and complies with various international safety and emission standards.
