Technical Specifications
| Parameter | Specification |
|---|---|

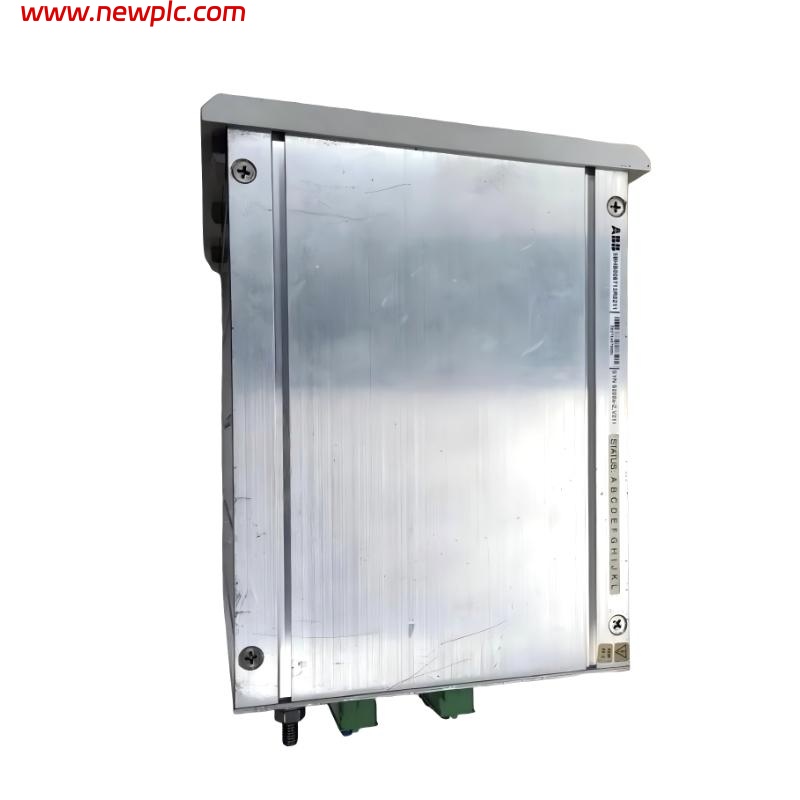

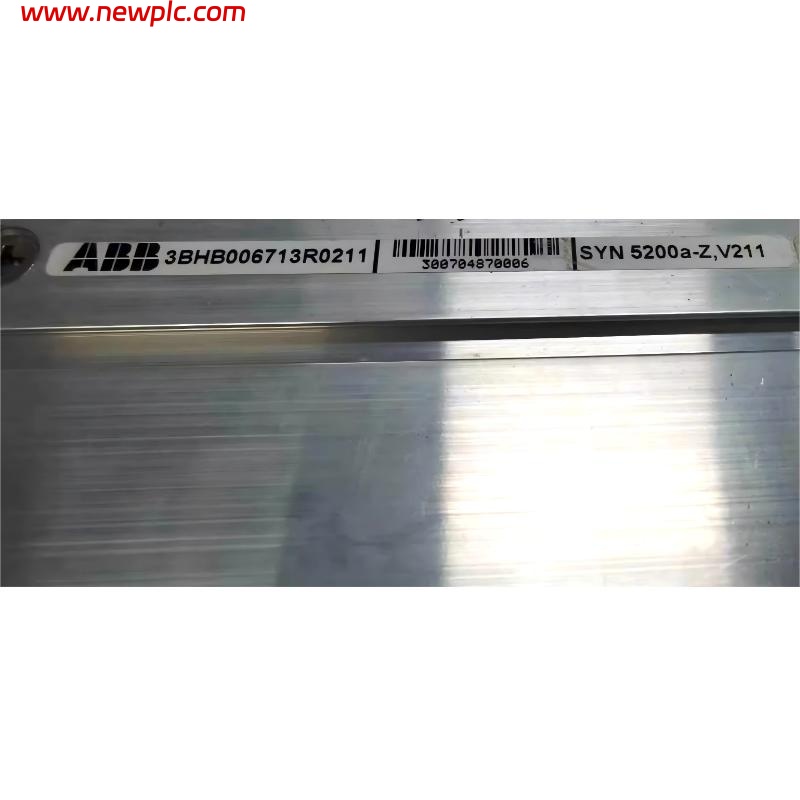

| Model Number | SYN 5200a-Z,V211 3BHB006713R0211 |
| Product Type | Synchronization Device |
| Manufacturer | ABB |
| Function | Synchronization control and communication interface for drive and automation systems |
| Input Voltage | 24 V DC |
| Power Consumption | < 15 W |
| Synchronization Accuracy | ±1 µs |
| Communication Interfaces | RS-485, CAN, Fiber Optic Link |
| Supported Protocols | Modbus RTU, ABB DriveBus, Proprietary Sync Link |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Cooling Method | Passive (Natural Convection) |
| Protection Class | IP20 |
| Isolation Voltage | 1500 V RMS |
| Mounting Type | Rack or Panel Mount |
| Indicators | Power, Communication, and Status LEDs |
| Dimensions | 226 × 171 × 220 mm |
| Weight | 4 kg |
FAQ
FAQ
Q1: What is the main function of the ABB SYN 5200a-Z,V211 device?
A1: It serves as a synchronization and control interface that ensures precise timing and communication between multiple ABB drives or control modules.
Q2: What communication interfaces are available on this model?
A2: The device supports RS-485, CAN, and fiber optic interfaces for secure and high-speed data exchange.
Q3: What synchronization precision can this unit achieve?
A3: It offers a synchronization accuracy of ±1 microsecond, ensuring consistent timing performance across connected systems.
Q4: Which communication protocols are supported?
A4: It supports Modbus RTU, ABB DriveBus, and ABB proprietary synchronization link protocols.
Q5: What type of cooling system does the device use?
A5: The SYN 5200a-Z,V211 uses a passive cooling system that relies on natural convection, requiring no external fans.
Q6: What is the nominal input voltage for this synchronization device?
A6: The nominal input voltage is 24 V DC, ensuring compatibility with industrial control power supplies.
Q7: What protection class does this ABB synchronization module comply with?
A7: It meets IP20 protection standards, providing resistance against solid particles larger than 12.5 mm.
Q8: What are the typical mounting options for the SYN 5200a-Z,V211?
A8: The unit can be installed on a rack or mounted on a control panel, making it suitable for various automation cabinet configurations.
