Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | ABB |

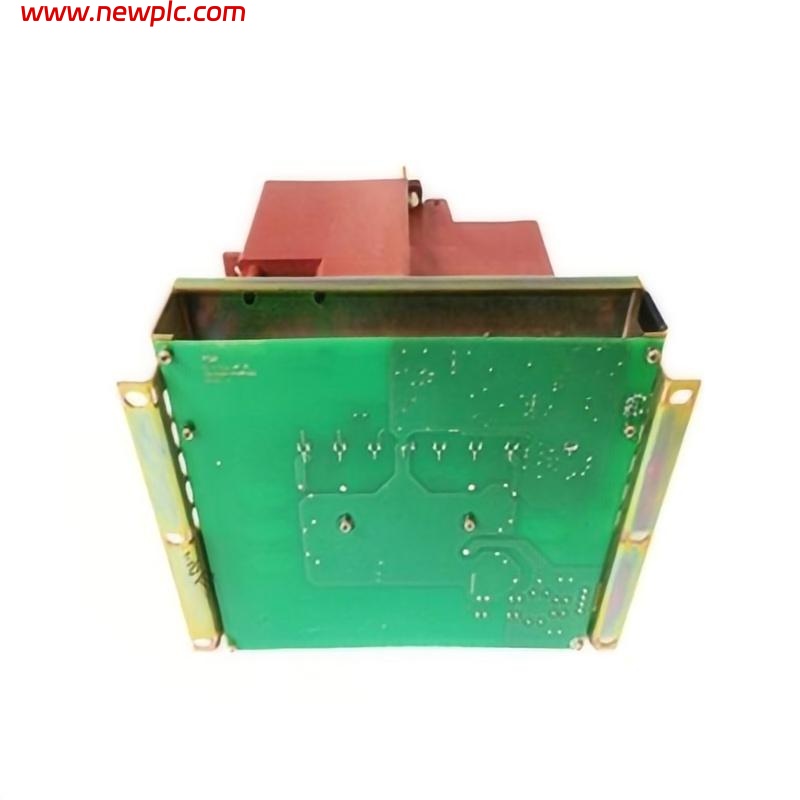

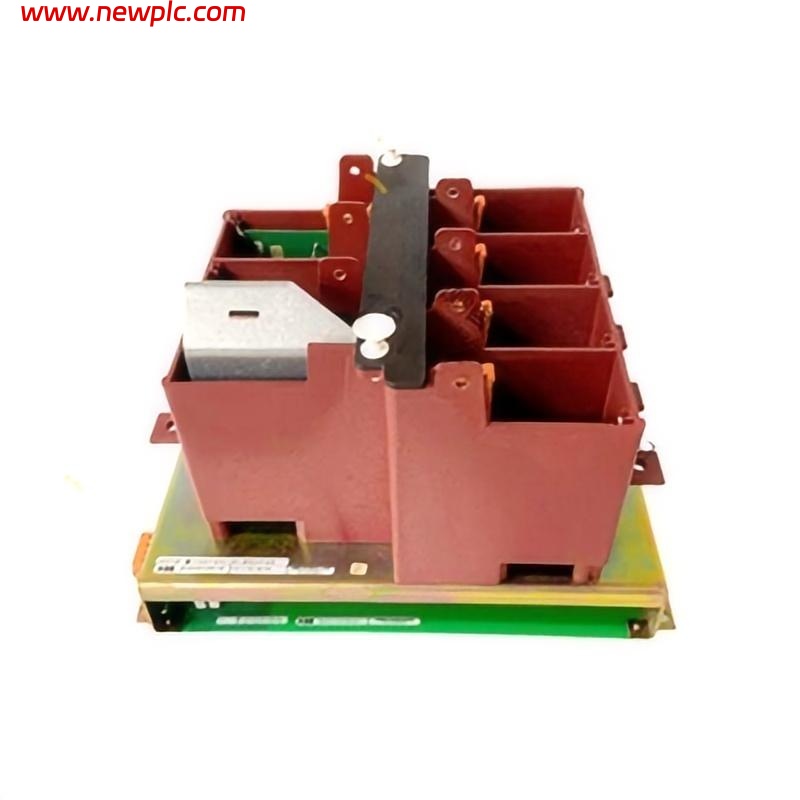

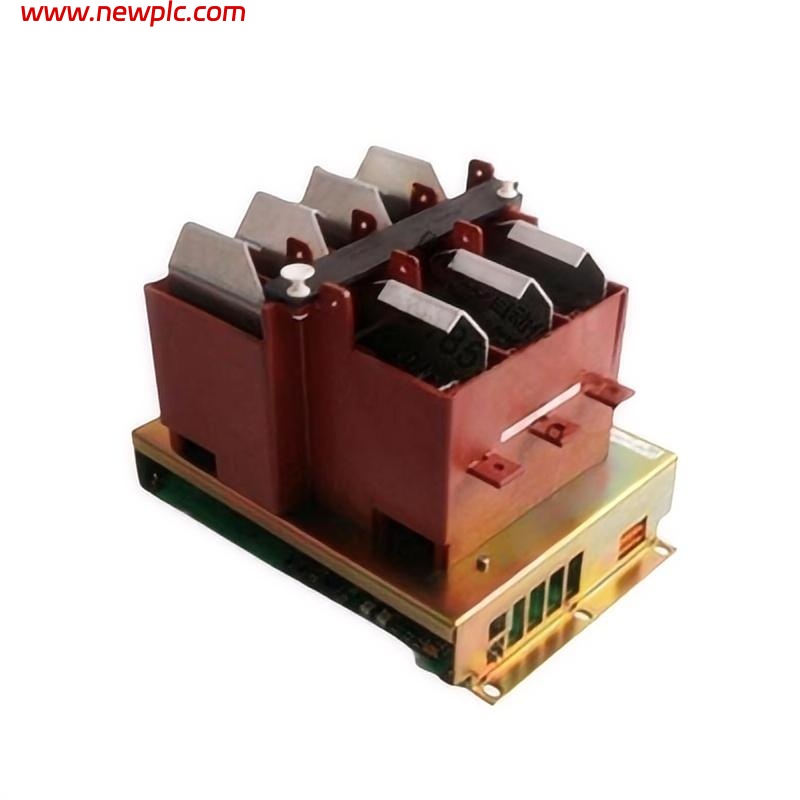

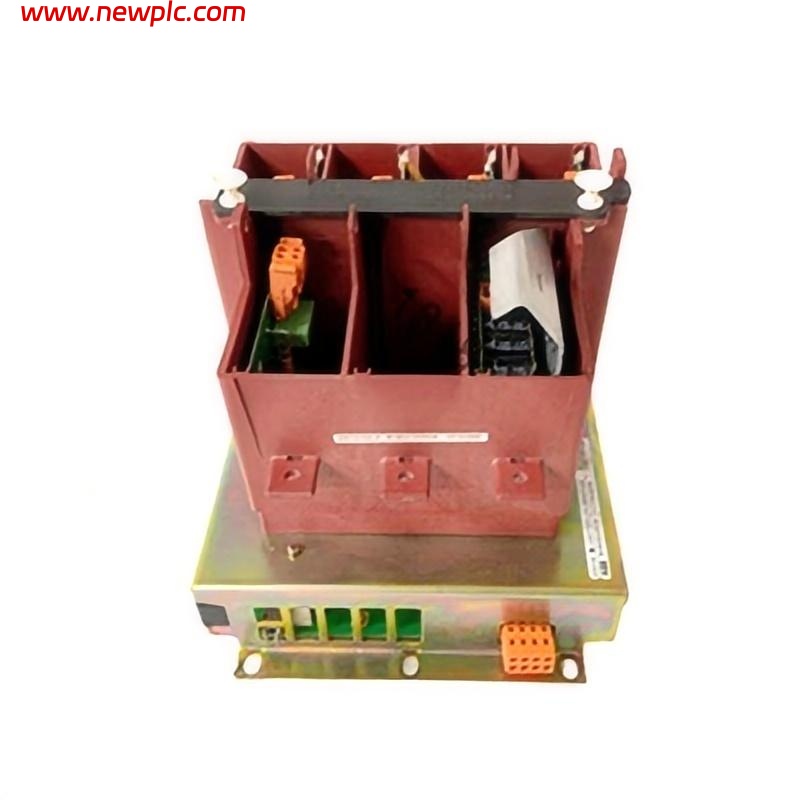

| Model | T60407-B4803-X010 |
| Part Number | 3BHB004719R0001 |
| Product Type | Pulse Transformer |
| Function | Signal transmission and galvanic isolation in gate drive circuits |
| Primary Voltage | 15 V (typical) |
| Secondary Voltage | 15 V (typical) |
| Turns Ratio | 1:1 (standard) |
| Insulation Voltage | 2500 V AC (minimum) |
| Operating Frequency | 20 kHz – 200 kHz |
| Inductance (Primary) | 1.2 mH (typical) |
| Leakage Inductance | < 2% of primary inductance |
| Core Material | Ferrite |
| Mounting Type | Through-hole |
| Cooling Method | Natural air-cooled |
| Operating Temperature | –40 °C to +125 °C |
| Storage Temperature | –55 °C to +150 °C |
| Dimensions | 195 × 100 × 32 mm |
| Weight | 0.33 kg |
| Applications | Used in IGBT/IGCT gate drive circuits for power conversion systems |
FAQ
FAQ
Q1: What is the ABB T60407-B4803-X010 used for?
It is mainly used in the gate drive circuits of IGBT and IGCT devices for pulse signal transmission and isolation.
Q2: What is the turns ratio of this transformer?
It typically has a 1:1 turns ratio, ensuring equal signal transmission on both sides.
Q3: What voltage insulation rating does it offer?
It provides an insulation voltage of up to 2500 V AC, ensuring safe operation in high-voltage circuits.
Q4: What are the physical dimensions and weight of the product?
The dimensions are 195 × 100 × 32 mm, and the weight is 0.33 kg.
Q5: In what applications is this pulse transformer commonly used?
It is commonly used in ABB gate drive boards, power converters, and control systems.
Q6: What type of core material does it use?
It uses a high-quality ferrite core for optimal magnetic efficiency and minimal energy loss.
Q7: What is the operating temperature range?
The transformer operates reliably between –40 °C and +125 °C.
Q8: How is it typically mounted on the circuit board?
It uses a through-hole mounting design for secure mechanical and electrical connection.
