Technical Specifications
| Parameter | Description |
|---|---|

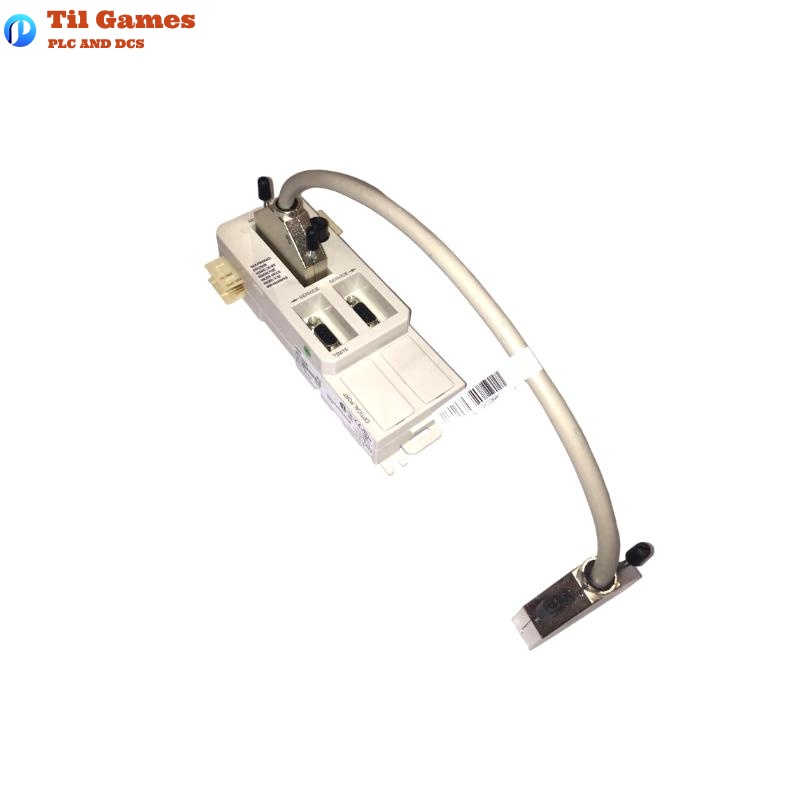

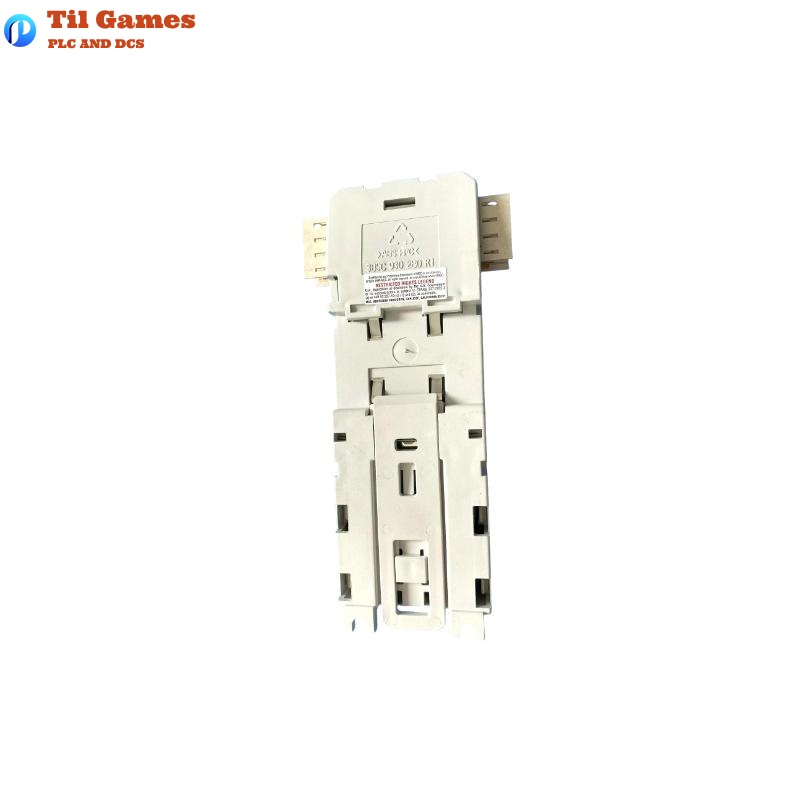

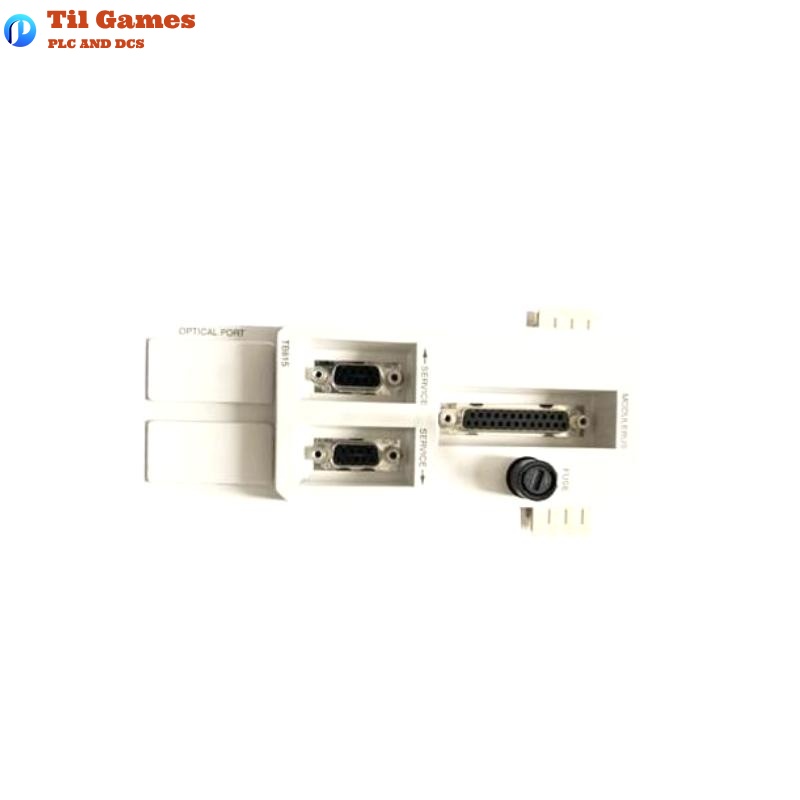

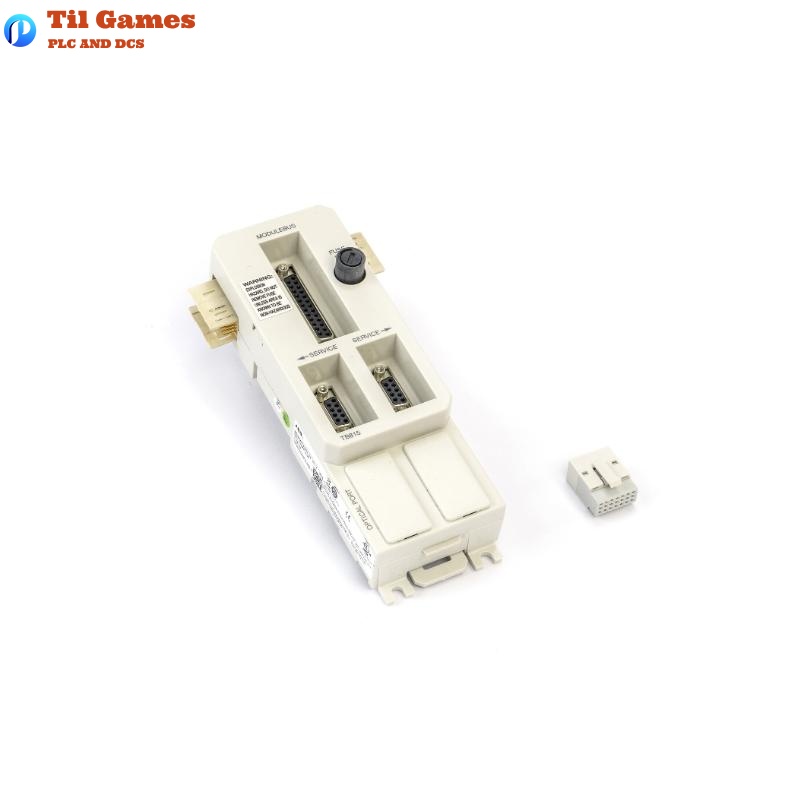

| Product Name | ABB TB815 Interconnection Unit |
| Article Number | 3BSE013204R1 |
| Function | Electrical and optical Modulebus interface for coordination of redundant CI820 |
| Mounting | DIN rail |
| Operating Temperature | +5 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 (EN 60529, IEC 529) |
| Corrosive Protection | G3 compliant (ISA-71.04) |
| Power Supply | 24 V DC (range: 19.2 – 30 V) |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| Safety Approvals | UL508, IEC/EN 61131-2, cULus, ATEX Zone 2 |
| RoHS Compliance | EN 50581:2012 |
| WEEE Compliance | Directive 2012/19/EU |
| Dimensions (W x H x D) | 90 x 250 x 50 mm |
| Weight | 0.25 kg |
FAQ
FAQ
Q1: What is the primary function of the ABB TB815?
A1: It serves as an electrical and optical interface for coordinating two redundant CI820 communication modules in Modulebus systems.
Q2: Where is the TB815 typically mounted?
A2: It is designed for DIN rail mounting in industrial control cabinets.
Q3: What types of communication does it support?
A3: It supports electrical and fiber-optic communication for Advant Fieldbus 100 Modulebus.
Q4: What is the operating voltage range of the TB815?
A4: It operates at 24V DC and supports a voltage range from 19.2 to 30V DC.
Q5: What is the temperature range suitable for the TB815?
A5: It operates from +5 to +55°C and can be stored between -40 and +70°C.
Q6: Does the TB815 meet industrial protection standards?
A6: Yes, it complies with IP20 protection class, suitable for non-condensing indoor environments.
Q7: Does TB815 support redundancy?
A7: Yes, it is specifically designed to coordinate redundant CI820 communication modules.
Q8: What is the corrosion protection rating of TB815?
A8: It meets G3 corrosion protection standards according to ISA-71.04, suitable for mild industrial environments.
