Technical Specifications
| Item | Specification |
|---|---|

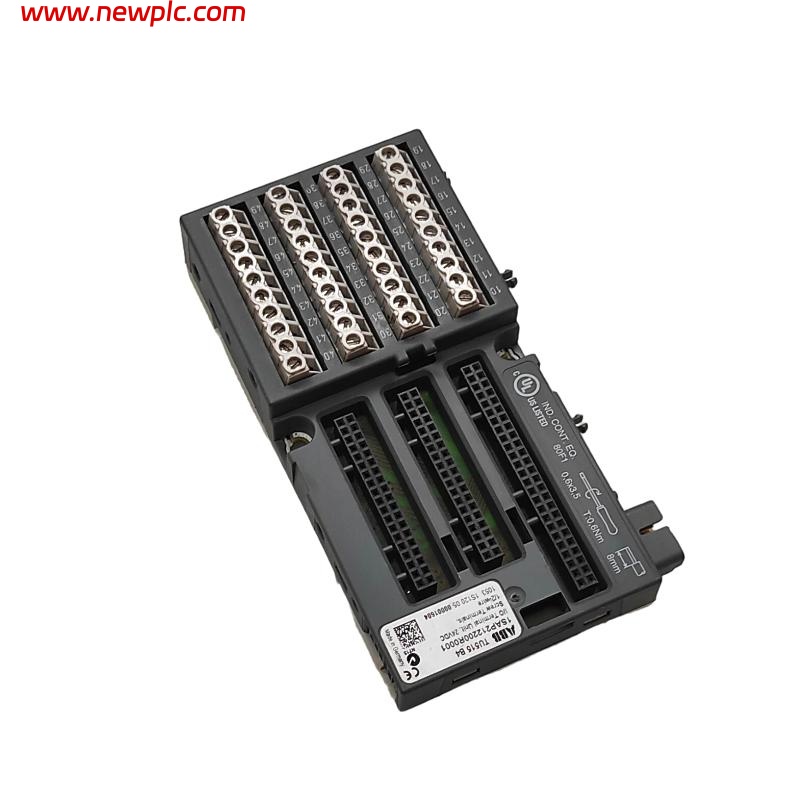

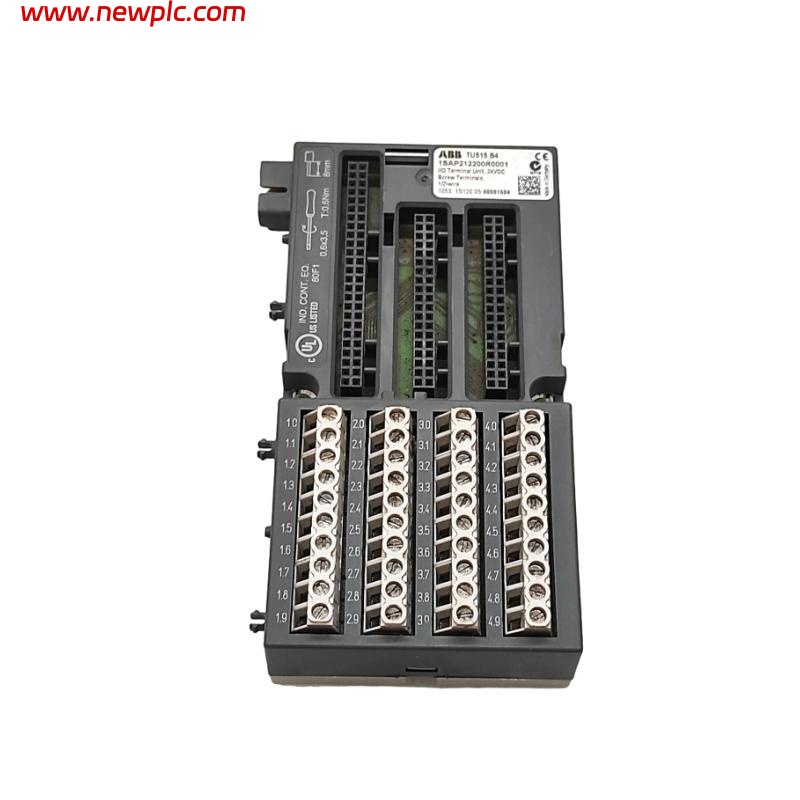

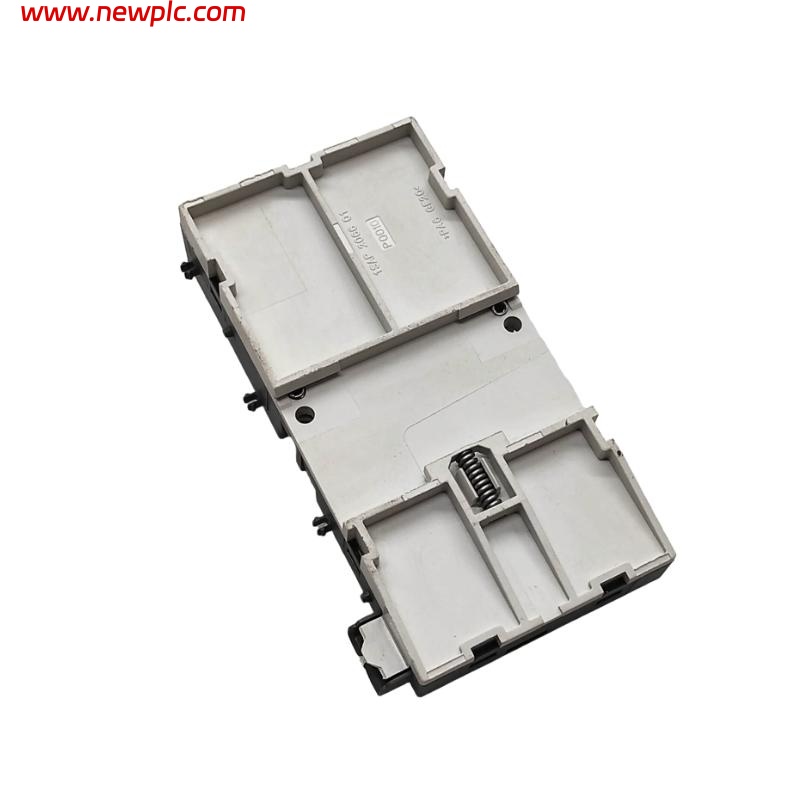

| Product Name | ABB TU515 1SAP212200R0101 Module Termination Unit |
| Module Type | Module Termination Unit (MTU) |
| Function | Provides wiring and electrical connection for I/O modules |
| Connection Type | Screw terminals / Pluggable connectors |
| Communication | Direct interface with ABB control modules |
| Power Supply | 24 V DC (typical) |
| Power Consumption | Very low |
| Operating Temp. | 0 ~ 55 ℃ |
| Storage Temp. | -40 ~ 70 ℃ |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| Installation | Modular DIN rail mounting |
| Compatibility | Compatible with ABB I/O modules and control systems |
| Dimensions | 28 x 135 x 67.5 mm |
| Weight | 0.232 kg |
FAQ
FAQ
Q1: What is the main function of TU515 1SAP212200R0101?
A1: It provides terminal wiring and signal interface for I/O modules.
Q2: What is the difference compared to 1SAP212200R0001?
A2: Both have the same function; the difference lies in version or specific application requirements.
Q3: Does it support multiple wiring types?
A3: Yes, it supports screw terminals and pluggable connectors.
Q4: Does it require a separate power supply?
A4: No, it is powered through the system supply.
Q5: Which modules can it be used with?
A5: It can be used with ABB I/O modules and related control units.
Q6: How is the TU515 installed?
A6: It is installed using DIN rail mounting for easy integration.
Q7: What is the operating temperature range?
A7: The range is 0 ~ 55 ℃.
Q8: Can the unit be repaired on-site if it fails?
A8: Replacement is recommended; complex faults should be returned for service.
