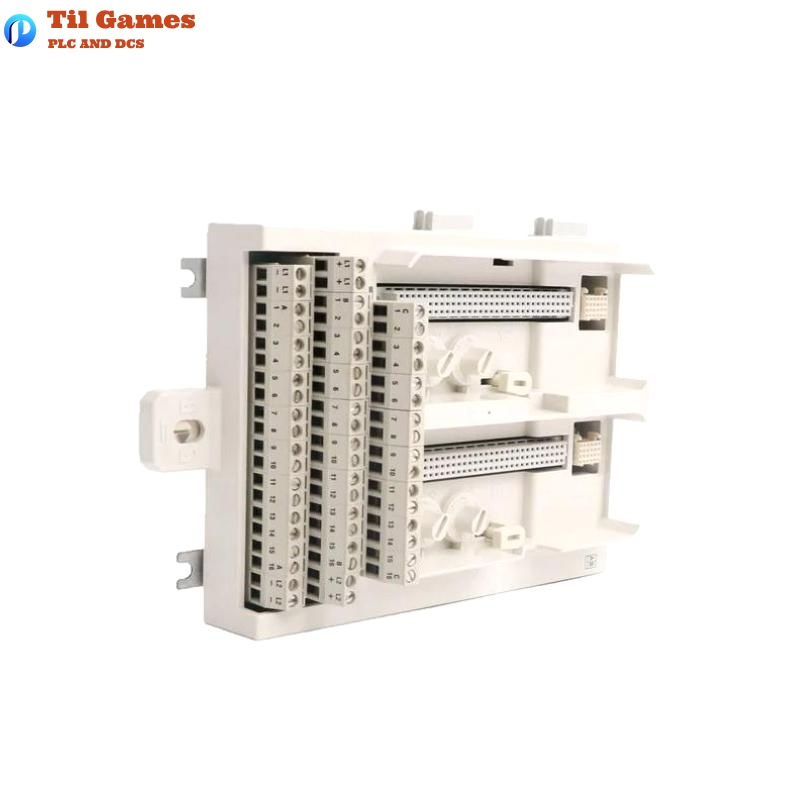

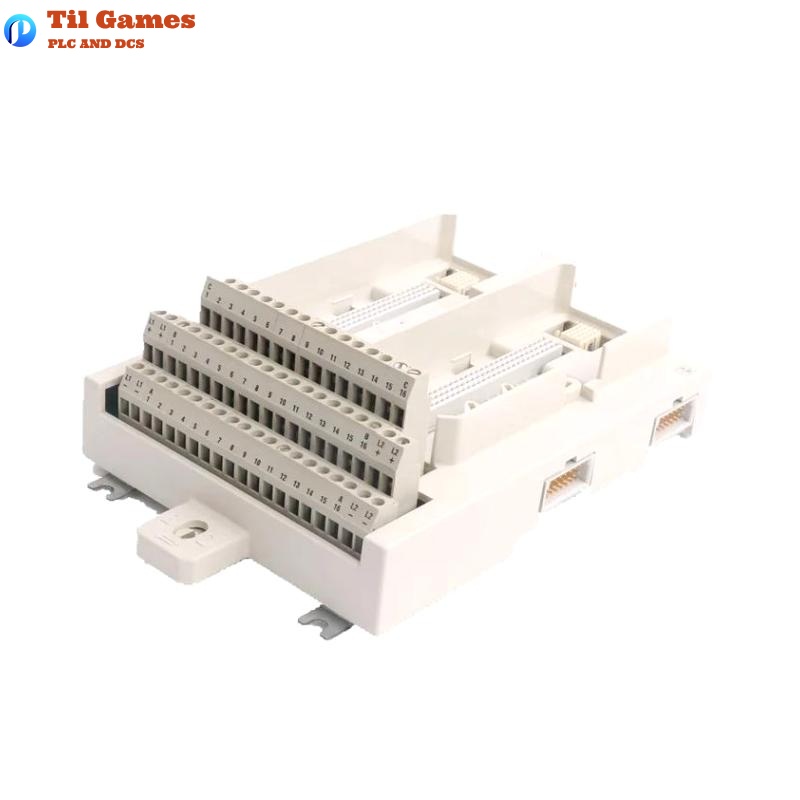

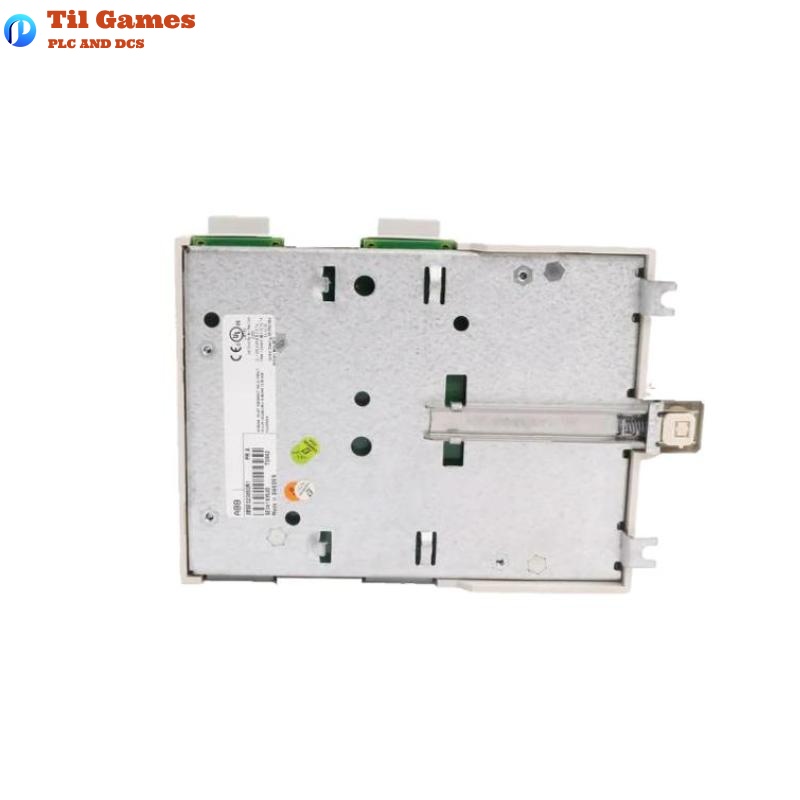

Technical Specifications
| Parameter | Details |
|---|---|

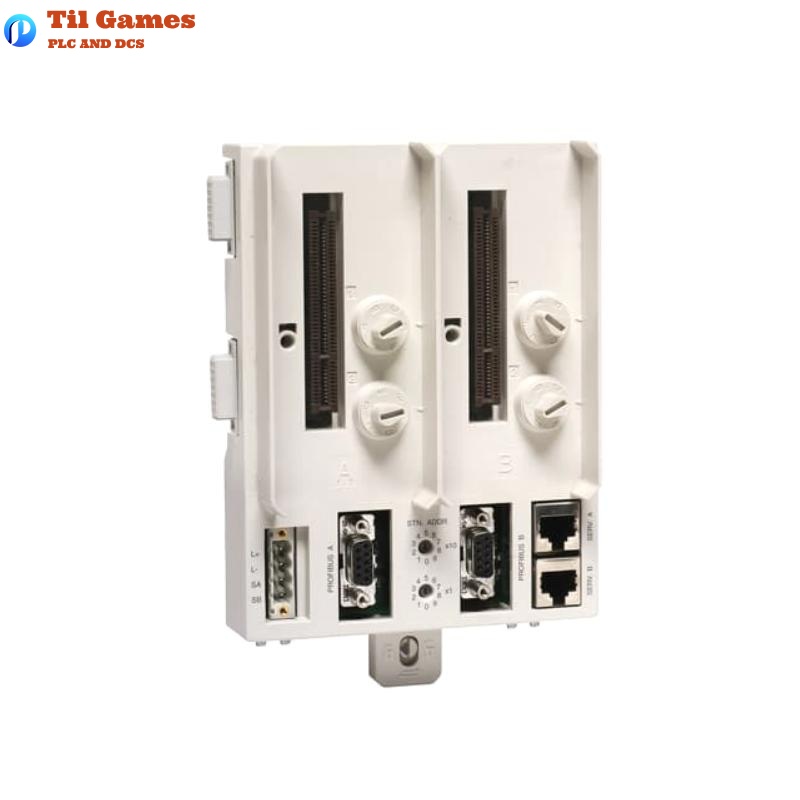

| Product Model | TU846 |
| Article Number | 3BSE022460R1 |
| Communication Protocol | PROFIBUS DP-V1 |
| Power Input | 24 VDC (Range: 19.2 – 30 V) |
| Mounting Orientation | Vertical or Horizontal |
| Module Redundancy | Supported (dual CI840/CI840A) |
| Line Redundancy | Yes |
| Hot Swap | Not supported |
| Optical ModuleBus Port | Supported (via TB846 to TB842) |
| ModuleBus Current | Max 5 V 1.5 A / Max 24 V 1.5 A |
| PROFIBUS Connector | DSUB9 |
| Service Ports | RJ45 |
| Wiring Specification | 0.25 – 2.5 mm² (24 – 14 AWG) |
| Recommended Torque | 0.5 – 0.6 Nm |
| Wire Strip Length | 6 – 7.5 mm |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 VAC |
| Operating Temperature | 0 to +55°C (approved range: +5 to +55°C) |
| Storage Temperature | -40 to +70°C |
| Relative Humidity | 5% – 95%, non-condensing |
| Ingress Protection | IP20 (IEC 529 compliant) |
| Compliance | CE, RoHS, WEEE, ATEX Zone 2, cULus Zone 2 |
| Dimensions | 124 x 186 x 47 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What modules are supported by TU846?
A1: TU846 supports redundant CI840/CI840A modules and redundant I/O configurations.
Q2: Can TU846 be replaced while powered?
A2: No, the unit must be powered off before replacement.
Q3: Are there limitations on mounting orientation?
A3: TU846 can be mounted vertically or horizontally, but vertical mounting limits ambient temperature to 40°C.
Q4: Does TU846 support hot swapping?
A4: No, hot swapping is not supported.
Q5: Is there a mechanism to prevent wrong module insertion?
A5: Yes, mechanical keying with 36 combinations prevents incorrect module installation.
Q6: What is the maximum ModuleBus cable length?
A6: The maximum length from TU846 to the ModuleBus terminator is 2.5 meters.
Q7: What interfaces does TU846 provide?
A7: It includes two PROFIBUS DSUB9 ports, two RJ45 service ports, and a connector for ModuleBus Optical Port.
Q8: Can TU846 be interchanged with TU847?
A8: No, TU846 is designed for redundant I/O use, while TU847 is for single I/O modules.
