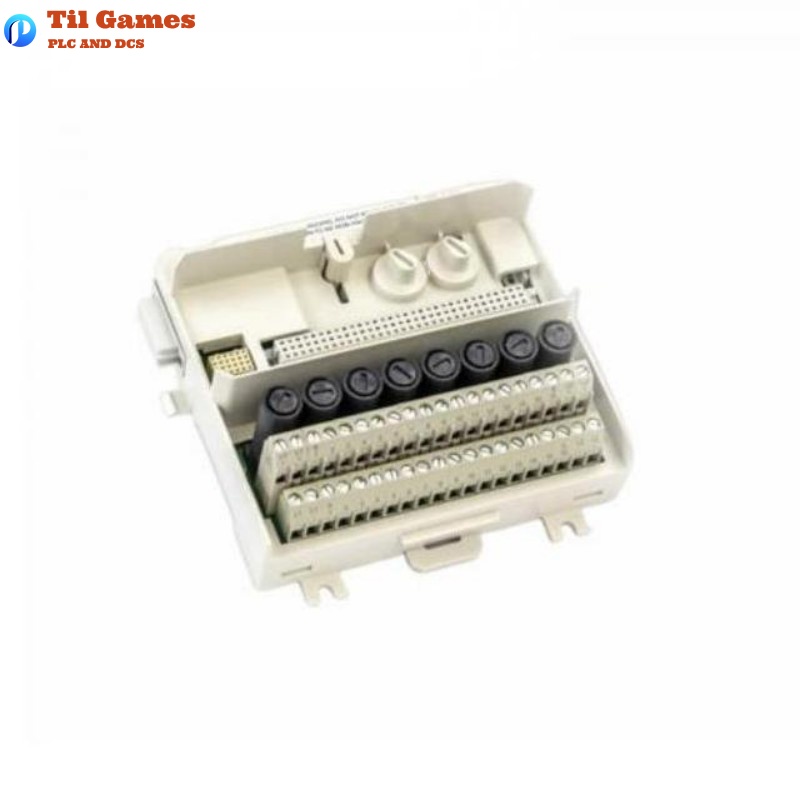

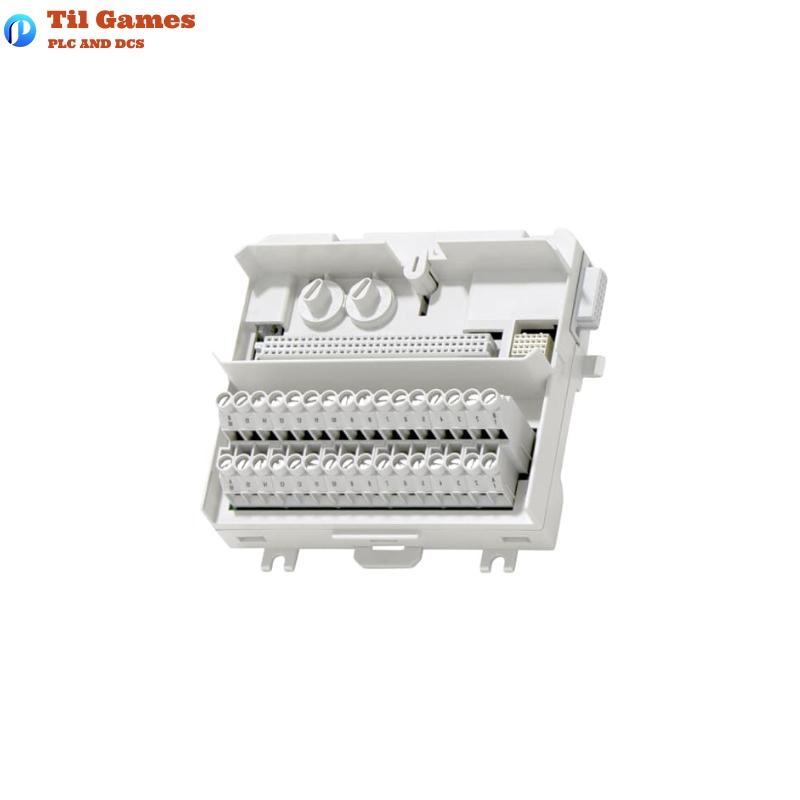

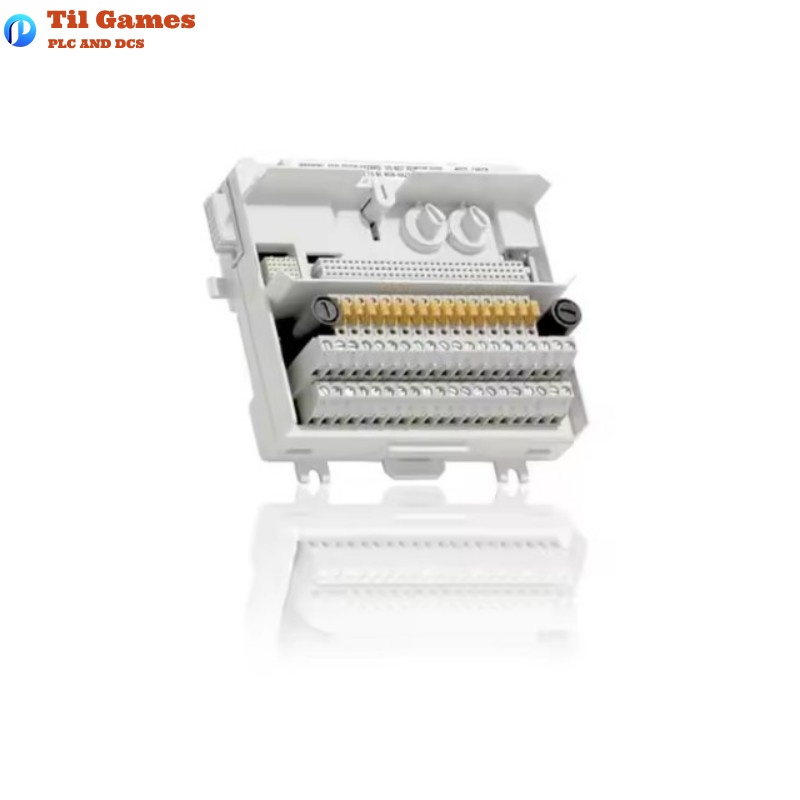

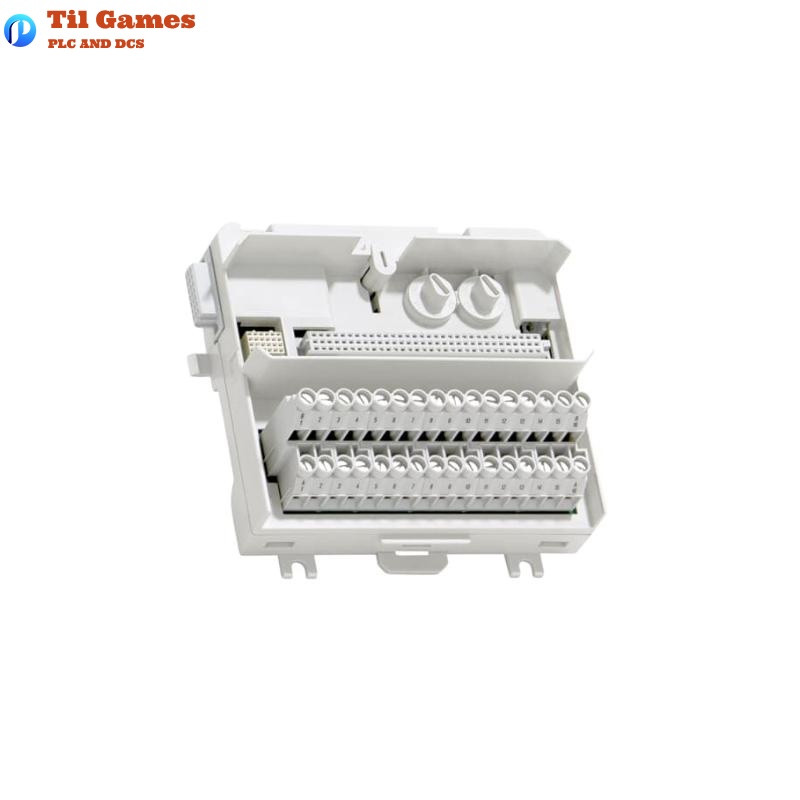

Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | TU851 |
| Ordering Code | 3BSE068782R1 |
| System Platform | ABB S800 I/O |
| Communication Protocol | Modulebus |
| Module Type | Extended Module Termination Unit |
| Power Input | 24 V DC (19.2 – 30 V) |
| Current Distribution | Max 5 V 1.5 A / Max 24 V 1.5 A |
| Power Dissipation | 2.5 W |
| Mechanical Keying | 36 different combinations |
| Wiring Specification | Solid: 0.2 – 2.5 mm² / Stranded: 0.2 – 2.5 mm² (24 -12 AWG) |
| Recommended Torque | 0.5 Nm |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V AC |
| Mounting | Vertical or Horizontal |
| Operating Temperature | 0 to +55 °C (certified: +5 to +55 °C) |
| Storage Temperature | -40 to +70 °C |
| Max Ambient Temp | 55 °C (40 °C if mounted vertically) |
| Relative Humidity | 5% to 95%, non-condensing |
| Ingress Protection | IP20 (IEC 60529) |
| Electrical Safety | EN/UL 61010-1, EN/UL 61010-2-201 |
| Hazardous Area Approval | cULus Class 1 Zone 2, ATEX Zone 2 |
| Marine Certifications | ABS, BV, DNV-GL, LR |
| RoHS Compliance | DIRECTIVE 2011/65/EU (EN 50581:2012) |
| WEEE Compliance | DIRECTIVE 2012/19/EU |
| Dimensions (W x H x D) | 126 x 64 x 110 mm |
| Weight | 0.22 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the TU851 module?
A1: TU851 serves as an extended termination unit in the ABB S800 I/O system, enabling Modulebus communication and power distribution between the controller and I/O modules.
Q2: Does TU851 support hot swapping?
A2: No, hot swapping is not supported. The system must be powered down before replacing the module.
Q3: Can the TU851 be installed horizontally?
A3: Yes, the module supports both vertical and horizontal mounting for flexible installation.
Q4: What power input is supported by TU851?
A4: It supports a 24V DC power input with a voltage range from 19.2V to 30V.
Q5: What is the maximum current distribution capacity of TU851?
A5: The module can distribute up to 1.5 A at 5V and 1.5 A at 24V.
Q6: What are the operating and storage temperature ranges for TU851?
A6: Operating range is 0 to +55°C (certified for +5 to +55°C); storage range is -40 to +70°C.
Q7: What is the protection class of the module, and where is it suitable for use?
A7: The module has an IP20 rating, suitable for clean, dry, control cabinet environments.
Q8: Is TU851 compliant with RoHS and WEEE regulations?
A8: Yes, it complies with RoHS Directive 2011/65/EU and WEEE Directive 2012/19/EU.
