Technical Specifications
| Parameter | Specification |
|---|---|
| Article Number | 3BSC690075R1 |
| Product Type | Compact Terminal Block |
| Mounting | Horizontal on DIN rail |
| Channels | 8 |
| Voltage | 24 V |
| Maximum Current per Channel | 2 A |
| Connection Type | Terminal block |
| I/O Module Compatibility | AI890, AI893, AI895, AO890, AO895, DI890, DO890 |

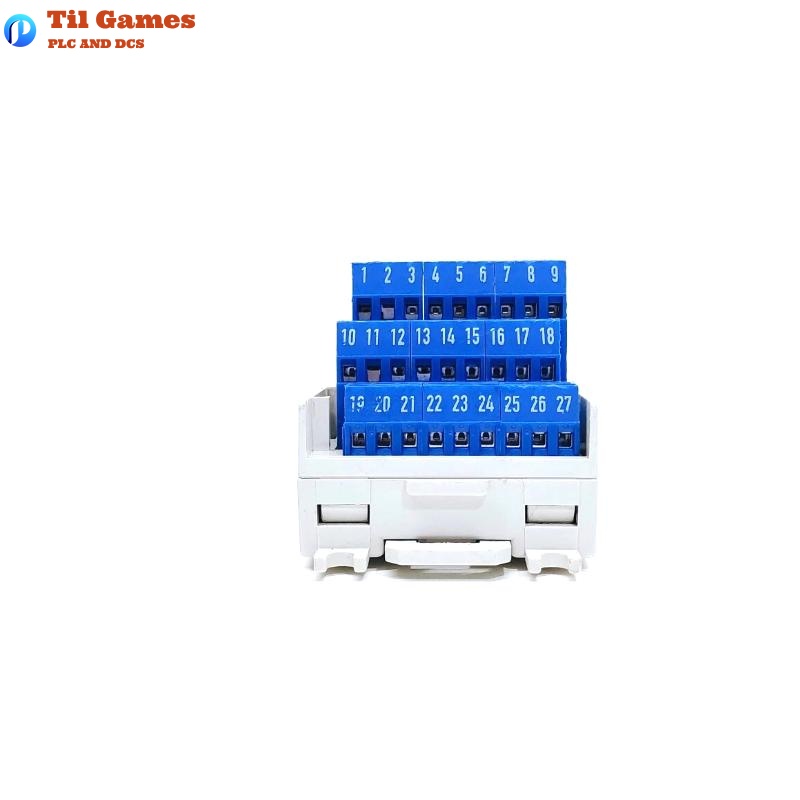

| Process Connections | 27 blue terminals |
| Single/Redundant I/O | Single |
| Dielectric Test Voltage | 500 V AC |
| Wire Sizes (Solid) | 0.2 – 4 mm² |
| Wire Sizes (Stranded) | 0.2 – 2.5 mm² (24 – 12 AWG) |
| Power Supply Wire Sizes | 0.25 – 2.5 mm² (24 – 14 AWG) |
| Recommended Torque | 0.5 – 0.6 Nm |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20 (IEC 60529) |
| Pollution Degree | 2 (IEC 60664-1) |
| Overvoltage Category | IEC/EN 60664-1, EN 50178 |
| EMC Standards | EN 61000-6-4, EN 61000-6-2 |
| Electrical Safety | EN 61010-1, EN 61010-2-201 |
| Hazardous Location Compliance | ATEX/IECEx Zone 2; cFMus Class I Div 2 |
| Marine Certifications | ABS, BV, DNV-GL, LR |
| RoHS Compliance | EN 50581:2012 |
| WEEE Compliance | Directive 2012/19/EU |
| Dimensions (W x H x D) | 64 x 194 x 58.5 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: Which I/O modules are compatible with the TU890?
A1: It is compatible with AI890, AI893, AI895, AO890, AO895, DI890, and DO890.
Q2: What is the maximum current supported per channel?
A2: The maximum rated current per I/O channel is 2 A.
Q3: What certifications does TU890 comply with?
A3: It complies with ATEX/IECEx Zone 2, cFMus Class I Div 2, and marine certifications such as ABS, BV, DNV-GL, and LR.
Q4: Does TU890 support redundant I/O?
A4: No, it only supports single I/O channel configurations.
Q5: How is the TU890 mounted?
A5: It is mounted horizontally on a DIN rail with a latching device.
Q6: What are the dimensions and weight of the TU890?
A6: The dimensions are 64 x 194 x 58.5 mm and it weighs 0.3 kg.
Q7: Does the TU890 offer electrical safety protection?
A7: Yes, it complies with EN 61010-1 and EN 61010-2-201, IP20 protection, and overvoltage categories.
Q8: Are there specific wire size requirements?
A8: Yes, it supports solid wires (0.2–4 mm²), stranded wires (0.2–2.5 mm²), and power supply wires (0.25–2.5 mm²).
