Technical Specifications
| Parameter | Specification |
|---|---|

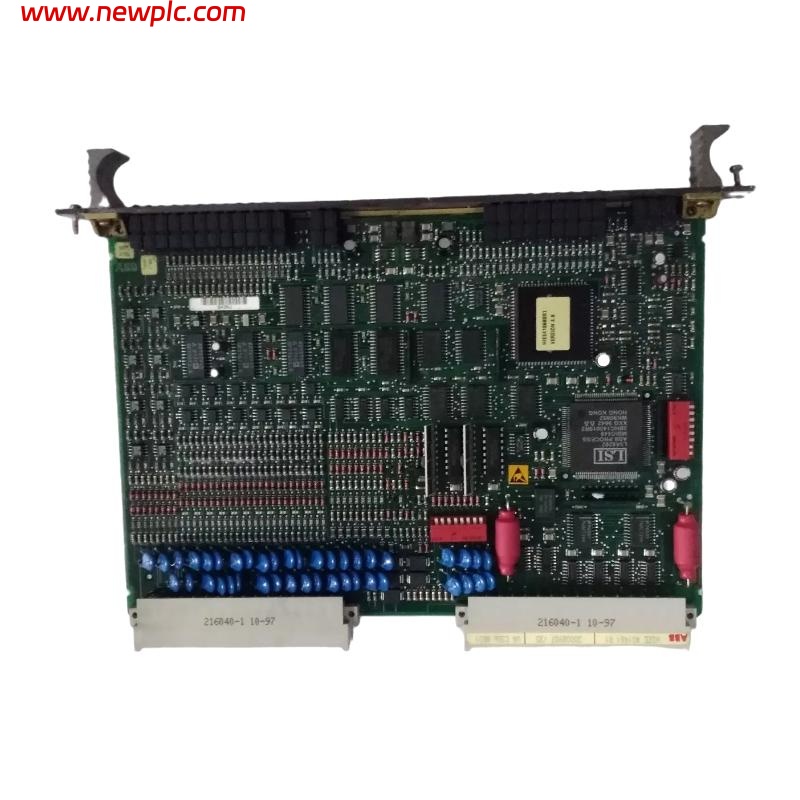

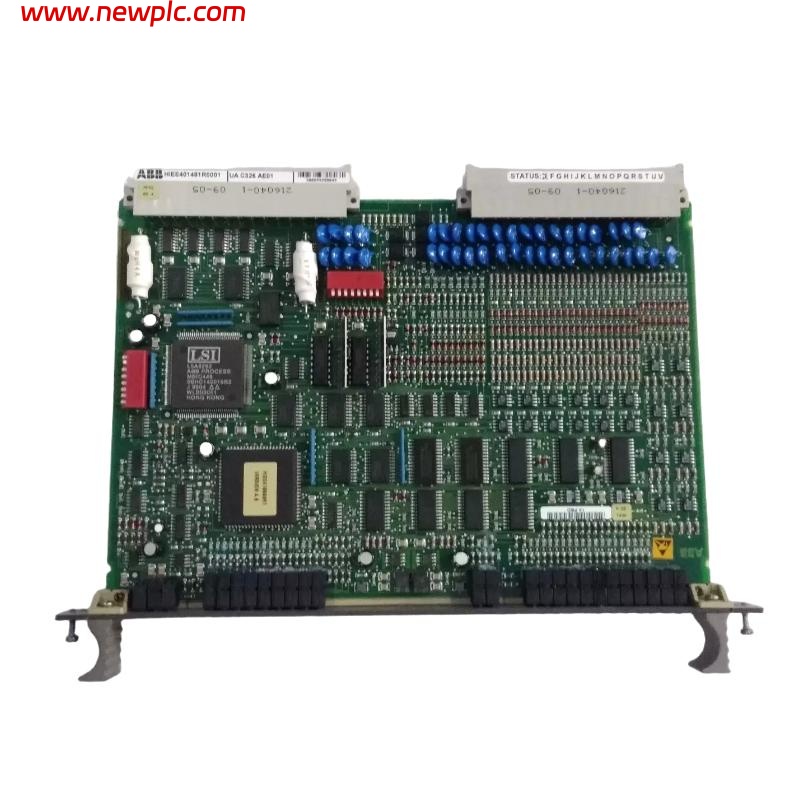

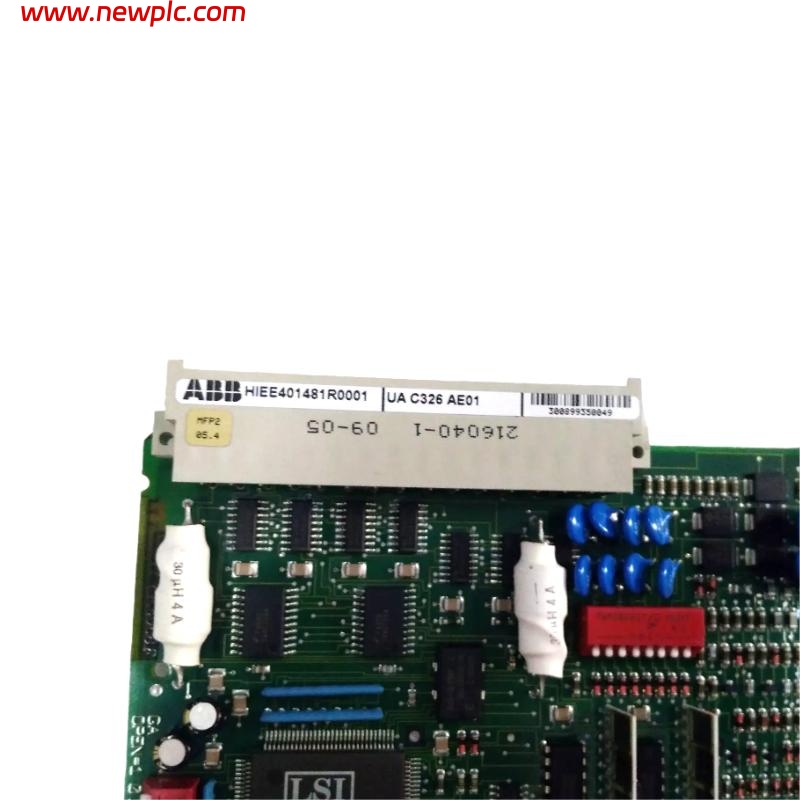

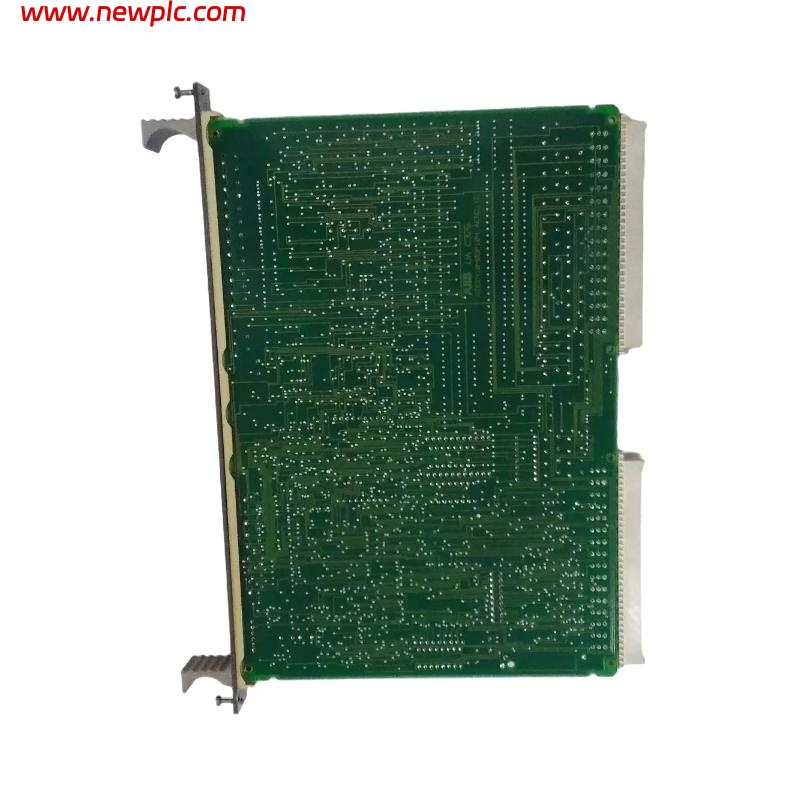

| Model | ABB UA C326 AE01 HIEE401481R0001 |
| Analog Input Channels | 8 Channels (±10V, 0–20 mA, 4–20 mA) |
| Analog Output Channels | 4 Channels (±10V, 0–20 mA, 4–20 mA) |
| Digital Input Channels | 16 Channels (24V DC Input) |
| Digital Output Channels | 16 Channels (24V DC Output) |
| Analog Input Resolution | 16-bit |
| Analog Output Resolution | 16-bit |
| Digital Input Voltage Range | 0–24V DC |
| Digital Output Voltage Range | 0–24V DC |
| Sampling Rate | 1 kHz |
| Input Current | Max 40 mA (Analog Input) |
| Output Current | Max 20 mA (Analog Output) |
| Dimensions | 29 × 29 × 29 mm |
| Weight | 0.35 kg |
FAQ
FAQ
Q1: What is the input range for analog input channels?
A1: The analog input channels support input ranges of ±10V, 0–20 mA, and 4–20 mA.
Q2: What is the output range for analog output channels?
A2: The analog output channels support output ranges of ±10V, 0–20 mA, and 4–20 mA.
Q3: What is the voltage range for digital inputs and outputs?
A3: The voltage range for digital inputs and outputs is 0–24V DC.
Q4: How many analog input and output channels does the card support?
A4: The card supports 8 analog input channels and 4 analog output channels.
Q5: What is the resolution for analog inputs and outputs?
A5: Both analog inputs and outputs have a 16-bit resolution.
Q6: How many digital input and output channels does the card support?
A6: The card supports 16 digital input channels and 16 digital output channels.
Q7: What is the sampling rate for the card?
A7: The sampling rate of the card is 1 kHz.
Q8: What are the maximum input and output current values?
A8: The maximum input current for analog input is 40 mA, and the maximum output current for analog output is 20 mA.
