Technical Specifications
| Parameter | Description |
|---|---|

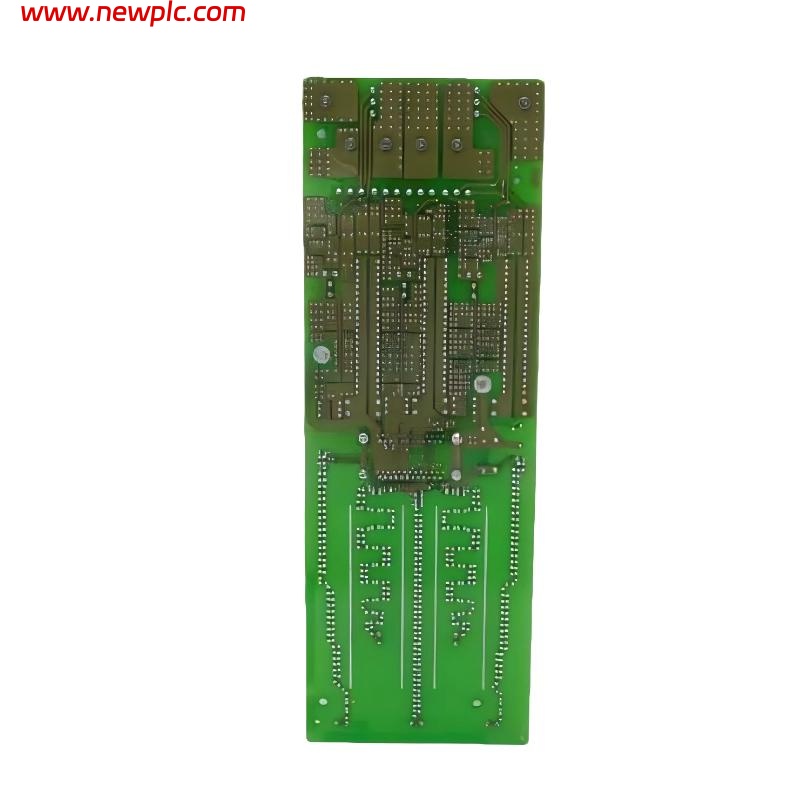

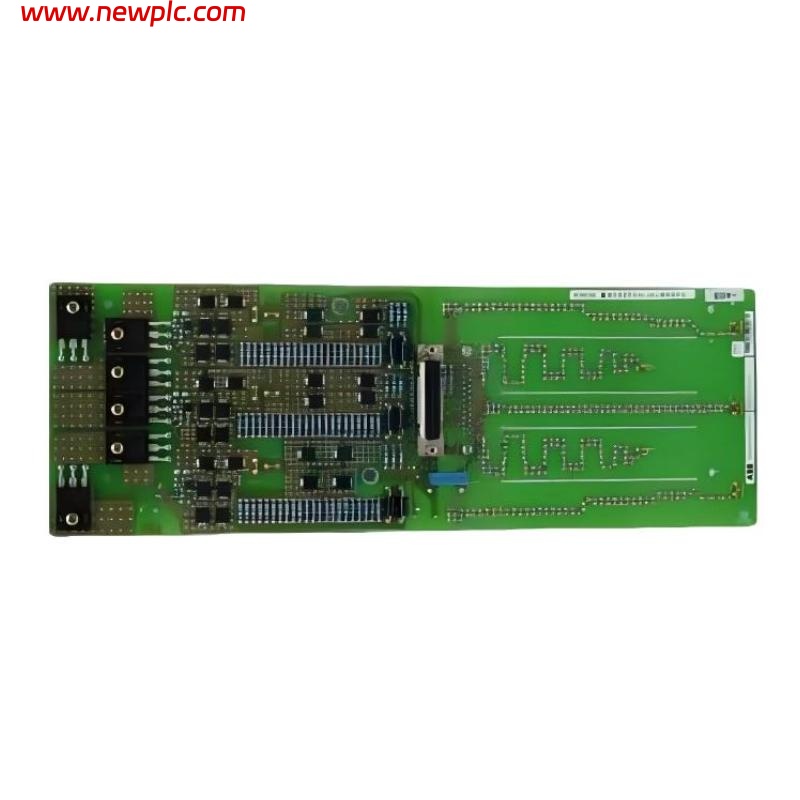

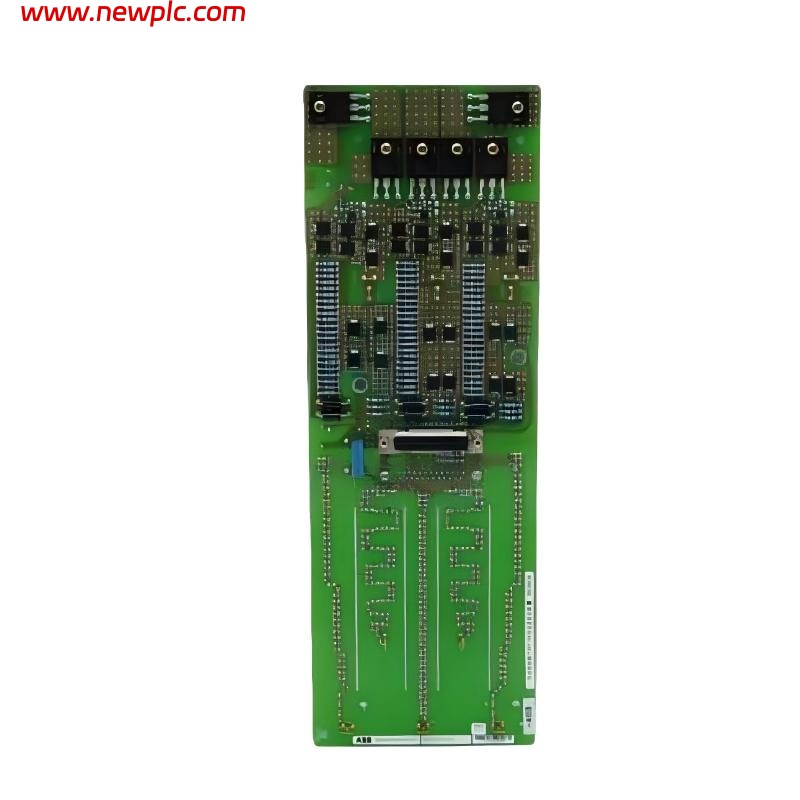

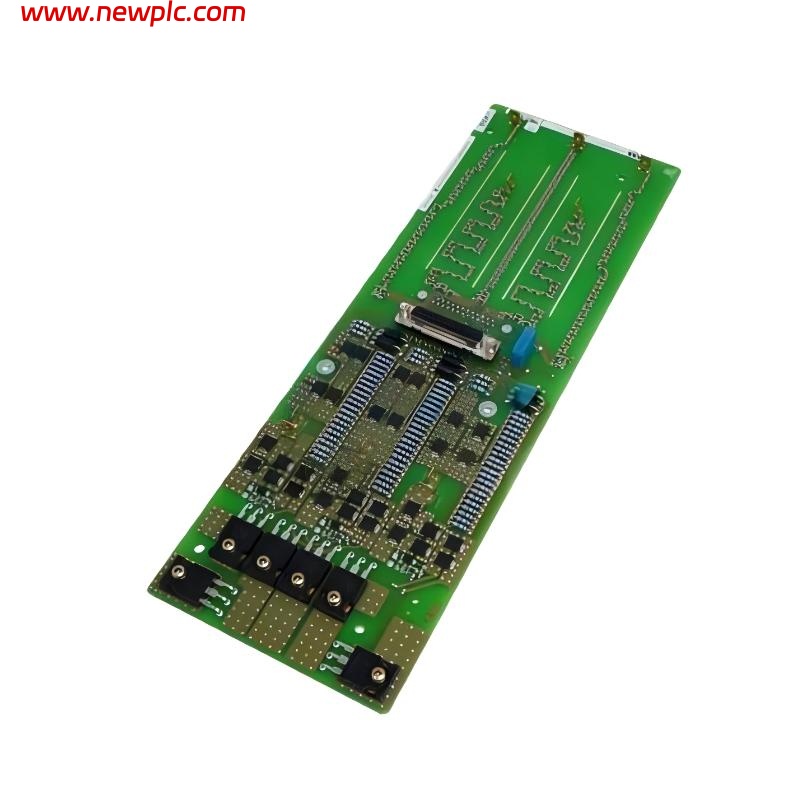

| Product Model | ABB UA D215 A105 3BHE026284R0105 PEC80 Converter Signal Interface |
| Function | Provides signal interface for PEC80 converter systems, enabling precise control and monitoring |
| System Role | Converts and routes analog and digital signals between the PEC80 converter and the control system |
| Input Signal | Low-level analog and digital signals from converter or auxiliary modules |
| Output Signal | Conditioned signals for control, monitoring, and protective functions |
| Signal Conditioning | Filtering, scaling, isolation, and level-shifting to ensure signal integrity |
| Protection Features | Overvoltage, short-circuit, and ESD protection integrated |
| Mounting | Panel or chassis-mounted for industrial control cabinet integration |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Rating | 5%–95% non-condensing |
| PCB Construction | Industrial-grade multilayer FR-4 with protective conformal coating |
| Dimensions (L × W × H) | 320 × 48 × 165 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What is the main purpose of the 3BHE026284R0105 PEC80 Signal Interface?
A1: It converts and routes signals from the PEC80 converter to the control system for precise monitoring and control.
Q2: What types of input signals does the board handle?
A2: Both low-level analog and digital signals from the converter or auxiliary modules.
Q3: What kind of output signals are provided?
A3: Conditioned signals suitable for control, monitoring, and protective functions in the system.
Q4: Are protection features included on the board?
A4: Yes, the board has integrated overvoltage, short-circuit, and ESD protection.
Q5: How is the board mounted in an industrial control system?
A5: It can be mounted on a panel or within a chassis in control cabinets.
Q6: What environmental conditions are recommended for operation?
A6: Operation should be maintained between –20°C to +60°C with 5%–95% non-condensing humidity.
Q7: Can this interface board be used with multiple PEC80 converters?
A7: Yes, it is compatible with PEC80 converters requiring signal conversion and routing.
Q8: What maintenance is recommended for the signal interface board?
A8: Periodically inspect connectors, verify signal integrity, and check the protective circuits for proper operation.
