Technical Specifications
| Parameter | Description |
|---|---|

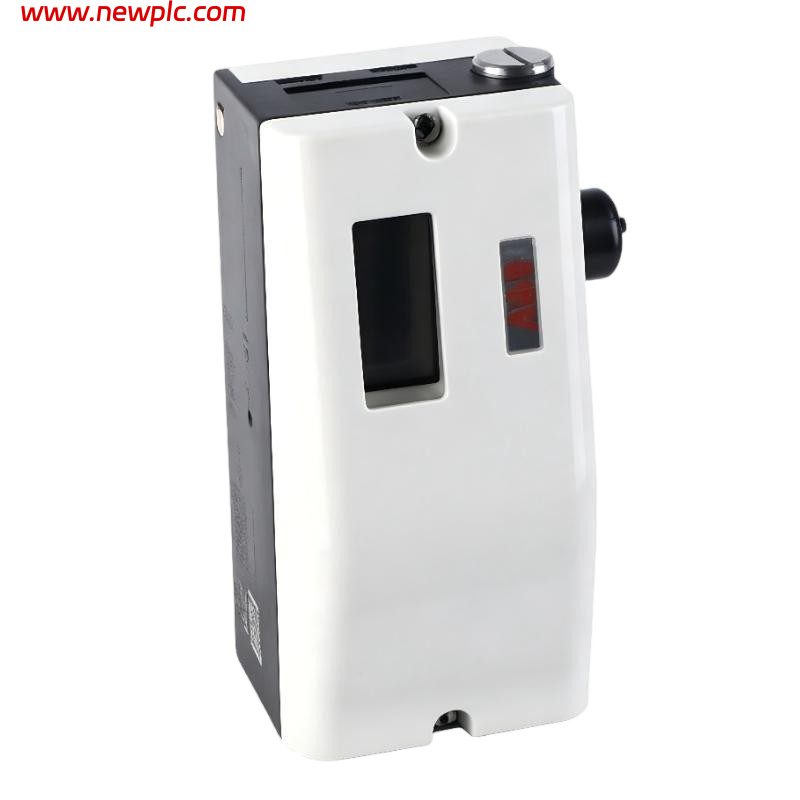

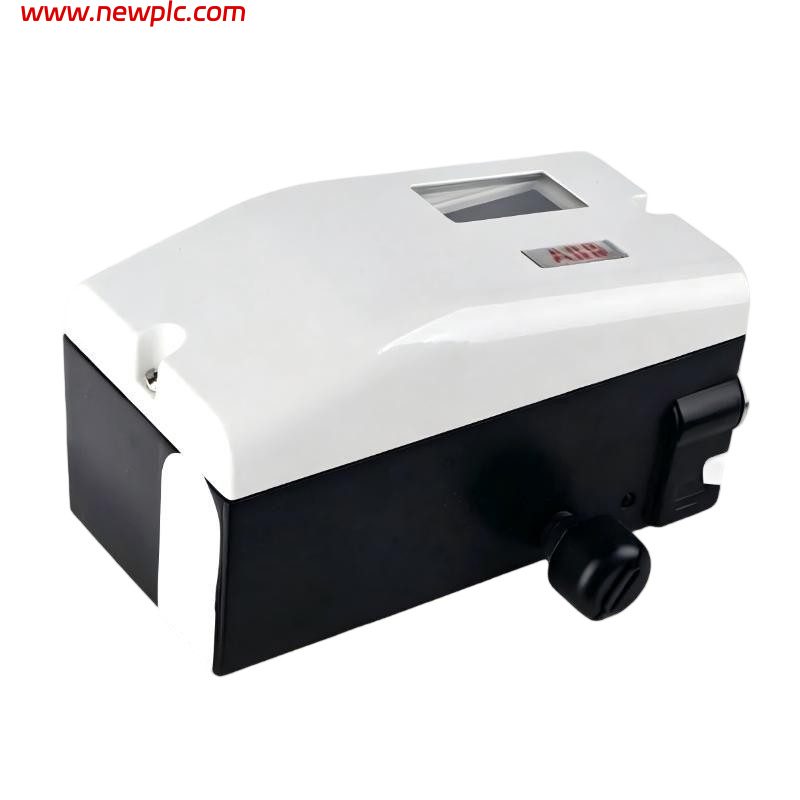

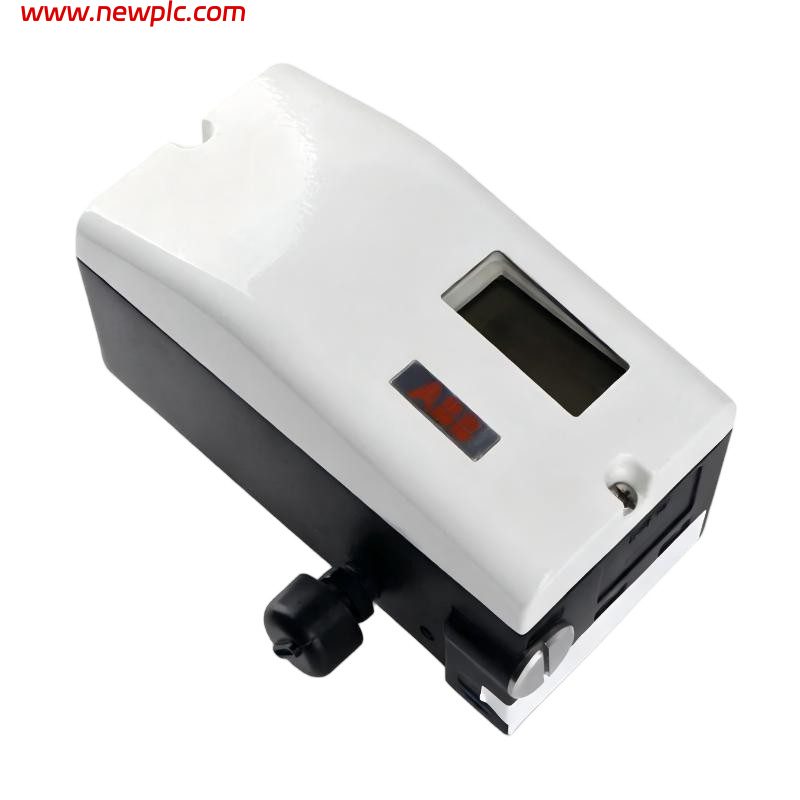

| Product Name | ABB TZIDC Valve Positioner |
| Part Number | V18345-1010521001 |
| Product Type | Electro-Pneumatic Smart Valve Positioner (TZIDC Series) |
| Manufacturer | ABB |
| Series | TZIDC (V18345) |
| Function | Converts 4–20 mA control signal into precise pneumatic actuator positioning for control valves |
| Application | Oil & gas / chemical / power plants / water treatment / process automation |
| Input Signal | 4–20 mA (two-wire control loop) |
| Output | Pneumatic output to actuator (single or double acting depending on configuration) |
| Communication | Optional HART communication (depending on variant) |
| Air Supply | Typically 20–90 psi (1.4–6 bar) |
| Control Type | Digital positioning with automatic calibration and diagnostics |
| Housing Material | Aluminum alloy, corrosion-resistant coating |
| Protection Rating | IP65 / NEMA 4X |
| Explosion Protection | Optional ATEX / IECEx (variant dependent) |
| Mounting Standard | NAMUR / IEC 534 / VDI/VDE 3845 |
| Operating Temperature | -40°C to +85°C (typical TZIDC range) |
| Feedback Option | Optional 4–20 mA position feedback module |
| Fail Action | Fail freeze / fail safe depending on configuration |
| Parameter | Description |
|---|---|
| Dimensions (W × H × D) | Approx. 120 × 100 × 20 mm (varies by mounting kit/variant) |
| Weight | Approx. 1.7 kg |
FAQ
FAQ
Q1: What is ABB V18345-1010521001 used for?
A1: It is used to control valve position in industrial process systems by converting electrical control signals into pneumatic actuator movement.
Q2: Is it a PLC or controller?
A2: No, it is a valve positioner used on control valves, not a PLC.
Q3: What system does it belong to?
A3: It belongs to the ABB TZIDC intelligent electro-pneumatic positioner series.
Q4: What is the input signal?
A4: It uses a standard 4–20 mA control signal.
Q5: What is its operating pressure range?
A5: Typically 20–90 psi (1.4–6 bar) air supply.
Q6: What is its protection rating?
A6: IP65 / NEMA 4X enclosure.
Q7: What are its physical dimensions?
A7: Approximately 120 × 100 × 20 mm (variant dependent).
Q8: What is its weight?
A8: Approximately 1.7 kg.
