Technical Specifications
| Parameter | Description |
|---|---|

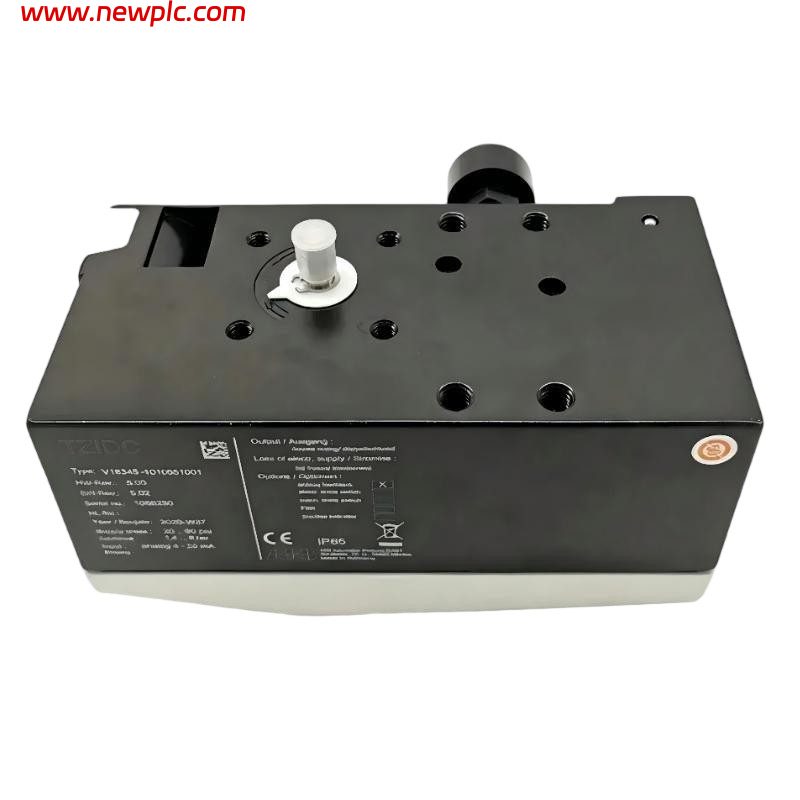

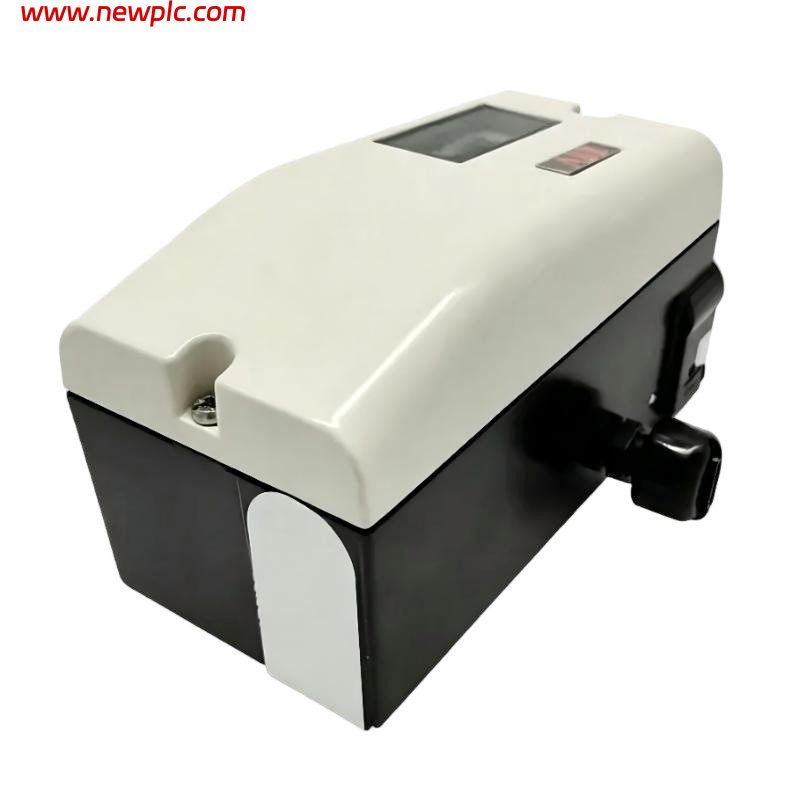

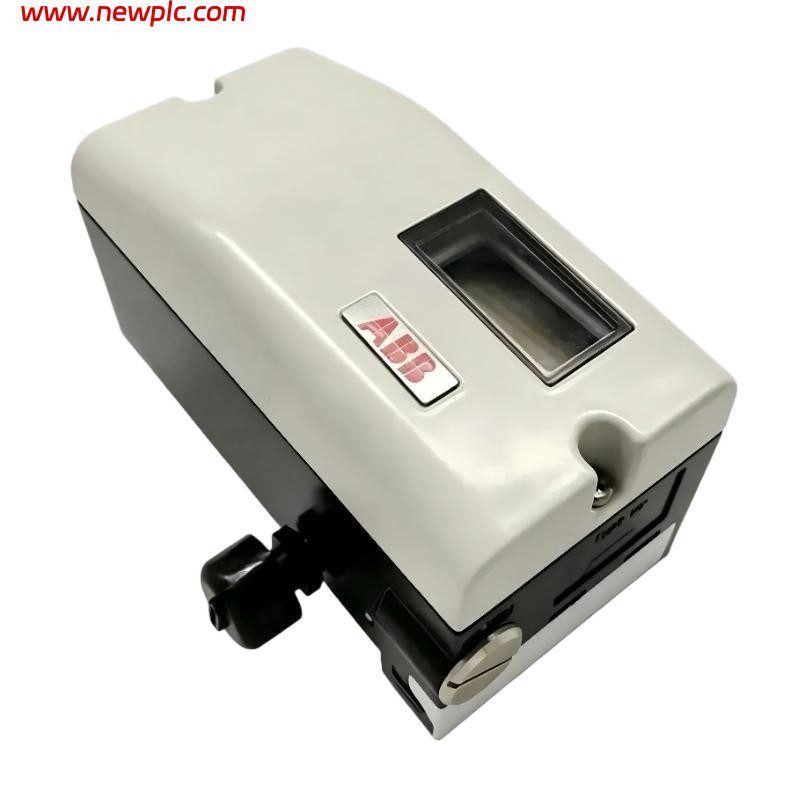

| Product Name | ABB TZIDC Valve Positioner |
| Part Number | V18345-1010551001 |
| Product Type | Electro-Pneumatic Smart Valve Positioner (TZIDC Series) |
| Manufacturer | ABB |
| Series | TZIDC (V18345) |
| Function | Converts 4–20 mA control signal into precise pneumatic valve actuator positioning |
| Application | Oil & gas / chemical / power plants / water treatment / process automation |
| Input Signal | 4–20 mA (two-wire loop powered) |
| Output | Pneumatic output to actuator (single or double acting depending on configuration) |
| Communication | HART (optional depending on variant) |
| Air Supply | 1.4–6 bar (20–90 psi) |
| Mounting Standard | NAMUR / IEC 534 / VDI/VDE 3845 |
| Housing Material | Aluminum alloy, epoxy-coated |
| Protection Rating | IP65 / NEMA 4X |
| Explosion Protection | Optional ATEX / IECEx (variant dependent) |
| Operating Temperature | -40°C to +85°C |
| Control Functions | Auto-calibration, self-tuning, diagnostics |
| Fail Action | Fail-safe or fail-freeze (depends on ordering code) |
| Connections | M20 × 1.5 cable entry, 1/4-18 NPT air connection |
| Parameter | Description |
|---|---|
| Dimensions (W × H × D) | Approx. 284 × 128 × 45 mm (varies by configuration) |
| Weight | Approx. 0.7–1.7 kg (typical configuration ~1.7 kg) |
FAQ
FAQ
Q1: What is ABB V18345-1010551001 used for?
A1: It is a smart valve positioner used to precisely control pneumatic control valve position using a 4–20 mA signal.
Q2: What series does it belong to?
A2: It belongs to ABB’s TZIDC (V18345) intelligent electro-pneumatic positioner series.
Q3: Is it a PLC or controller?
A3: No, it is a field device installed on control valves, not a PLC.
Q4: What signal does it use?
A4: It uses a standard 4–20 mA analog control signal.
Q5: Does it support HART communication?
A5: Yes, HART support is available depending on configuration.
Q6: What is the air supply range?
A6: 1.4–6 bar (20–90 psi).
Q7: What are the physical dimensions?
A7: Approximately 284 × 128 × 45 mm, depending on mounting configuration.
Q8: What is its weight?
A8: Typically around 0.7–1.7 kg depending on options.
