Technical Specifications
| Parameter | Description |
|---|---|

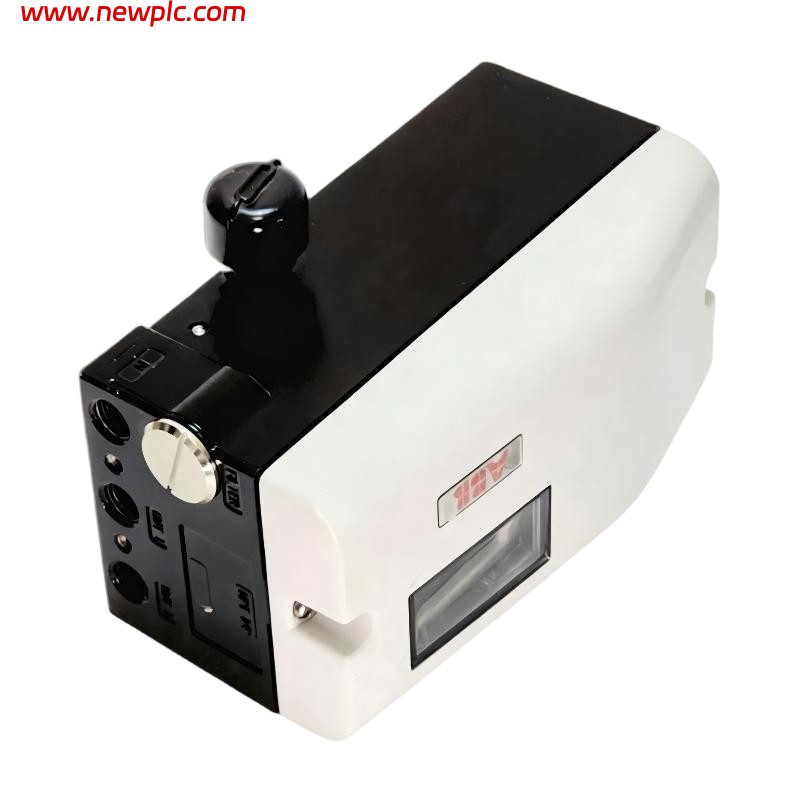

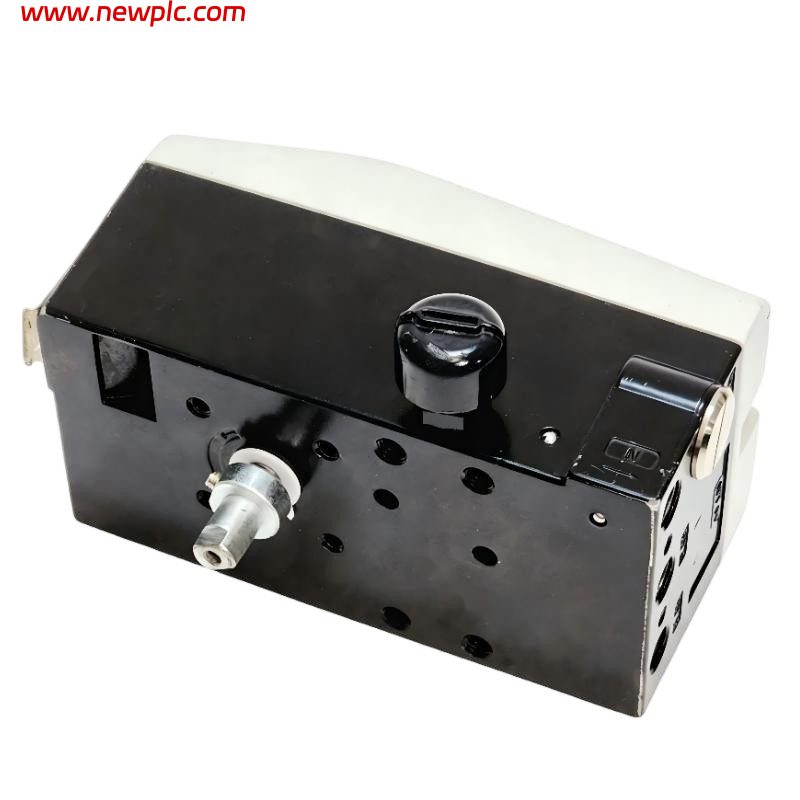

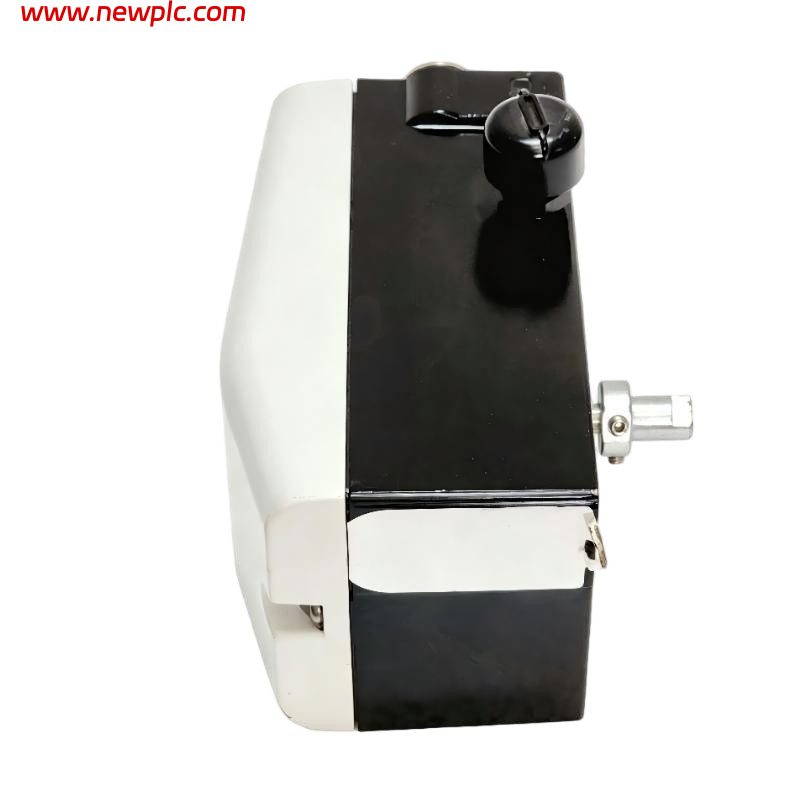

| Product Name | ABB TZIDC Valve Positioner |
| Part Number | V18345-1020521001 |
| Product Type | Electro-Pneumatic Smart Valve Positioner |
| Manufacturer | ABB |
| Series | TZIDC |
| Function | Intelligent digital valve positioner for precise positioning of pneumatic control valve actuators |
| Application | Oil & gas, petrochemical, power generation, water treatment, and industrial process automation |
| Input Signal | 4–20 mA, two-wire technology |
| Communication Protocol | HART |
| Output Signal | Pneumatic output to actuator |
| Actuator Type | Single-acting or double-acting pneumatic actuators |
| Air Supply Pressure | 1.4–6 bar (20–90 psi) |
| Positioning Accuracy | ≤ 0.5% |
| Repeatability | ≤ 0.3% |
| Mounting Standard | NAMUR VDI/VDE 3845, IEC 60534-6 |
| Housing Material | Aluminum alloy, epoxy-coated |
| Protection Rating | IP65 / NEMA 4X |
| Explosion Protection | Configuration-dependent (ATEX / IECEx options available) |
| Ambient Temperature | -40°C to +85°C |
| Diagnostics | Self-monitoring, auto-calibration, adaptive control |
| Electrical Connection | Cable gland entry |
| Pneumatic Connection | G1/4 or 1/4-18 NPT (depending on configuration) |
| Display | Integrated LCD display and local operating keys |
| Control Features | Automatic commissioning, valve diagnostics, and travel monitoring |
| Parameter | Description |
|---|---|
| Dimensions | 170 × 110 × 110 mm |
| Weight | 1.7 kg |
FAQ
FAQ
Q1: What is ABB V18345-1020521001?
A1: It is a TZIDC intelligent electro-pneumatic valve positioner designed for accurate control of pneumatic valve actuators.
Q2: What communication protocol does it support?
A2: It supports HART communication for remote configuration and diagnostics.
Q3: What type of actuators can it control?
A3: It is suitable for both single-acting and double-acting pneumatic actuators.
Q4: What is the input signal range?
A4: Standard 4–20 mA analog input.
Q5: What are the environmental ratings?
A5: IP65 / NEMA 4X protection with an operating temperature range of -40°C to +85°C.
Q6: Does it include diagnostic functions?
A6: Yes, it provides automatic calibration, self-diagnostics, valve monitoring, and adaptive control.
Q7: What are the physical dimensions?
A7: 170 × 110 × 110 mm.
Q8: What is the weight?
A8: 1.7 kg.
