Technical Specifications
| Parameter | Description |
|---|---|

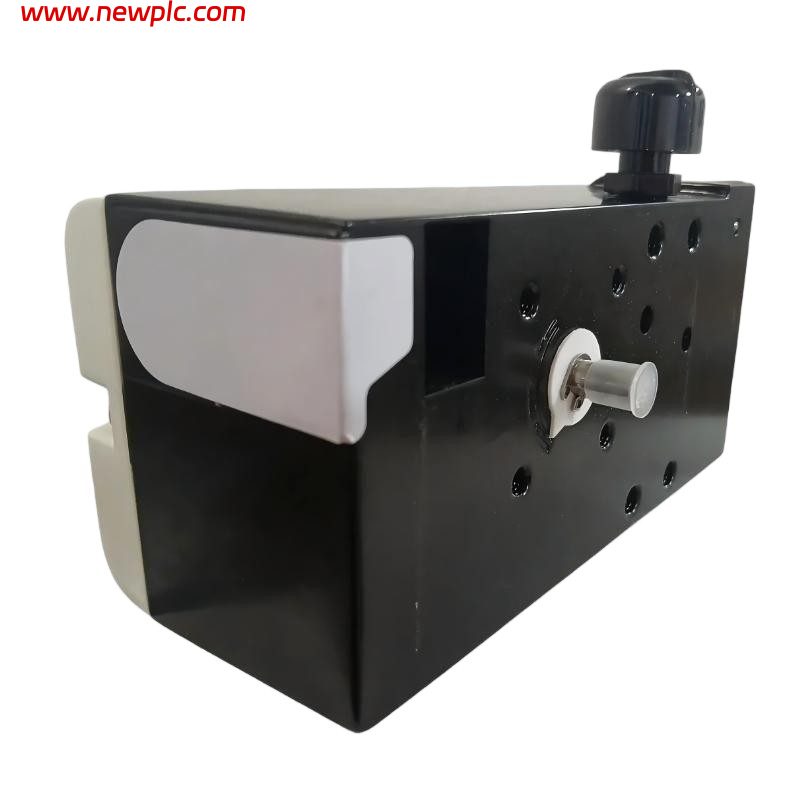

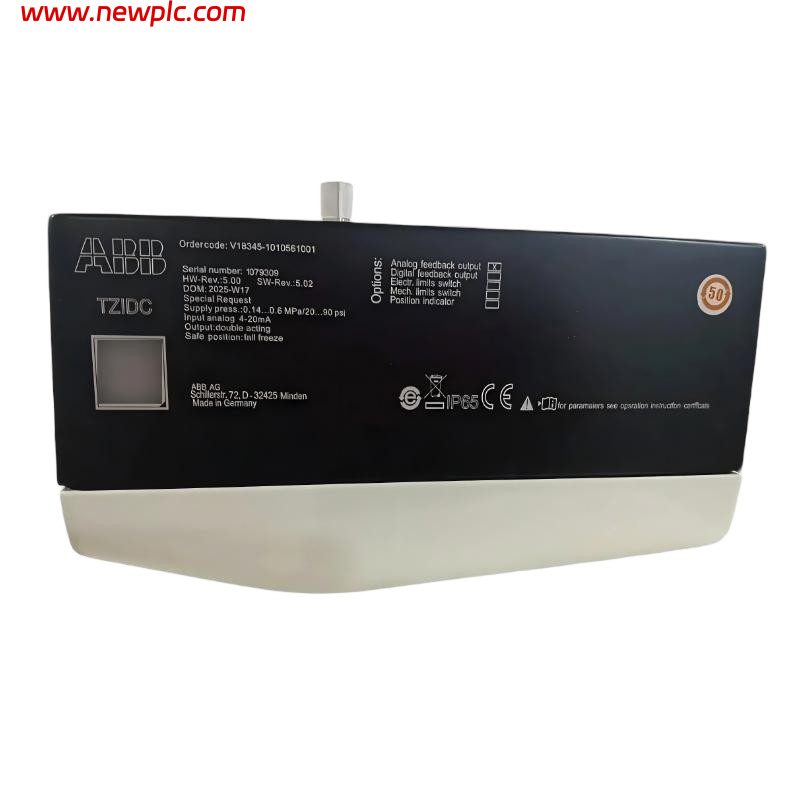

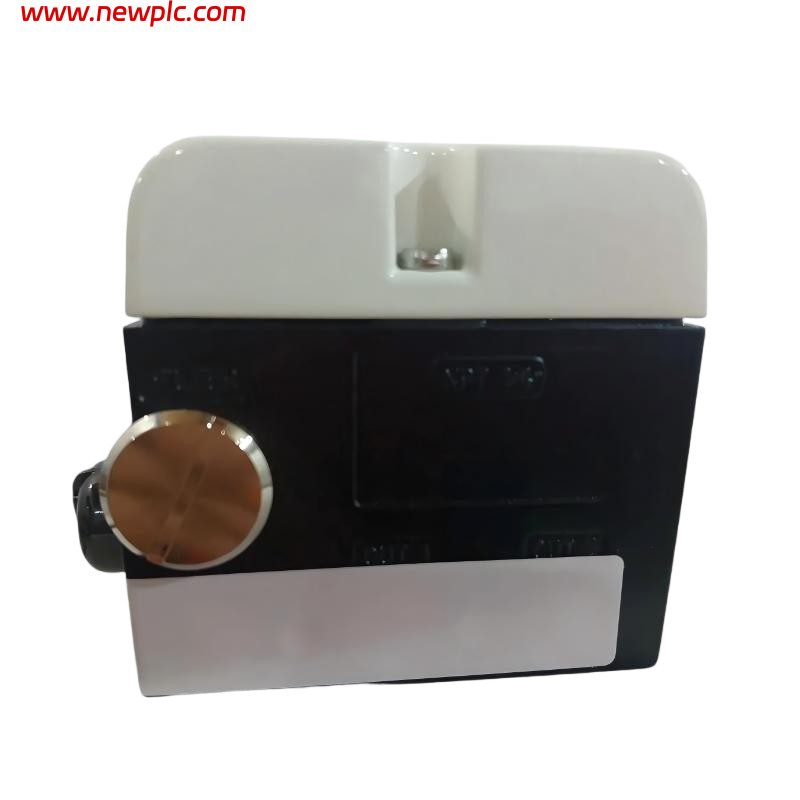

| Product Name | ABB TZIDC Intelligent Electro-Pneumatic Positioner |
| Part Number | V18345-2010160001 |
| Product Type | Digital Electro-Pneumatic Valve Positioner |
| Manufacturer | ABB |
| Series | TZIDC |
| Function | Intelligent valve positioner that converts an electrical control signal into pneumatic actuator movement for precise control of process valves |
| Application | Oil & Gas, Chemical, Power Generation, Water Treatment, Pulp & Paper, Pharmaceutical, and General Process Automation |
| Control Principle | Microprocessor-based adaptive control with automatic commissioning and self-calibration |
| Mounting Type | Aluminum housing for linear actuators according to DIN/IEC 534 / NAMUR or rotary actuators according to VDI/VDE 3845 |
| Input Signal | 4–20 mA DC, 2-wire |
| Communication | HART communication supported |
| Output | Pneumatic output for actuator control |
| Air Supply Pressure | 1.4–6 bar (20–90 psi) |
| Position Feedback | Continuous valve position measurement |
| Actuator Type | Linear and rotary pneumatic actuators |
| Housing Material | Aluminum alloy, coated |
| Protection Rating | IP65 |
| Display | Integrated LCD display with local configuration keys |
| Operating Temperature | -40°C to +85°C (depending on configuration) |
| Explosion Protection | Optional ATEX / IECEx versions available depending on configuration |
| Product Category | ABB Measurement & Analytics – TZIDC Valve Positioner |
| Dimensions | Approx. 250 × 150 × 100 mm |
| Weight | Approx. 1.7 kg |
FAQ
FAQ
Q1: What is the ABB V18345-2010160001?
A1: The ABB V18345-2010160001 is a TZIDC intelligent electro-pneumatic valve positioner used for accurate positioning of pneumatic control valves in industrial process applications.
Q2: What is the main function of this positioner?
A2: It receives a 4–20 mA control signal from a PLC, DCS, or process controller and converts it into a pneumatic output signal to adjust the valve actuator position accurately.
Q3: Is V18345-2010160001 a PLC module?
A3: No. It is not a PLC or DCS module. It is a field instrumentation device used for pneumatic valve control.
Q4: Which actuator types can the TZIDC positioner support?
A4: The TZIDC series supports both linear actuators (DIN/IEC 534 / NAMUR) and rotary actuators (VDI/VDE 3845).
Q5: Does V18345-2010160001 support HART communication?
A5: Yes. The TZIDC ordering structure includes versions with an FSK module for HART communication, allowing remote parameter setting and diagnostics.
Q6: What air supply pressure is required?
A6: The required instrument air supply pressure is 1.4–6 bar (20–90 psi).
Q7: Where is this ABB positioner commonly used?
A7: It is widely used in process industries such as power plants, oil & gas facilities, chemical plants, water treatment systems, and industrial valve control applications.
Q8: What are the dimensions and weight of V18345-2010160001?
A8: The approximate dimensions are 250 × 150 × 100 mm, and the weight is approximately 1.7 kg.
