Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |

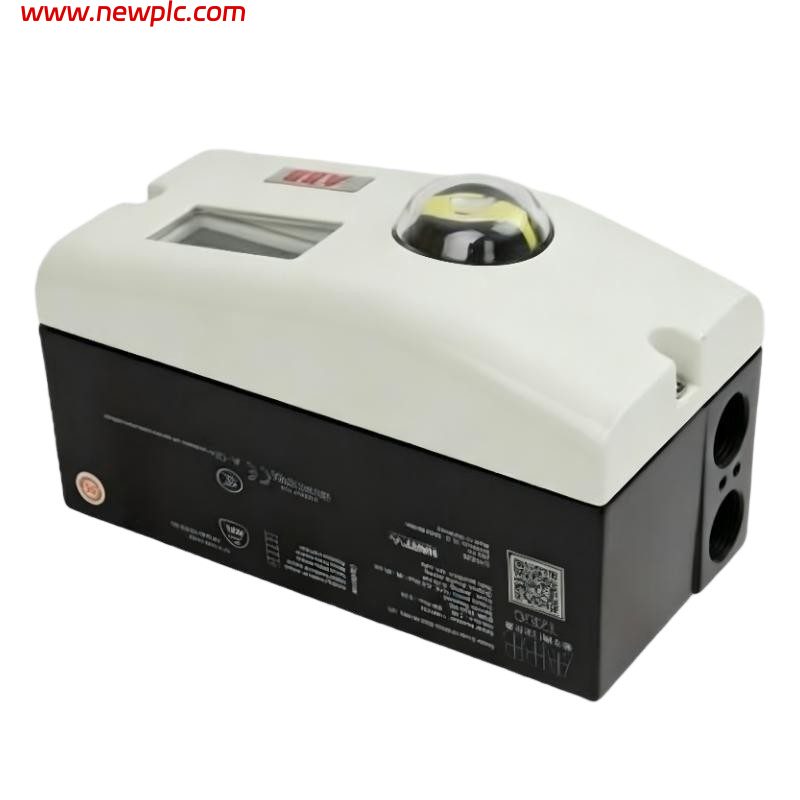

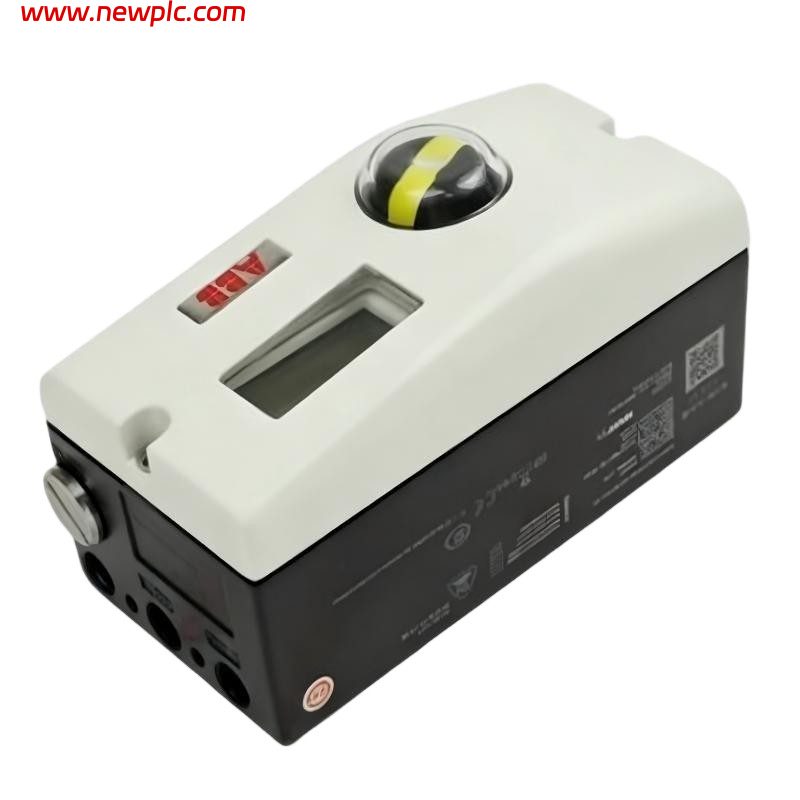

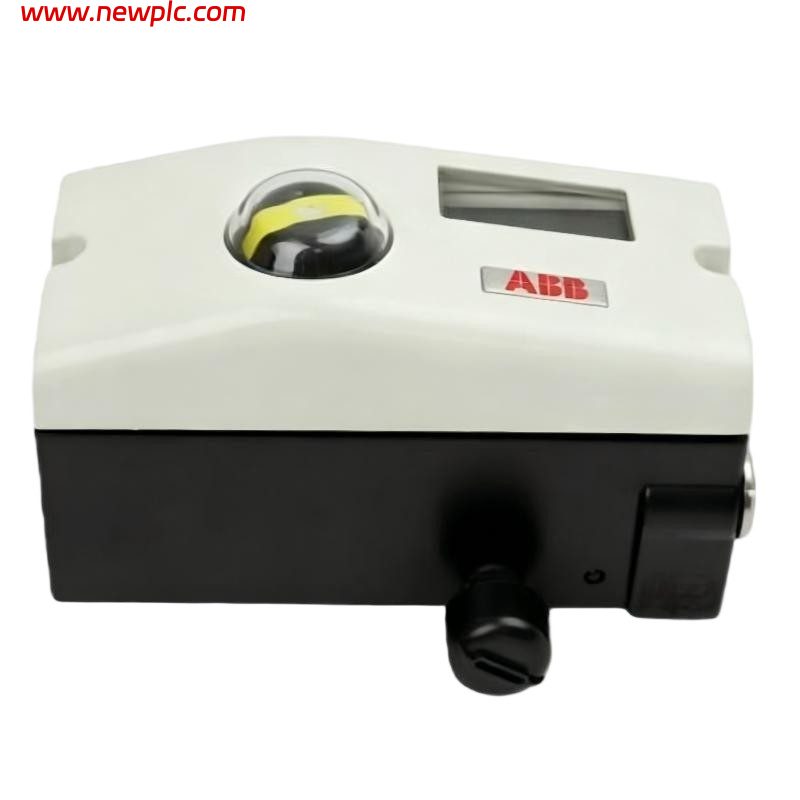

| Product Model | V18345-2010521001 |
| Product Type | Intelligent Electro-Pneumatic Positioner |
| Series | TZIDC Digital Positioner |
| Function | Controls pneumatic valve actuators by converting electrical control signals into precise pneumatic positioning commands |
| Input Signal | 4–20 mA, 2-wire |
| Communication Interface | LKS adapter connection (HART communication optional depending on configuration) |
| Actuator Type | Linear and rotary pneumatic actuators |
| Operating Principle | Digital electro-pneumatic valve position control |
| Housing Material | Aluminium housing, varnished, with mechanical position indicator |
| Mounting Standard | DIN/IEC 534 for linear actuators; VDI/VDE 3845 NAMUR for rotary actuators |
| Explosion Protection | Without explosion protection option |
| Output / Safety Position | Double-acting actuator, fail freeze function |
| Pneumatic Connections | Cable connection: 1/2-14 NPT; Air connection: 1/4-18 NPT |
| Position Feedback | Analog position feedback module, 4–20 mA, 2-wire |
| Operating Temperature | Approx. -40°C to +85°C |
| Protection Rating | IP65 / IP66 (depending on installation configuration) |
| Application | Process control valves, pneumatic actuators, oil & gas, chemical, power generation, and industrial automation systems |
| Dimensions | Approx. 210 × 120 × 150 mm |
| Weight | Approx. 1.7 kg |
| Shipping Weight | Approx. 3.0 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the ABB V18345-2010521001 used for?
The ABB V18345-2010521001 is used to control pneumatic control valves by accurately adjusting actuator position according to the received 4–20 mA control signal. It is commonly installed in industrial process automation systems.
Q2: What type of product is the V18345-2010521001?
The V18345-2010521001 is a TZIDC intelligent electro-pneumatic positioner designed for valve actuator control applications.
Q3: What input signal does the ABB V18345-2010521001 support?
The positioner supports a standard 4–20 mA two-wire input signal, allowing direct integration with PLC, DCS, and process control systems.
Q4: What are the dimensions and weight of the V18345-2010521001?
The positioner has approximate dimensions of 210 × 120 × 150 mm and weighs approximately 1.7 kg.
Q5: Which actuators are compatible with the V18345-2010521001?
The unit supports both linear actuators according to DIN/IEC 534 standards and rotary actuators according to VDI/VDE 3845 NAMUR mounting standards.
Q6: Does the V18345-2010521001 support position feedback?
Yes. This configuration includes an analog position feedback module with a 4–20 mA two-wire output, allowing the valve position to be monitored remotely.
Q7: What should be checked before installing the ABB V18345-2010521001?
Before installation, verify the actuator type, mounting standard, pneumatic connection size, input signal wiring, air supply quality, and compatibility with the control system.
Q8: What are the advantages of the ABB V18345-2010521001?
The positioner provides accurate valve control, compact design, reliable digital adjustment, easy commissioning, stable operation, and compatibility with a wide range of pneumatic actuators used in industrial processes.
