Technical Specifications
| Parameter | Description |
|---|---|

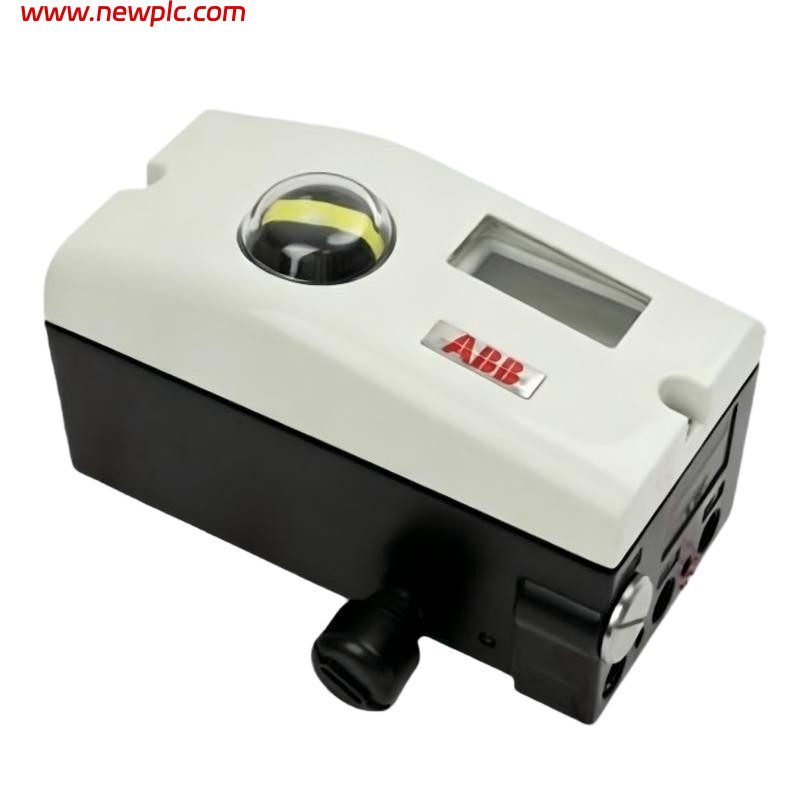

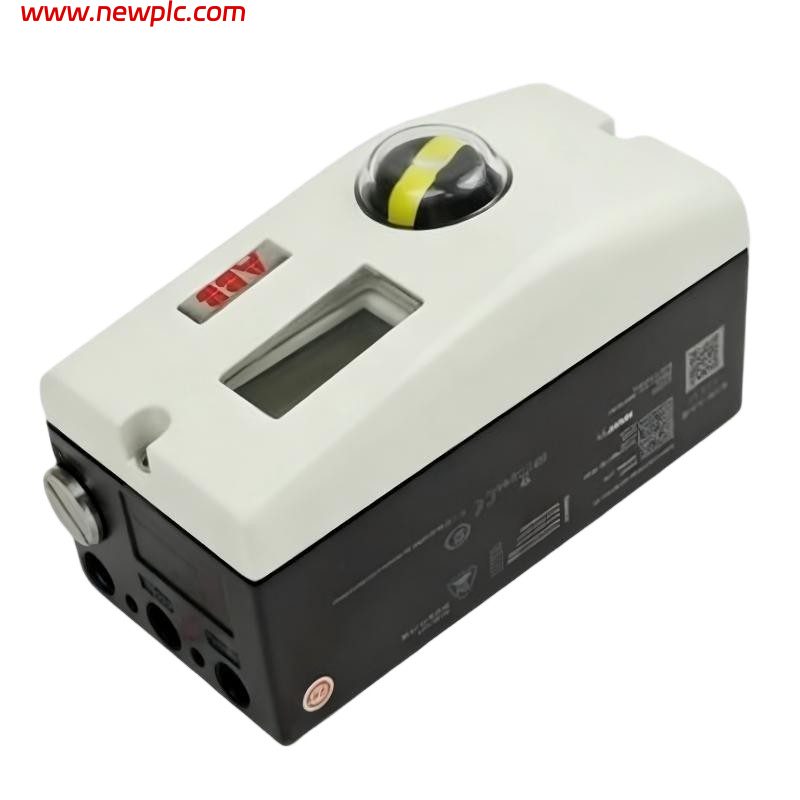

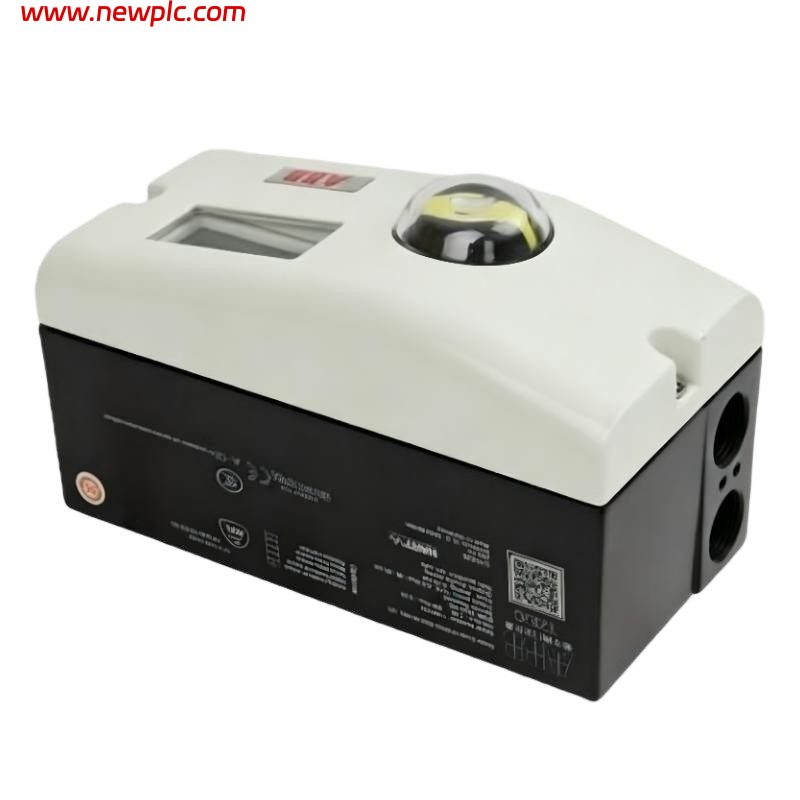

| Product Name | ABB TZIDC Valve Positioner |
| Part Number | V18345-2011150001 |
| Product Type | Electro-Pneumatic Intelligent Valve Positioner |
| Manufacturer | ABB |
| Series | TZIDC (V18345) |
| Function | Intelligent digital positioner for precise positioning of pneumatic control valve actuators |
| Application | Oil & Gas, Chemical, Petrochemical, Power Generation, Water Treatment, and Process Industries |
| Input Signal | 4–20 mA, two-wire |
| Communication Protocol | HART (via optional FSK module) |
| Actuator Type | Double-acting pneumatic actuator |
| Fail Action | Fail-safe |
| Output Signal | Pneumatic output to actuator |
| Air Supply Pressure | 1.4–6 bar (20–90 psi) |
| Positioning Accuracy | ≤0.5% of span |
| Repeatability | ≤0.3% of span |
| Housing Material | Varnished aluminum |
| Mounting Standard | DIN / IEC 534 / NAMUR, VDI / VDE 3845 |
| Electrical Connection | M20 × 1.5 cable entry |
| Pneumatic Connection | G1/4 |
| Protection Rating | IP65 / NEMA 4X |
| Explosion Protection | ATEX II 2G Ex ib IIC T6/T4 Gb |
| Position Feedback | None (standard internal position sensing only) |
| Diagnostics | Auto-calibration, self-monitoring, adaptive control, valve diagnostics |
| Operating Temperature | -40°C to +85°C |
| Display | LCD display with local operating keys |
| Dimensions | 170 × 110 × 110 mm |
| Weight | 1.7 kg |
FAQ
FAQ
Q1: What is ABB V18345-2011150001?
A1: It is a TZIDC intelligent electro-pneumatic valve positioner designed for accurate control of double-acting pneumatic control valves.
Q2: Does it support HART communication?
A2: Yes. It supports HART communication through the optional FSK communication interface.
Q3: What type of actuator is supported?
A3: This model is configured for double-acting pneumatic actuators with fail-safe operation.
Q4: Does it include an analog position feedback module?
A4: No. This configuration does not include the optional 4–20 mA analog position feedback module.
Q5: What are the connection types?
A5: It uses an M20 × 1.5 electrical cable entry and G1/4 pneumatic connections.
Q6: What protection rating does it provide?
A6: It is rated IP65 / NEMA 4X and carries ATEX II 2G Ex ib IIC T6/T4 Gb intrinsic safety approval.
Q7: What are its physical dimensions?
A7: 170 × 110 × 110 mm.
Q8: What is its weight?
A8: 1.7 kg.
