Technical Specifications
| Parameter | Description |
|---|---|

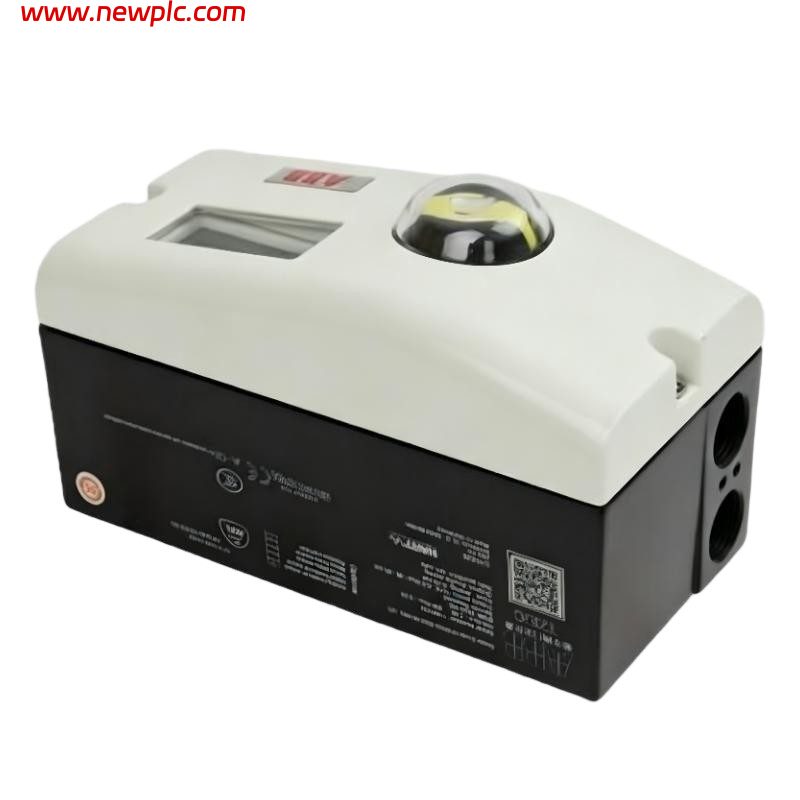

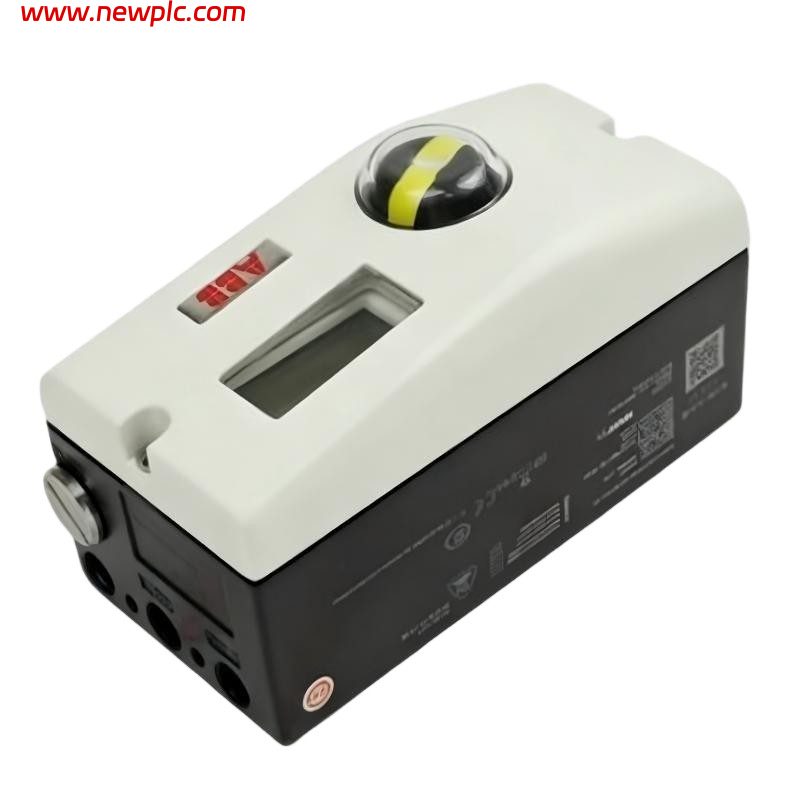

| Product Name | ABB TZIDC Valve Positioner |
| Part Number | V18345-7020421001 |
| Product Type | Electro-Pneumatic Smart Valve Positioner (TZIDC Series) |
| Manufacturer | ABB |
| Series | TZIDC (V18345) |
| Function | Converts 4–20 mA control signal into precise pneumatic actuator positioning |
| Application | Oil & gas / chemical / power plants / water treatment / process automation |
| Input Signal | 4–20 mA (two-wire loop powered) |
| Output | Pneumatic output to actuator (single or double acting depending on configuration) |
| Communication | HART (variant dependent) |
| Air Supply | 1.4–6 bar (20–90 psi) |
| Mounting Standard | NAMUR / IEC 534 / VDI/VDE 3845 |
| Housing Material | Aluminum alloy, epoxy-coated |
| Protection Rating | IP65 / NEMA 4X |
| Explosion Protection | Optional ATEX / IECEx (variant dependent) |
| Operating Temperature | -40°C to +85°C |
| Control Functions | Auto-calibration, self-tuning, diagnostics |
| Fail Action | Fail-safe / fail-freeze (depending on ordering code) |
| Connections | 1/2-14 NPT cable entry, 1/4-18 NPT air connection (typical TZIDC configuration) |
| Parameter | Description |
|---|---|
| Dimensions (W × H × D) | Approx. 170 × 110 × 110 mm (variant dependent) |
| Weight | Approx. 1.7–5 kg (depending on configuration) |
FAQ
FAQ
Q1: What is ABB V18345-7020421001 used for?
A1: It is used to control pneumatic valve actuators by converting a 4–20 mA signal into precise valve positioning.
Q2: Which series does it belong to?
A2: It belongs to the ABB TZIDC (V18345) smart electro-pneumatic valve positioner series.
Q3: Is it a PLC or control system?
A3: No, it is a field-mounted valve positioner used on control valves.
Q4: What is the input signal?
A4: Standard 4–20 mA analog signal.
Q5: Does it support HART communication?
A5: Yes, depending on configuration.
Q6: What is the air supply range?
A6: 1.4–6 bar (20–90 psi).
Q7: What are the physical dimensions?
A7: Approximately 170 × 110 × 110 mm (varies by variant).
Q8: What is its weight?
A8: Approximately 1.7–5 kg depending on configuration.
