Technical Specifications
| Parameter | Description |
|---|---|

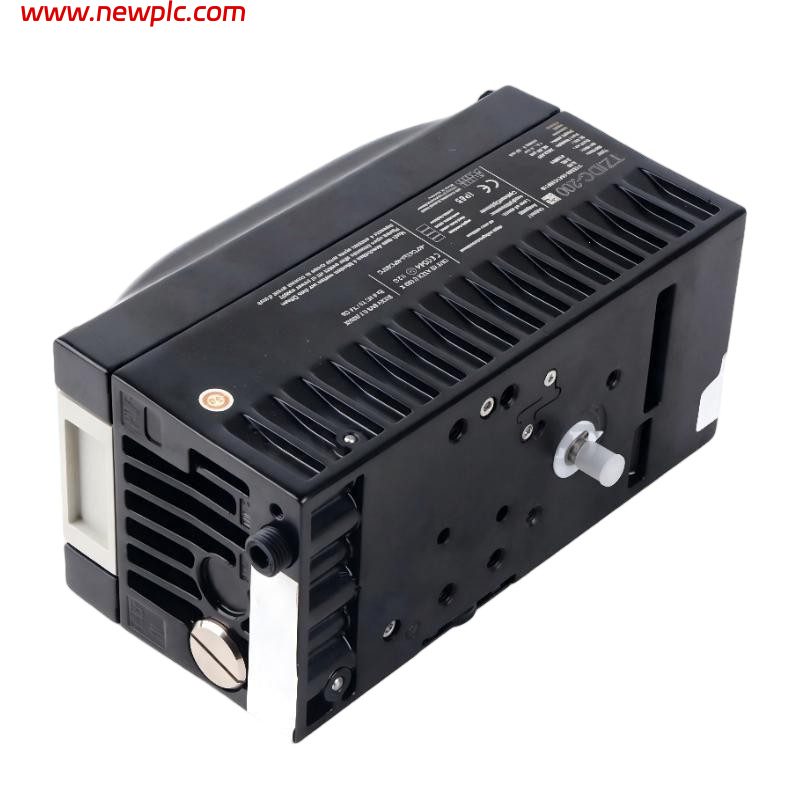

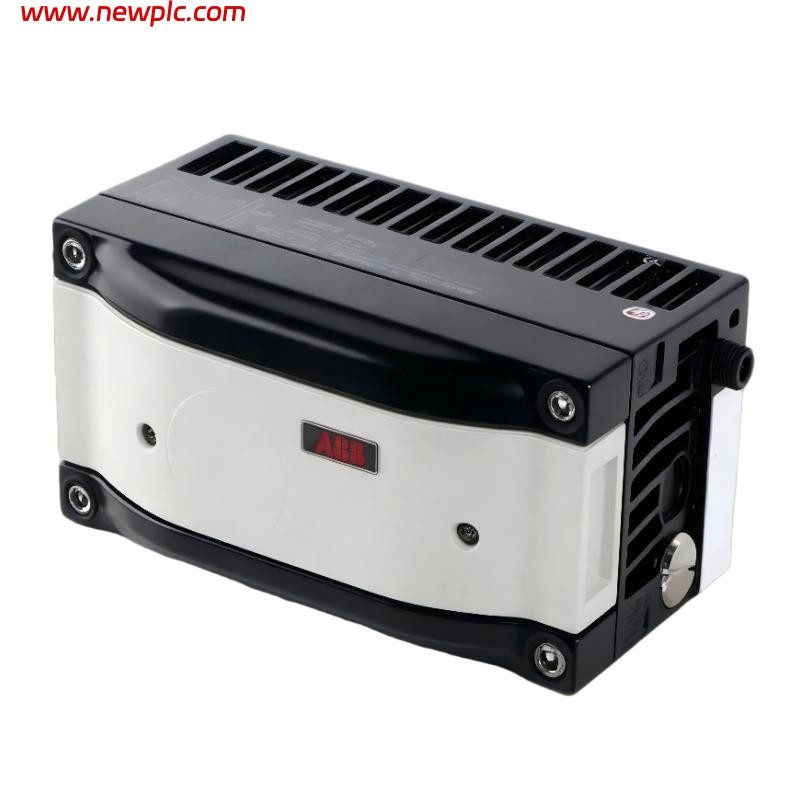

| Product Name | ABB TZIDC-200 Valve Positioner |
| Part Number | V18348-10111300110 |
| Product Type | Electro-Pneumatic Intelligent Valve Positioner |
| Manufacturer | ABB |
| Series | TZIDC-200 (V18348) |
| Function | Intelligent digital positioner for precise positioning of pneumatic control valve actuators |
| Application | Oil & Gas, Chemical, Petrochemical, Power Generation, Water Treatment, and General Process Automation |
| Input Signal | 4–20 mA, two-wire |
| Communication Protocol | HART |
| Actuator Type | Single-acting pneumatic actuator |
| Fail Action | Fail-safe |
| Output Signal | Pneumatic output to actuator |
| Air Supply Pressure | 1.4–6 bar (20–90 psi) |
| Positioning Accuracy | ≤0.5% of span |
| Repeatability | ≤0.3% of span |
| Housing Material | Epoxy-coated aluminum |
| Mounting Standard | NAMUR VDI/VDE 3845, IEC 60534-6 |
| Electrical Connection | M20 × 1.5 cable entry |
| Pneumatic Connection | G1/4 |
| Protection Rating | IP66 / IP67, NEMA 4X |
| Explosion Protection | ATEX Ex ia IIC T4/T5/T6 Gb (Intrinsically Safe) |
| Position Feedback | Integrated 4–20 mA analog position feedback module |
| Diagnostics | Auto-calibration, self-monitoring, adaptive control, valve diagnostics |
| Operating Temperature | -40°C to +85°C |
| Display | LCD display with integrated local operator panel |
| Dimensions | 170 × 110 × 110 mm |
| Weight | 1.8 kg |
FAQ
FAQ
Q1: What is ABB V18348-10111300110?
A1: It is a TZIDC-200 intelligent electro-pneumatic valve positioner designed for accurate positioning of single-acting pneumatic control valves.
Q2: Does it support HART communication?
A2: Yes. It supports HART communication for remote configuration, diagnostics, and asset management.
Q3: What type of actuator is supported?
A3: It is designed for single-acting pneumatic actuators with fail-safe operation.
Q4: Does it include analog position feedback?
A4: Yes. This configuration includes an integrated 4–20 mA analog position feedback module.
Q5: What explosion protection does it provide?
A5: It is configured with ATEX Ex ia intrinsically safe certification for hazardous-area installations.
Q6: What are the connection types?
A6: It uses an M20 × 1.5 electrical cable entry and G1/4 pneumatic connections.
Q7: What are its physical dimensions?
A7: 170 × 110 × 110 mm.
Q8: What is its weight?
A8: 1.8 kg.
