Technical Specifications
| Parameter | Description |
|---|---|

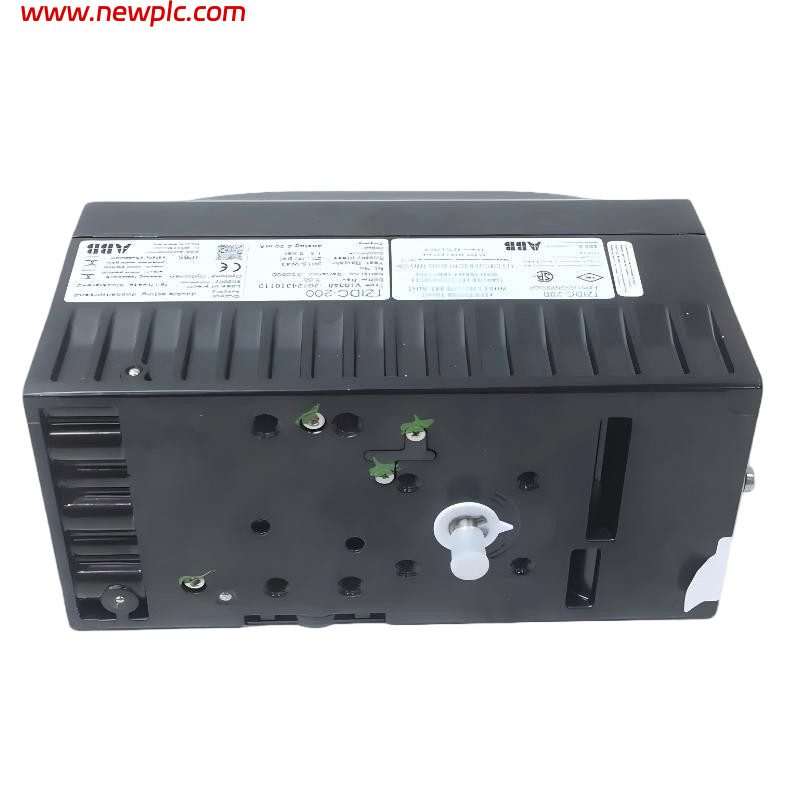

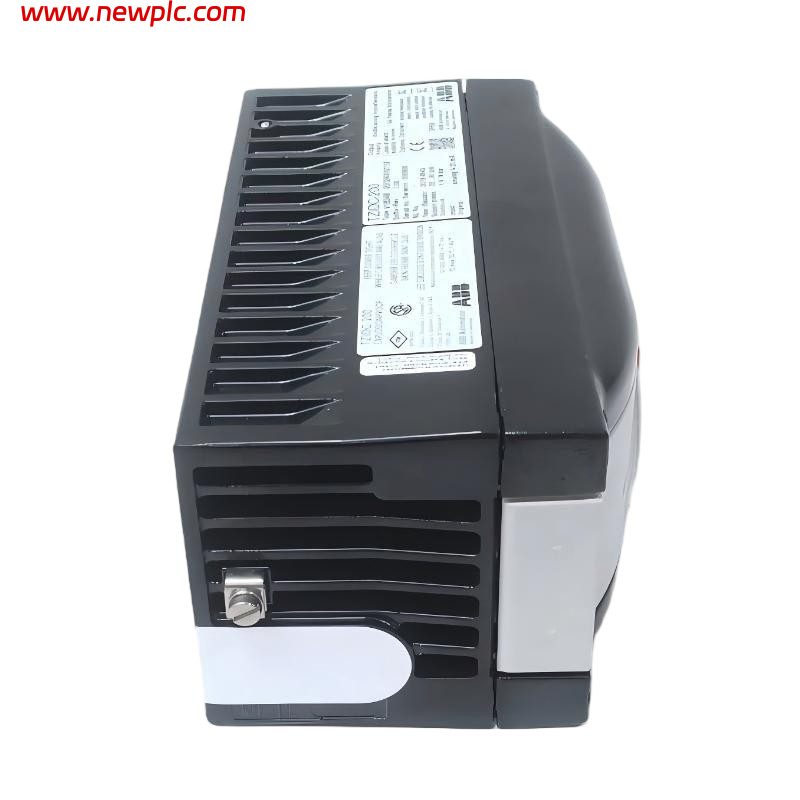

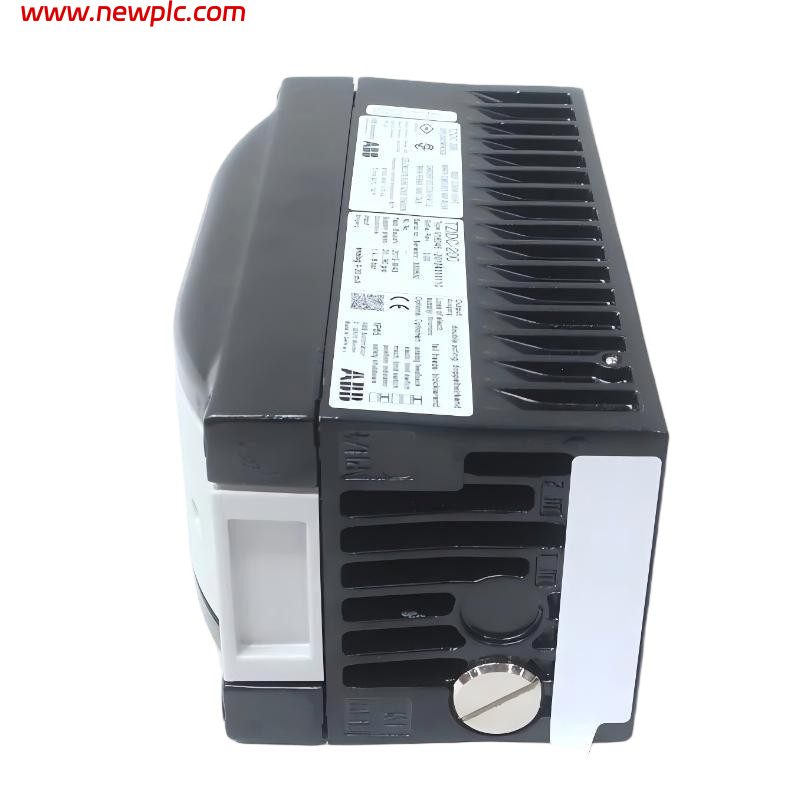

| Product Name | ABB TZIDC-200 Valve Positioner |
| Part Number | V18348-10113310110 |
| Product Type | Electro-Pneumatic Intelligent Valve Positioner |
| Manufacturer | ABB |
| Series | TZIDC-200 (V18348) |
| Function | Intelligent digital positioner for precise positioning of pneumatic control valve actuators |
| Application | Oil & Gas, Chemical, Petrochemical, Power Generation, Water Treatment, and General Process Automation |
| Input Signal | 4–20 mA, two-wire |
| Communication Protocol | HART |
| Actuator Type | Single-acting pneumatic actuator |
| Fail Action | Fail-safe |
| Output Signal | Pneumatic output to actuator |
| Air Supply Pressure | 1.4–6 bar (20–90 psi) |
| Positioning Accuracy | ≤0.5% of span |
| Repeatability | ≤0.3% of span |
| Housing Material | Varnished aluminum |
| Mounting Standard | DIN / IEC 534 / NAMUR, VDI / VDE 3845 |
| Electrical Connection | 1/2-14 NPT |
| Pneumatic Connection | 1/4-18 NPT |
| Protection Rating | IP65 / NEMA 4X |
| Explosion Protection | ATEX Ex ib + Ex d IIC T6 (Intrinsic Safety + Flameproof) |
| Position Feedback | Plug-in 4–20 mA analog position feedback module |
| Diagnostics | Auto-calibration, self-monitoring, valve diagnostics, adaptive control |
| Operating Temperature | -40°C to +85°C |
| Display | LCD display with integrated local operator panel |
| Dimensions | 170 × 110 × 110 mm |
| Weight | 1.8 kg |
FAQ
FAQ
Q1: What is ABB V18348-10113310110?
A1: It is a TZIDC-200 intelligent electro-pneumatic valve positioner designed for precise positioning of single-acting pneumatic control valves.
Q2: Does it support HART communication?
A2: Yes. HART communication is standard, allowing remote configuration, diagnostics, and asset management.
Q3: What type of actuator is supported?
A3: It is configured for single-acting pneumatic actuators with fail-safe operation.
Q4: Does it include analog position feedback?
A4: Yes. It includes a plug-in 4–20 mA analog position feedback module.
Q5: What explosion protection does it provide?
A5: It is certified for ATEX Ex ib + Ex d IIC T6, combining intrinsic safety and flameproof protection for hazardous-area applications.
Q6: What are the connection types?
A6: It uses a 1/2-14 NPT electrical connection and a 1/4-18 NPT pneumatic connection.
Q7: What are its physical dimensions?
A7: 170 × 110 × 110 mm.
Q8: What is its weight?
A8: 1.8 kg.
