Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | ABB XV C772 A102 3BHE032285R0102 |

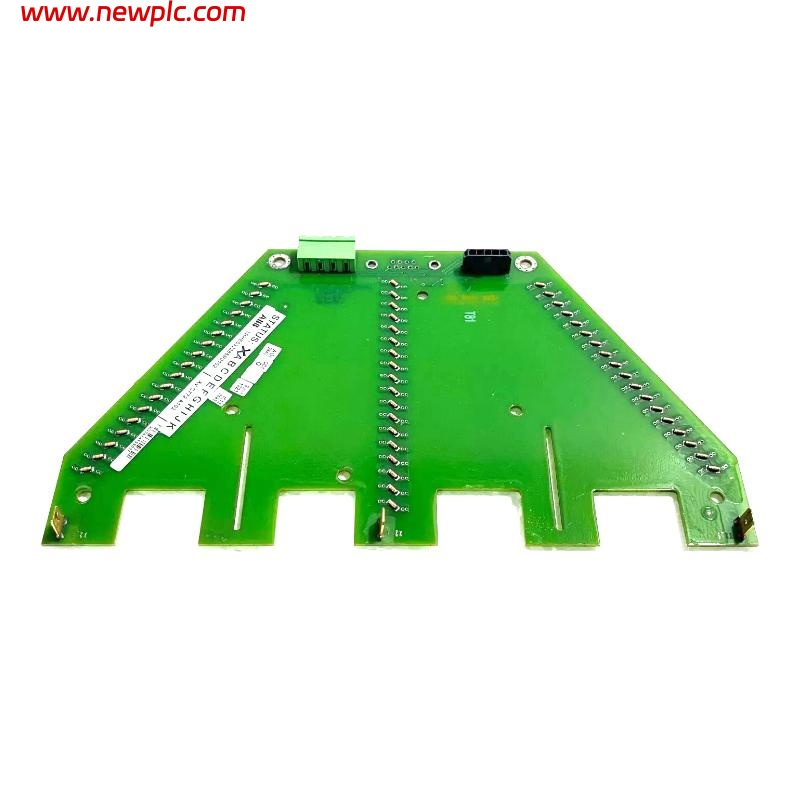

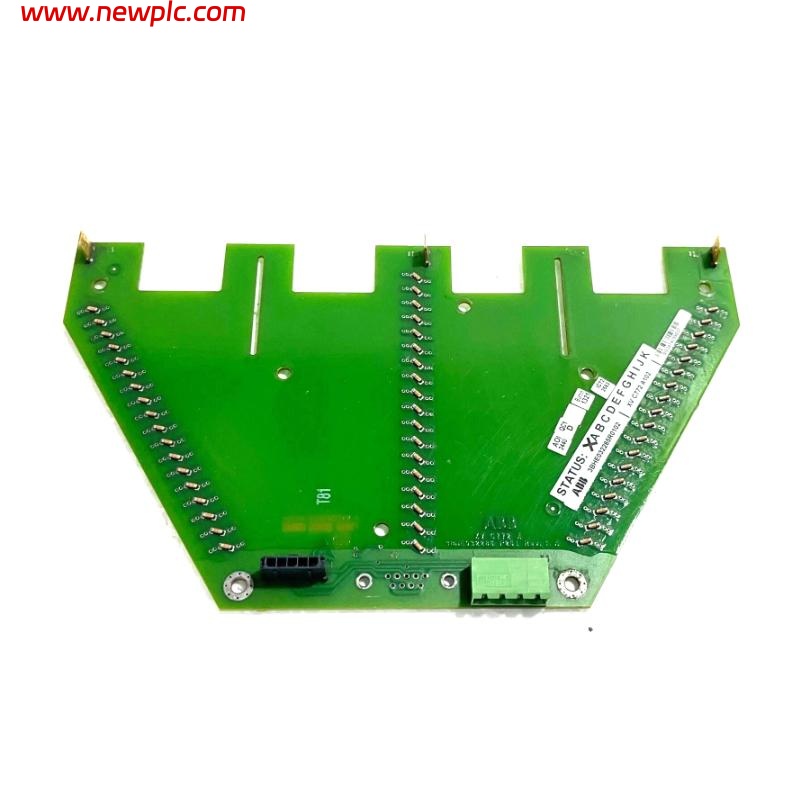

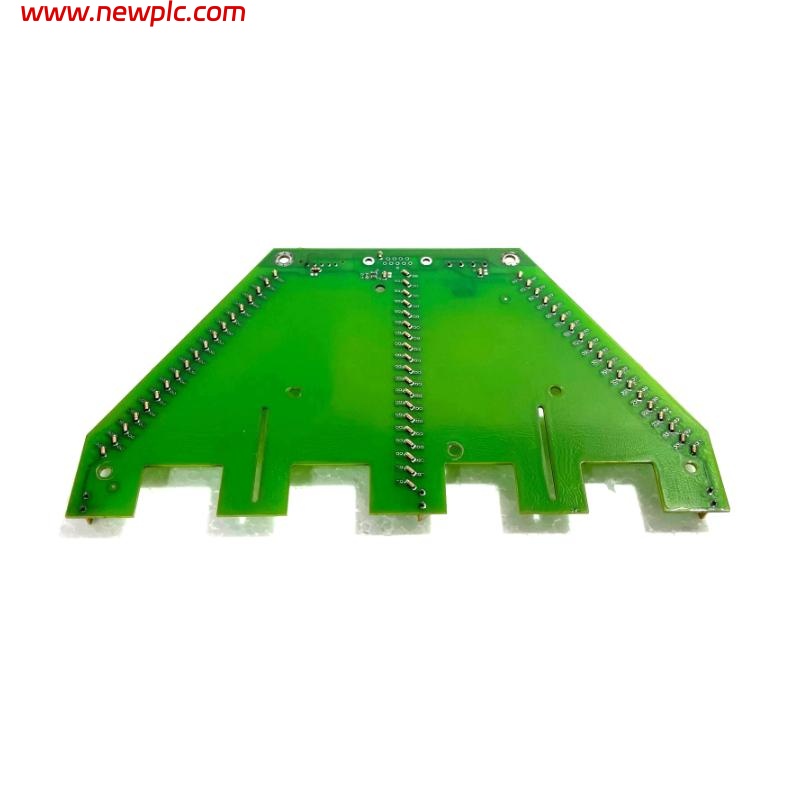

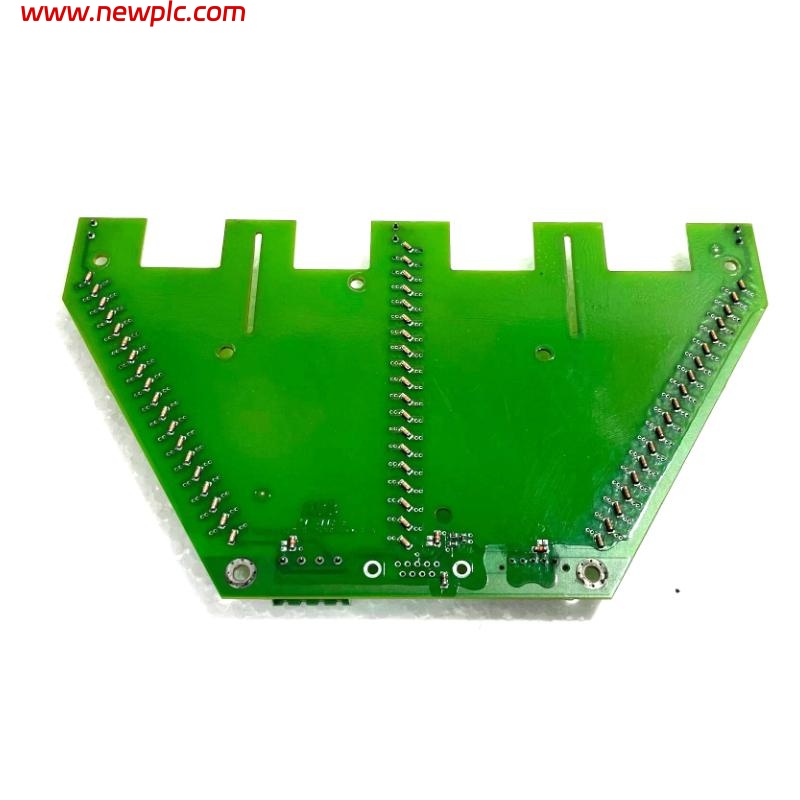

| Product Name | High Voltage Divider HVD Board Varnished |
| Type | High Voltage Divider Board (Varnished) |
| Function | Voltage division for high voltage monitoring |
| Mounting Method | Plug-in board |
| Insulation Treatment | Varnished coating |
| Operating Voltage | Suitable for high voltage systems |
| Application Areas | Industrial automation, substations, HV systems |
| Dimensions | 130 × 228 × 14 mm |
| Weight | 0.25 kg |
FAQ
FAQ
Q1: What is the purpose of the ABB XV C772 A102 board?
A1: It is used for voltage division measurement in high-voltage environments, mainly for monitoring voltage in protection systems.
Q2: Does this model include insulation protection?
A2: Yes, the board is varnished to provide enhanced insulation and environmental protection.
Q3: What industrial environments is it suitable for?
A3: It is suitable for high-voltage systems, substation automation, and industrial high-voltage control applications.
Q4: How is the board installed?
A4: It is designed for plug-in installation into compatible ABB system slots.
Q5: What are the standard dimensions of this HVD board?
A5: The dimensions are 130 × 228 × 14 mm, ideal for system integration.
Q6: What is the weight of the board?
A6: The board weighs 0.25 kg, making it suitable for lightweight setups.
Q7: Can it operate in harsh environments?
A7: The varnish treatment provides resistance suitable for environments with humidity or dust.
Q8: What are the main functional components of the board?
A8: The board mainly consists of a high-voltage resistor network, voltage sampling points, insulation coating, and signal transmission interface to achieve accurate voltage division and output.
