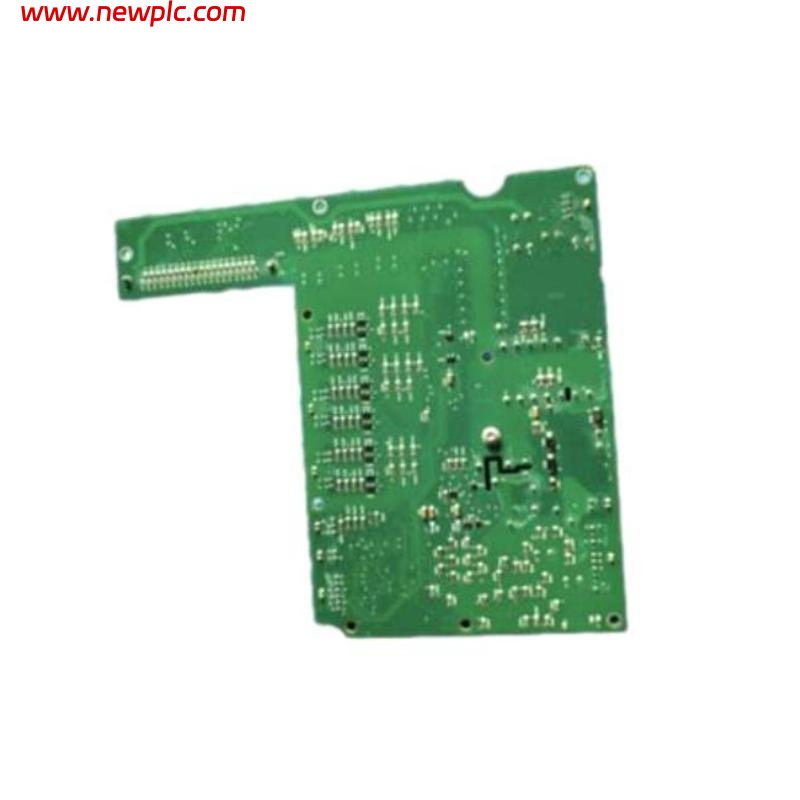

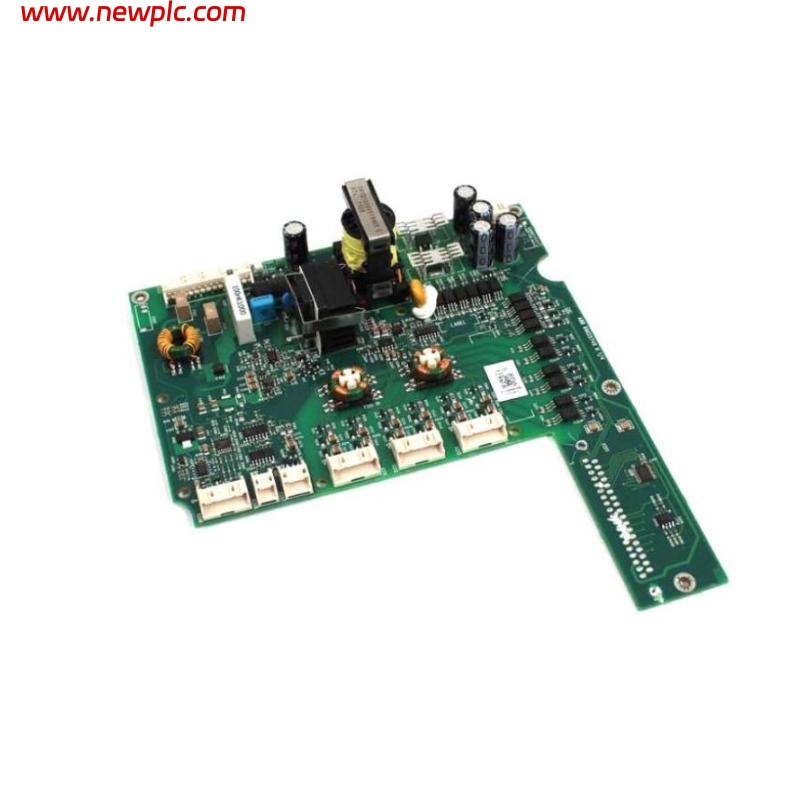

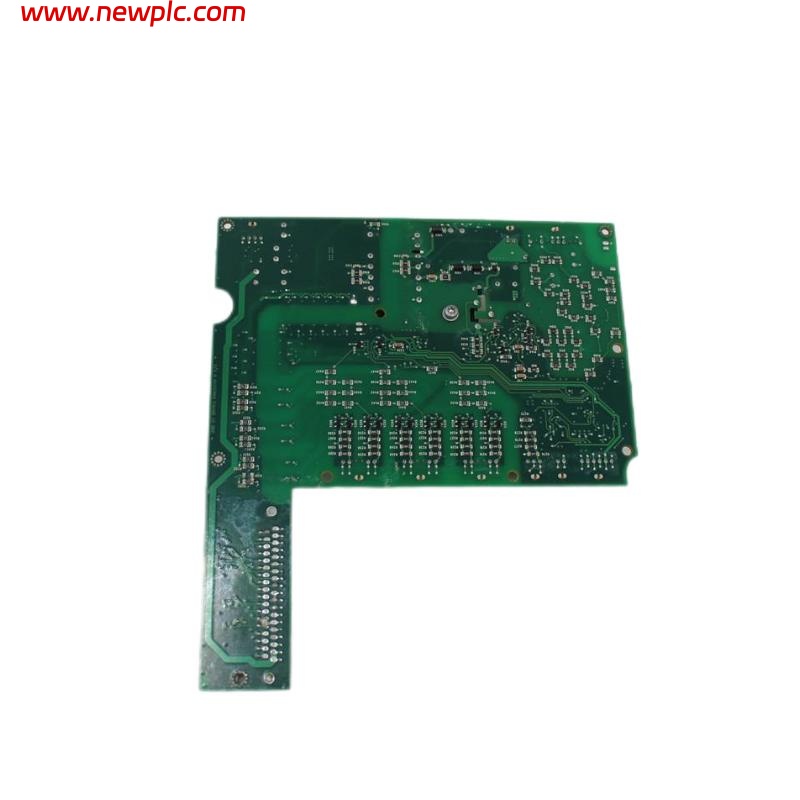

ABB ZINT-541 3AUA0000065896R Interface Board

FAQ

**1. How do I install the ABB ZINT-541 interface board?

• The installation process should follow the electrical diagrams and installation guidelines to ensure compatibility with other hardware and provide stable power. Ensure there are no static disturbances during installation.

**2. What communication protocols does the ABB ZINT-541 interface board support?

• This interface board supports RS-232 and RS-485 communication protocols, suitable for most automation equipment and systems.

**3. What is the operating temperature range of the ABB ZINT-541 interface board?

• The operating temperature range for this interface board is -20°C to +70°C.

**4. Is the ABB ZINT-541 interface board hot-swappable?

• Hot swapping is not recommended. Ensure the system is powered off when connecting or disconnecting the interface board.

**5. What are the power requirements for this interface board?

• The interface board requires a 24V DC power supply, with a power fluctuation tolerance of ±10%.

**6. How do I perform troubleshooting on the interface board?

• You can use the indicator lights and system diagnostic tools to identify and troubleshoot issues. Refer to the troubleshooting section in the technical manual for further guidance.

**7. Is the ABB ZINT-541 interface board compatible with other models of interface boards?

• The interface board is compatible with most ABB automation devices, but compatibility depends on the specific system configuration.

**8. Are there any special considerations when installing the ABB ZINT-541 interface board?

• Ensure all electrical connections are secure during installation, and protect against electrostatic damage. Use standard installation tools and avoid non-standard practices.
