Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Product Number | 330102-00-70-10-02-00 |

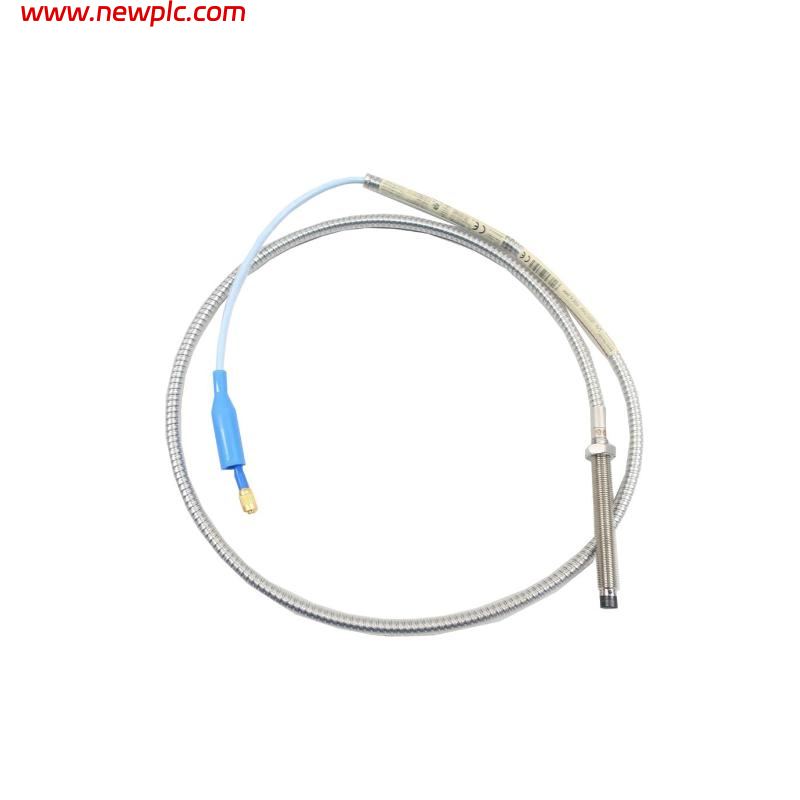

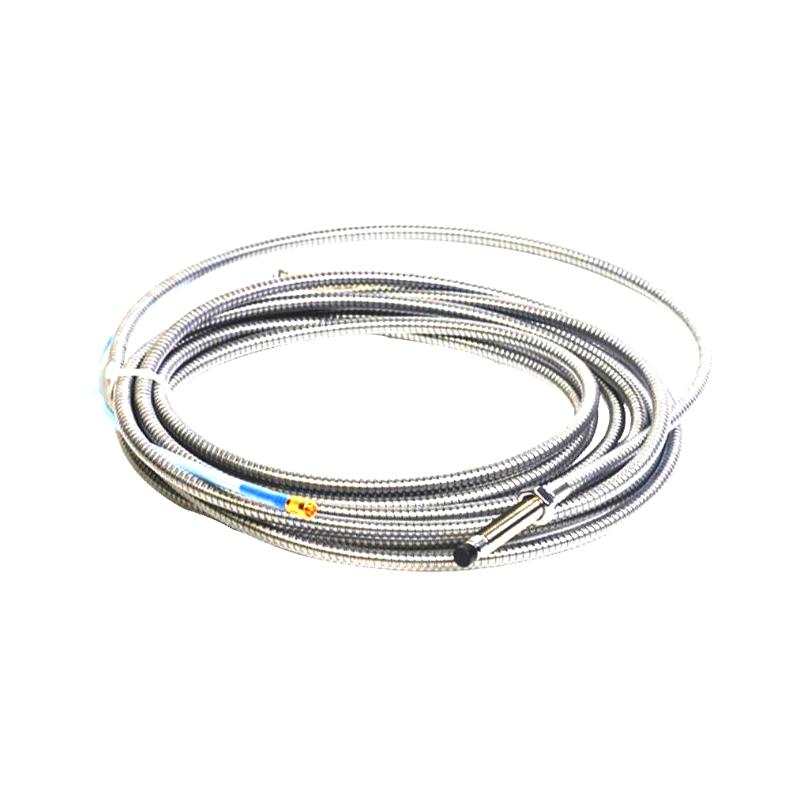

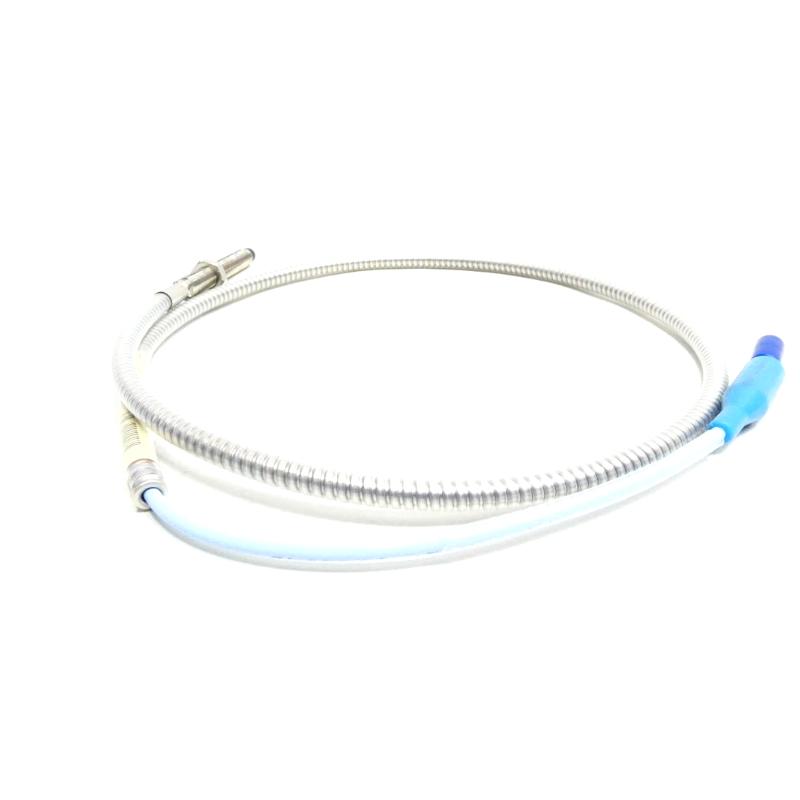

| Product Type | 3300 XL 8 mm Armored Proximity Probe |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Type | Standard-mount armored proximity probe |
| Measurement Principle | Non-contact eddy-current measurement |
| Thread | 3/8-24 UNF |
| Unthreaded Length | 0 in |
| Probe Case Length | 7.0 in (177.8 mm) |
| Total Electrical Length | 1.0 m (3.3 ft) |
| Cable | Standard 75 Ω triaxial cable |
| Cable Armor | Flexible stainless-steel armor |
| Connector | Miniature coaxial ClickLoc connector |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | Stainless steel |
| Target Material | AISI 4140 steel reference target |
| Measurement Application | Shaft vibration, radial vibration, axial position, speed and phase-reference measurement |
| Installation | Threaded, standard mounting |
| Agency Approval | No approval option specified for this configuration |
| Dimensions | Approx. 15 × 13 × 1110 mm |
| Weight | Approx. 0.15 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is the Bently Nevada 330102-00-70-10-02-00 used for?
A: It is a non-contact proximity probe used with the Bently Nevada 3300 XL 8 mm system for monitoring shaft vibration, position and other rotating-machinery parameters.
Q2: What type of probe is the 330102-00-70-10-02-00?
A: It is a standard-mount, 8 mm armored proximity probe with a 3/8-24 UNF thread.
Q3: What is the total electrical length of this probe?
A: The complete probe configuration has a total electrical length of 1.0 m (3.3 ft).
Q4: Does the probe include cable armor?
A: Yes. The 330102-00-70-10-02-00 configuration includes flexible stainless-steel cable armor for additional mechanical protection.
Q5: What connector does the 330102-00-70-10-02-00 use?
A: It uses a miniature coaxial ClickLoc connector. The connector and cable configuration should be matched with the compatible 3300 XL Proximitor Sensor and extension cable.
Q6: What is the probe case length?
A: The specified overall case length is 7.0 inches, equivalent to approximately 177.8 mm.
Q7: What are the dimensions and weight of the probe?
A: The overall shipping/product dimensions are approximately 15 × 13 × 1110 mm, with a listed weight of approximately 0.15 kg.
Q8: Can this probe be used with other Bently Nevada proximity systems?
A: It should be used with the compatible 3300 XL 8 mm system and correctly matched Proximitor Sensor and cable configuration. The complete part number should be checked before replacement because the ordering-code suffixes define the mechanical and electrical configuration.
