Technical Specifications
| Item | Specification |
|---|---|

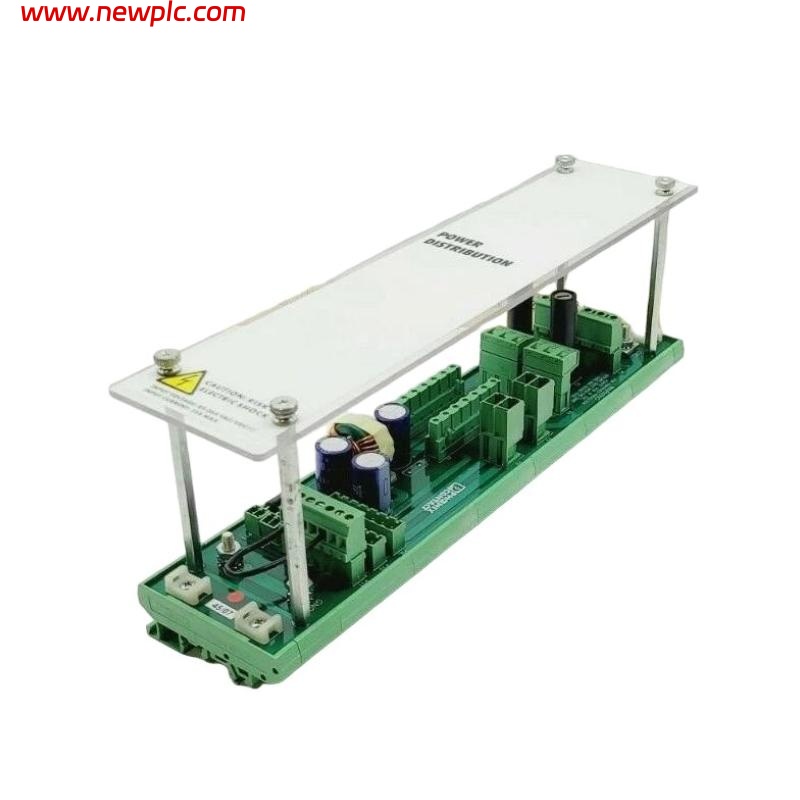

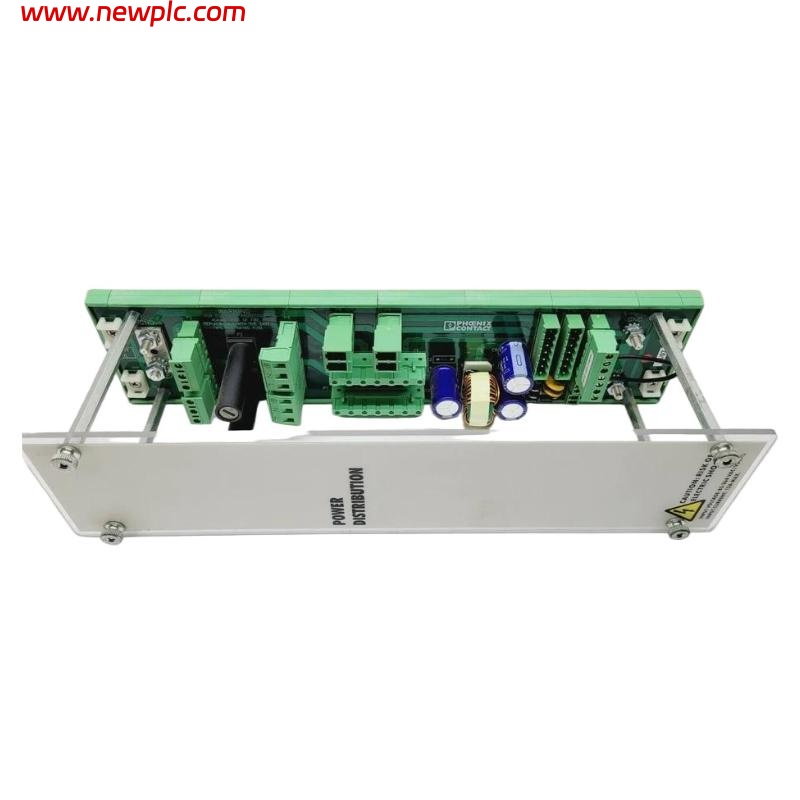

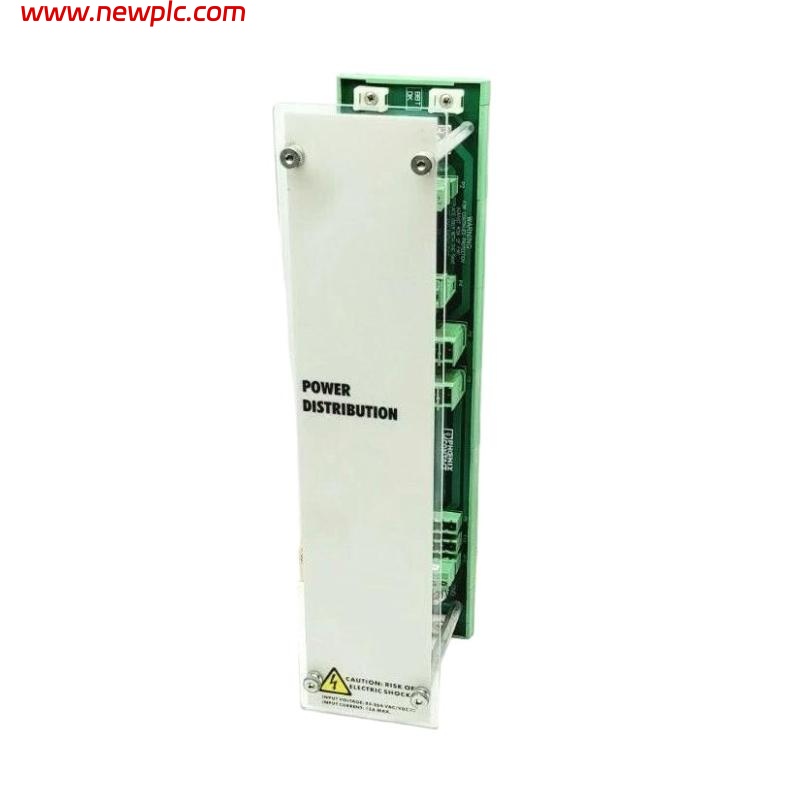

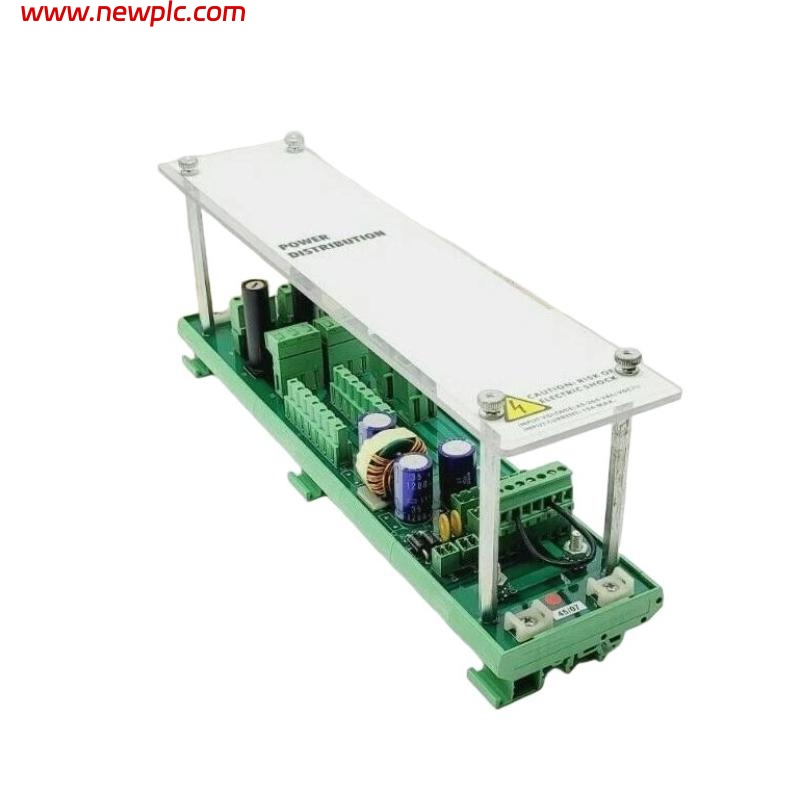

| Product Model | Ovation 1X00102H01 |
| Product Type | Distribution Board |
| Function | Distributes and manages power, signal, and communication lines within the Ovation control system |
| Supported Modules | Analog I/O, Digital I/O, Relay, and Power Supply Modules |
| Channel Capacity | Supports up to 16 module connections |
| Wiring Type | Screw terminals or plug-in connectors |
| Power Supply Voltage | 24 VDC |
| Signal Type | Analog, digital, and power distribution |
| Communication Interface | System bus supported |
| Isolation Voltage | 1500 VDC between module and system bus |
| Indicators | Power and communication status LEDs |
| Material | Industrial-grade flame-retardant PCB |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Rack or panel mount |
| System Compatibility | Ovation Distributed Control System (DCS) |
| Dimensions | 300 × 200 × 120 mm |
| Weight | 0.43 kg |
FAQ
FAQ
Q1: What is the main function of the Ovation 1X00102H01 Distribution Board?
A1: It is used to manage and distribute power, signal, and communication lines within the Ovation control system.
Q2: How many modules can the board support?
A2: It supports up to 16 connected modules.
Q3: What types of signals does the board handle?
A3: It supports analog, digital, and power signal distribution.
Q4: Does the board include status indicators?
A4: Yes, it features LED indicators for power and communication status monitoring.
Q5: What is the operating voltage of the board?
A5: The operating voltage is 24 VDC.
Q6: Is there electrical isolation between the board and the system bus?
A6: Yes, the isolation voltage is rated at 1500 VDC.
Q7: What are the board’s dimensions and weight?
A7: Dimensions are 300 × 200 × 120 mm, and weight is 0.43 kg.
Q8: Which system is the board designed for?
A8: It is designed for the Ovation Distributed Control System (DCS).
