Technical Specifications
| Parameter | Specification |
|---|---|

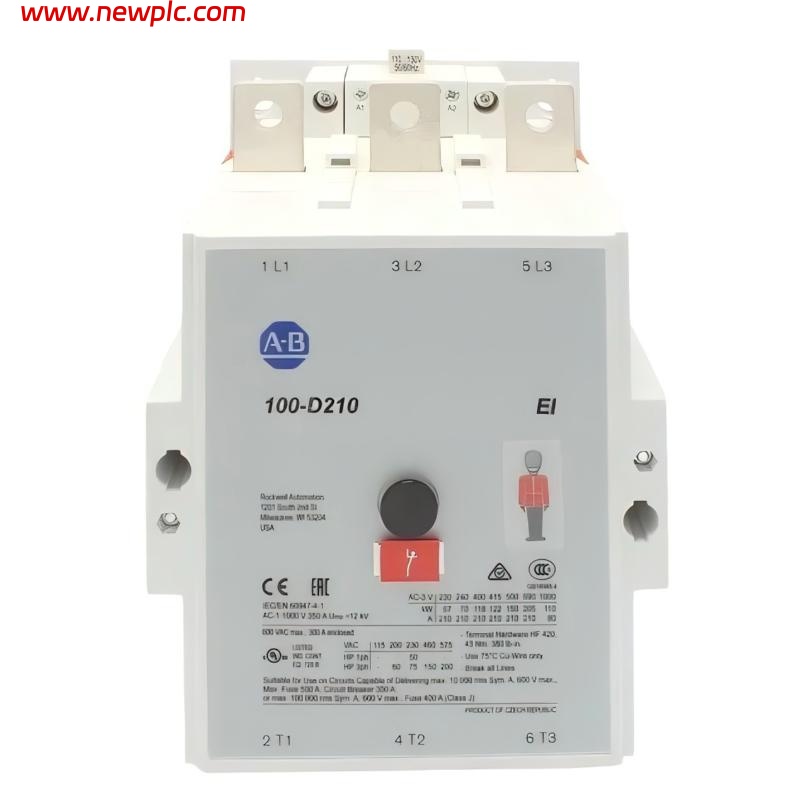

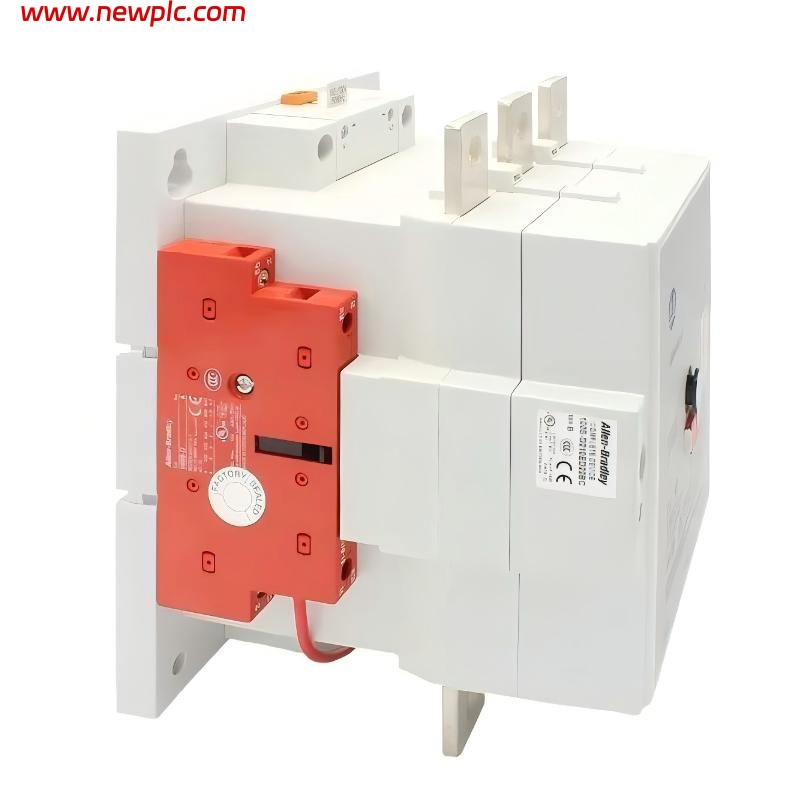

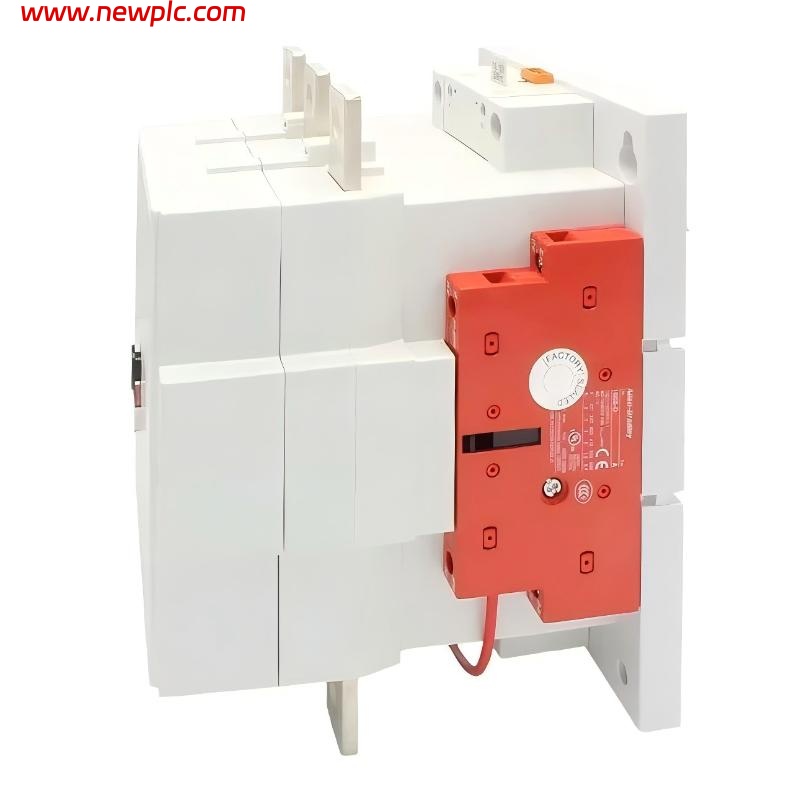

| Model | Allen-Bradley 100S-D210EA22BC |
| Product Type | Safety Contactor |
| Rated Current | 210 A |
| Main Poles | 3 Pole |
| Auxiliary Contacts | 2 NO + 2 NC |
| Coil Type | Electronic AC/DC Coil |
| Coil Voltage | 208–277V AC / 200–255V DC |
| Rated Insulation Voltage | 600V |
| Rated Impulse Voltage | 12 kV |
| Connection Type | Screw Terminal |
| Protection Rating | IP20 |
| Mounting Type | Panel Mount |
| Operating Temperature | -40°C to +80°C (storage) |
| Dimensions (W × H × D) | 155 × 221.75 × 180.5 mm |
| Weight | 7.5 kg |
| Certifications | UL, CSA, CE |
FAQ
FAQ
Q1: What is the rated current of the 100S-D210EA22BC?
The contactor is rated for 210 A.
Q2: What type of device is the 100S-D210EA22BC?
It is an IEC safety contactor designed for industrial safety circuits.
Q3: What auxiliary contacts are included?
The unit includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts.
Q4: What coil voltage does this model support?
It supports 208–277V AC and 200–255V DC electronic coil operation.
Q5: What is the protection rating of the contactor?
The protection rating is IP20.
Q6: What mounting method is used?
The contactor is designed for panel mounting.
Q7: What are the dimensions and weight of the unit?
The dimensions are 155 × 221.75 × 180.5 mm, and the weight is 7.5 kg.
Q8: Is the 100S-D210EA22BC still available?
No, this model has been discontinued by the manufacturer.
