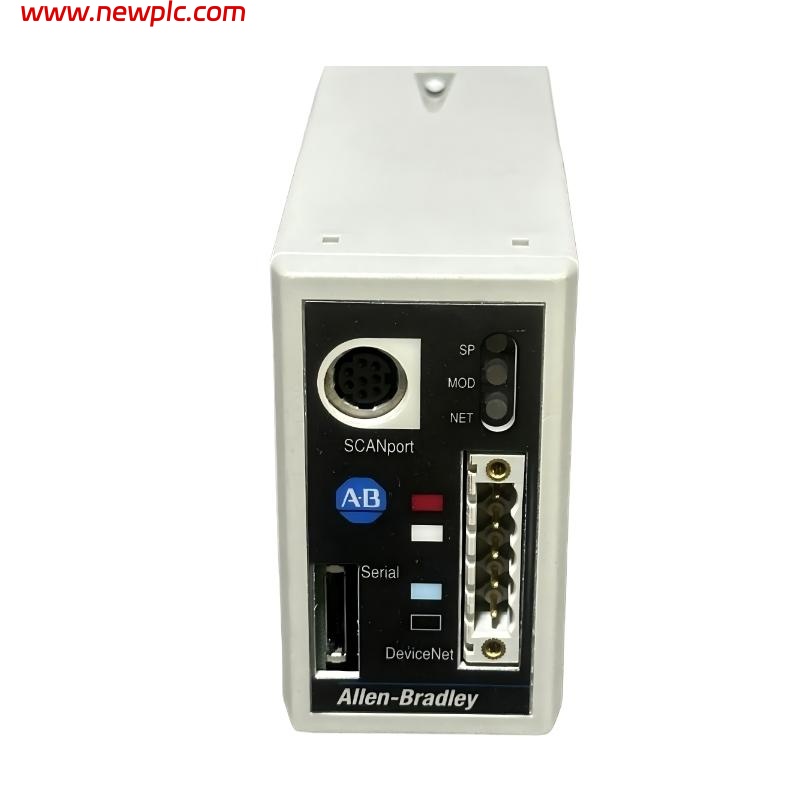

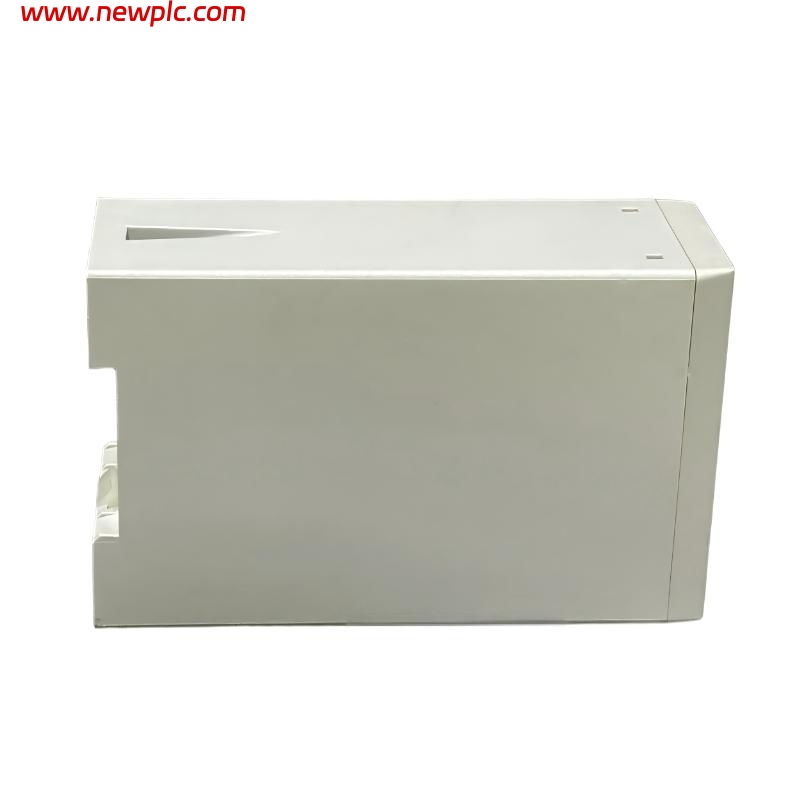

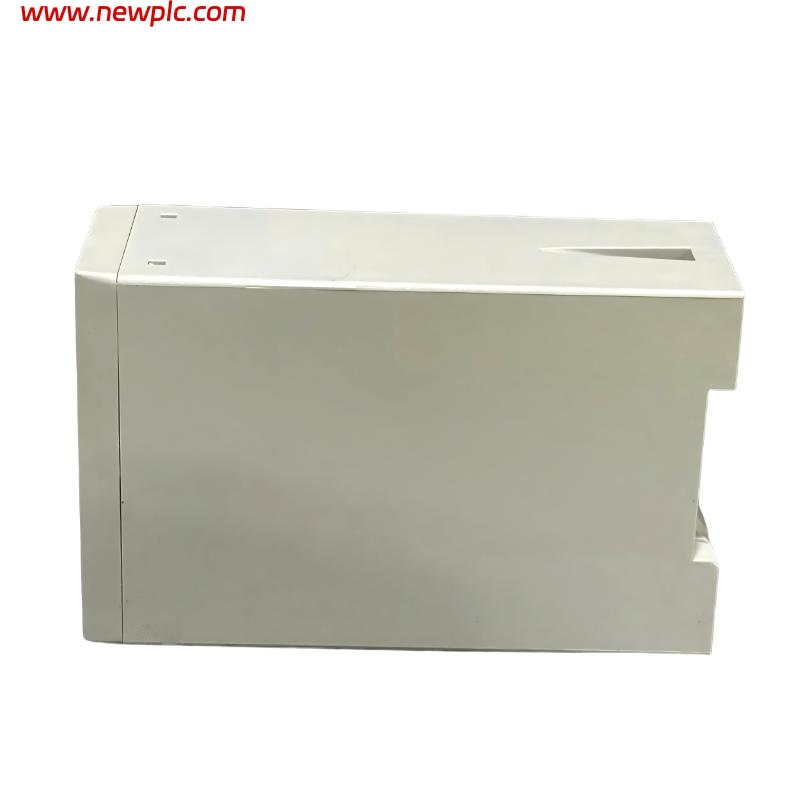

Allen Bradley 1203-GU6 Enhanced DeviceNet Communication Module

FAQ

Q1. What is the 1203‑GU6 used for?
It is a communication module that connects DeviceNet networks to devices with SCANport interfaces, enabling bi‑directional data exchange for drive control and automation.

Q2. Which protocols does it support?
It supports DeviceNet on the network side and SCANport for compatible drives.

Q3. What voltage does this module require?
The module operates on 24 V DC power typically supplied via DeviceNet and SCANport connections.

Q4. How is it mounted?
It is designed for DIN‑rail mounting using a standard 35 × 7.5 mm rail clamp.

Q5. What are the physical dimensions?
The unit measures approximately 1.8″ × 3.0″ × 5.0″ (4.57 × 7.62 × 12.7 cm).

Q6. What environmental conditions can it handle?
It operates in industrial environments from 0 °C to +55 °C with IP30 dust‑protected enclosure.

Q7. Can the DeviceNet node and data rate be configured?
Yes — configuration is done via DIP switches for node address and baud rate.

Q8. What types of devices is it compatible with?
It is commonly used with Allen‑Bradley drives and devices that support SCANport communications such as 1305, 1336, 1394, and 1557 series drives.

1203-GU6 Allen Bradley
