Technical Specifications
| Parameter | Detail |
|---|---|

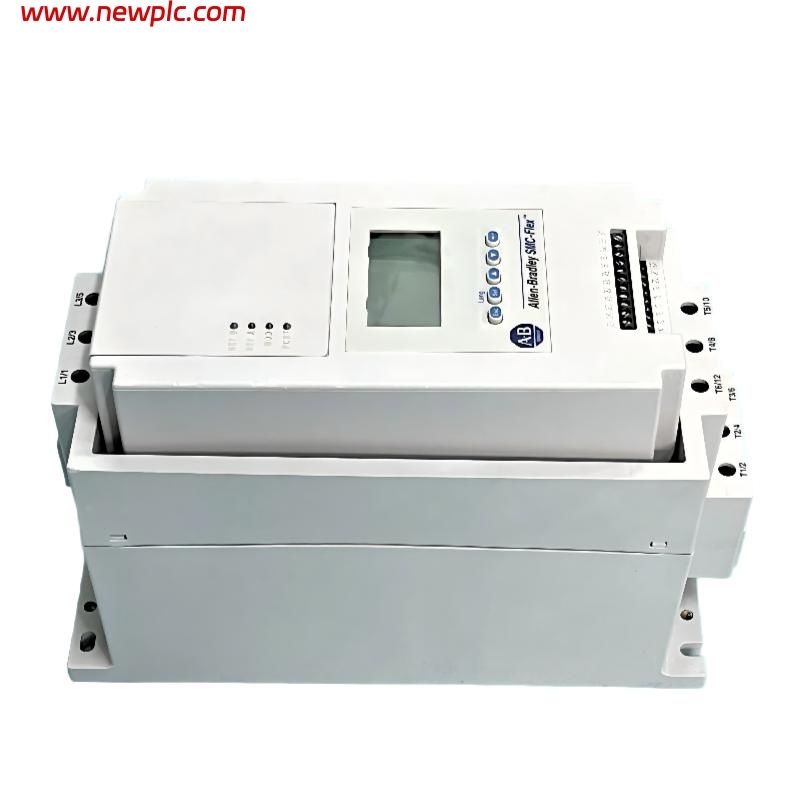

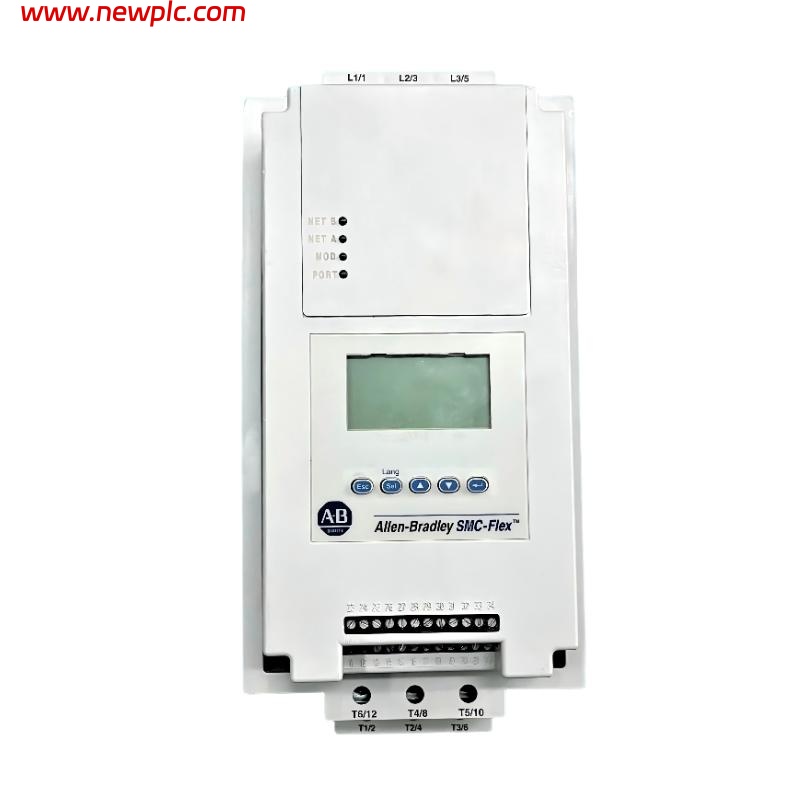

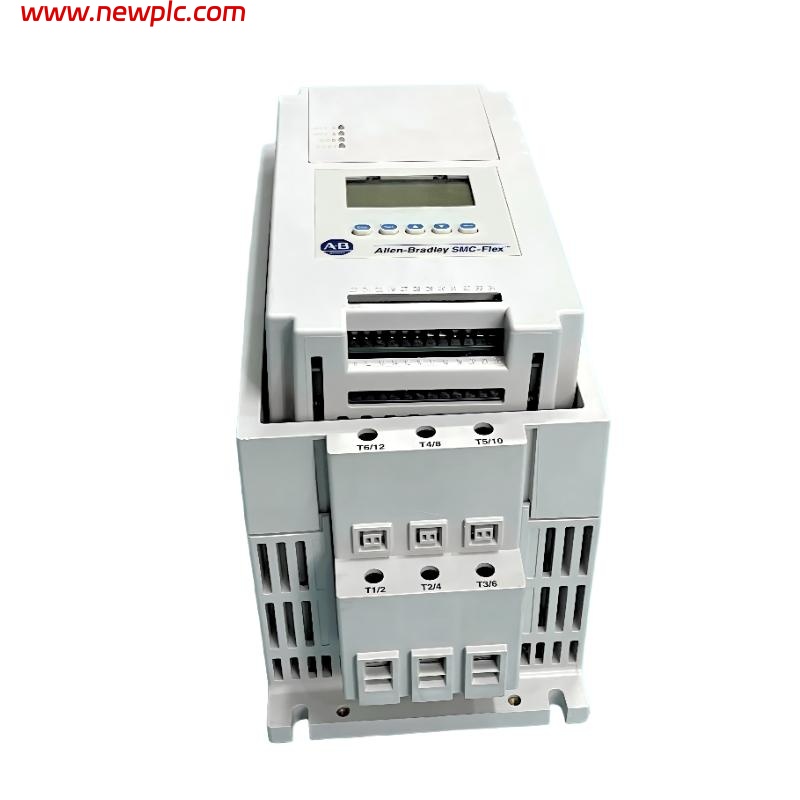

| Product Type | Soft Starter (Solid-State Motor Controller) |
| Model Number | Allen-Bradley 150-F85NBDB |
| Series | SMC Flex |
| Function | Controls motor starting/stopping, reduces inrush current, provides protection and diagnostics |
| Rated Current | 85 A |
| Power Rating | Up to 60 HP @ 460 V AC |
| Input Voltage | 200–480 V AC, 3-phase, 50/60 Hz |
| Control Voltage | 100–240 V AC |
| Operating Frequency | 50/60 Hz |
| Controller Type | Solid-state soft starter with internal bypass |
| Control Features | Soft start, soft stop, current limit, pump control, kick start |
| Protection Features | Overload, underload, stall, jam detection |
| Enclosure Type | Open type (IP20) |
| Dimensions | 321 × 150 × 203 mm (H × W × D) |
| Weight | 5.7 kg |
| Operating Temperature | –5 °C to +50 °C |
| Storage Temperature | –20 °C and above (transport/storage) |
| Humidity | 5–95 % non-condensing |
| Lifecycle Status | Legacy product (commonly available via surplus/repair market) |
FAQ
FAQ
Q1. What is the 150-F85NBDB used for?
It is a soft starter designed to control motor startup and stopping while reducing electrical and mechanical stress.
Q2. What is the rated current and power?
It is rated at 85 A and supports up to 60 HP motors at 460 V AC.
Q3. What voltage does this soft starter operate on?
It works with 200–480 V AC three-phase input and 100–240 V AC control voltage.
Q4. What are the physical dimensions and weight?
The unit measures 321 × 150 × 203 mm and weighs about 5.7 kg.
Q5. What control features are available?
It includes soft start/stop, current limiting, kick start, and pump control modes.
Q6. Does it include motor protection functions?
Yes — it provides overload, underload, stall, and jam protection as standard features.
Q7. What type of enclosure does it use?
It comes in an open-type enclosure (IP20) and is typically installed inside a control cabinet.
Q8. Is this product still manufactured?
It is considered a legacy SMC Flex model, mainly available through surplus or refurbishment channels.
