Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Industrial AC/DC DIN‑Rail Power Supply, Switched‑Mode |
| Product Family | Allen‑Bradley 1606‑XL Series |
| Input Voltage | 380–480 V AC (three‑phase) or 450–820 V DC |
| Input Frequency | 47–63 Hz |
| Output Voltage (Nominal) | 24 V DC |
| Adjustable Output Voltage | 24–28 V DC |
| Maximum Output Current | 10 A |
| Output Power | 240 W |
| Power Reserve | 20 % |
| Efficiency (typical) | ~92.8 % |
| Power Factor (typical) | 0.53 |
| Ripple & Noise (max) | ≤ 50 mV |
| Connection Type | Screw terminals |
| Mounting | DIN rail or wall mount |
| Protection Degree | IP20 |
| Operating Temperature Range | −25 °C to +70 °C |
| MTBF | 975 kh @ +40 °C |
| Dimensions (H × W × D) | 124 mm × 62 mm × 117 mm |
| Weight | 750 g |
FAQ
FAQ
Q1: What type of product is the Allen Bradley 1606‑XL240E‑3?
It is an industrial AC/DC DIN‑rail mounted switched‑mode power supply.
Q2: What is the nominal output voltage of this power supply?
The nominal output voltage is 24 V DC.
Q3: Can the output voltage be adjusted?
Yes, it can be adjusted from 24 V to 28 V DC.
Q4: What is the maximum current this unit can deliver?
It can deliver up to 10 A of output current.
Q5: What are the physical dimensions of the unit?
Dimensions are 124 mm high × 62 mm wide × 117 mm deep.
Q6: How much does this power supply weigh?
The weight is approximately 750 g.

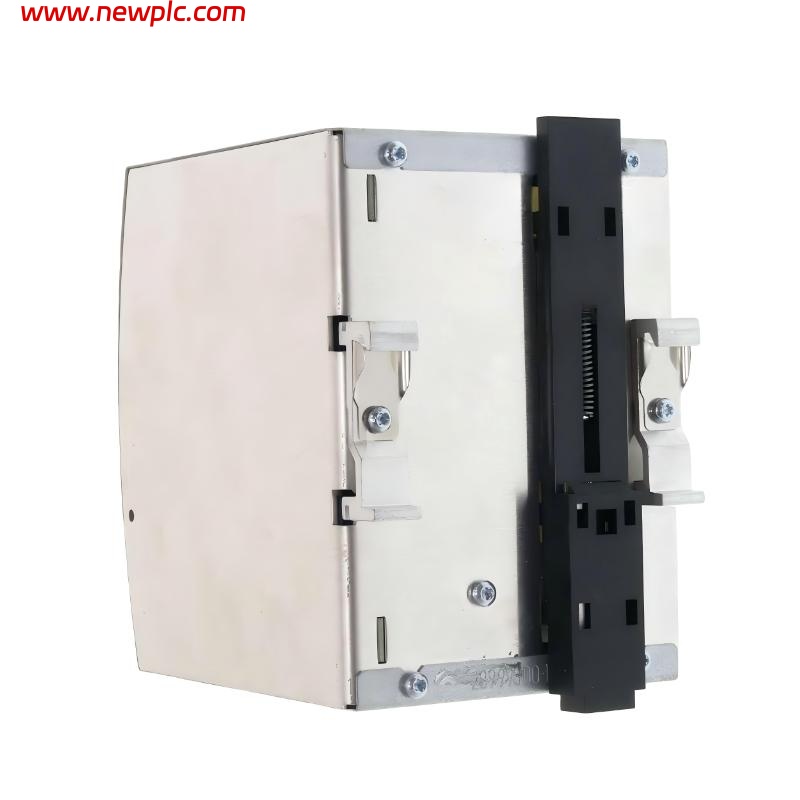

Q7: What mounting options are supported?
It supports DIN rail and wall mounting.
Q8: What is the operating temperature range for this product?
The operating range is from −25 °C up to +70 °C.
