Technical Specifications
| Parameter | Specification |
|---|---|

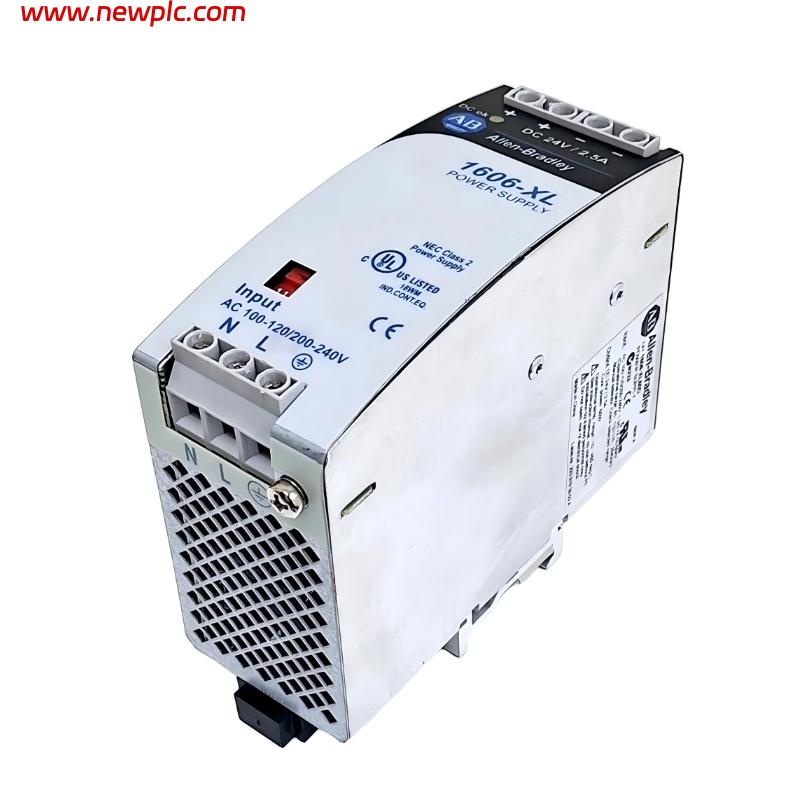

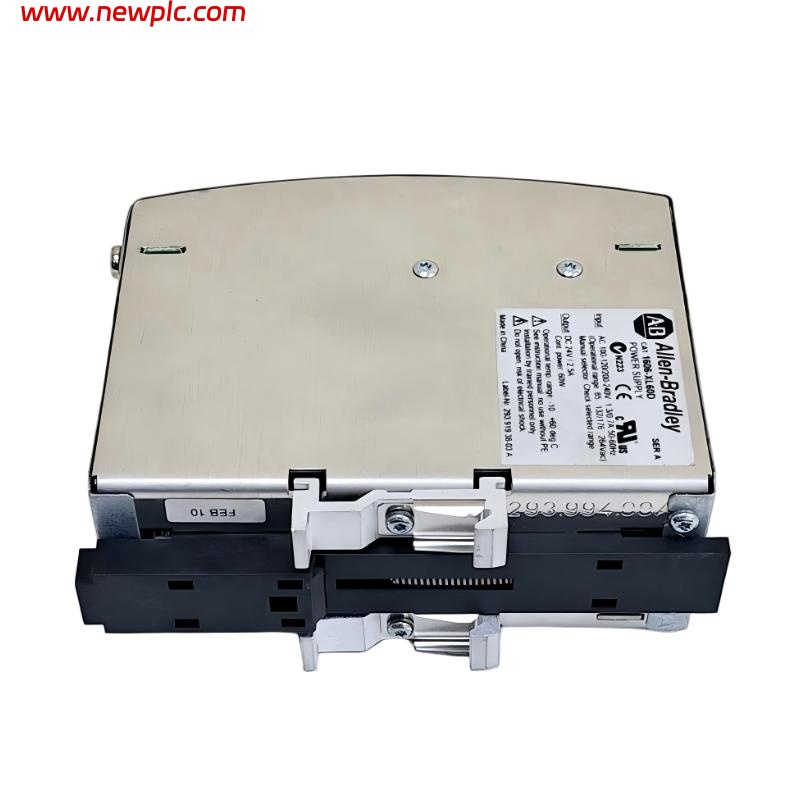

| Product Type | Industrial AC/DC Standard Switched‑Mode Power Supply |
| Product Family | Allen‑Bradley 1606‑XL Series |
| Part Number | 1606‑XL60D |
| Input Voltage Range | 100 – 240 V AC or 160 – 375 V DC selectable |
| Input Frequency | 47 – 63 Hz |
| Input Current | <1.3 A (115 V AC), <0.7 A (230 V AC) |
| Output Voltage (Nominal) | 24 V DC |
| Maximum Output Current | 2.5 A |
| Output Power | 60 W |
| Efficiency (typical) | ~87.5 % |
| Protection Features | Overload, short circuit, overvoltage |
| MTBF | ~740,000 hours @ 40 °C |
| Operating Temperature Range | –10 °C to +70 °C |
| Hold‑up Time | >20 ms (at 196 V AC, 2.5 A) |
| Voltage Regulation | ±2 % overall |
| Output Ripple & Noise (typical) | <25 mVpp |
| Connection Type | DIN rail mounting |
| Dimensions (W × H × D) | 49 mm × 124 mm × 102 mm (including DIN rail) |
| Weight | ~460 g |
FAQ
FAQ
Q1: What is the output voltage of the 1606‑XL60D?
It provides a regulated 24 V DC output.
Q2: How much power can the 1606‑XL60D deliver?
This model delivers a rated output power of 60 W at up to 2.5 A.
Q3: What input voltages are supported by this power supply?
The unit supports a universal AC input of 100–240 V and DC input from 160–375 V.
Q4: What are the physical dimensions of the 1606‑XL60D?
Its dimensions are approximately 49 mm wide × 124 mm high × 102 mm deep (including DIN rail).
Q5: How much does the 1606‑XL60D weigh?
The unit weighs around 460 g.
Q6: What protections are built into this power supply?
It includes protection against overload, short circuit and overvoltage conditions.
Q7: What operating temperature range is supported?
The 1606‑XL60D operates from –10 °C up to +70 °C.
Q8: Is the 1606‑XL60D still in production?
No, it has been discontinued, but it may still be used in legacy systems.
