Technical Specifications
| Parameter | Specification |
|---|---|

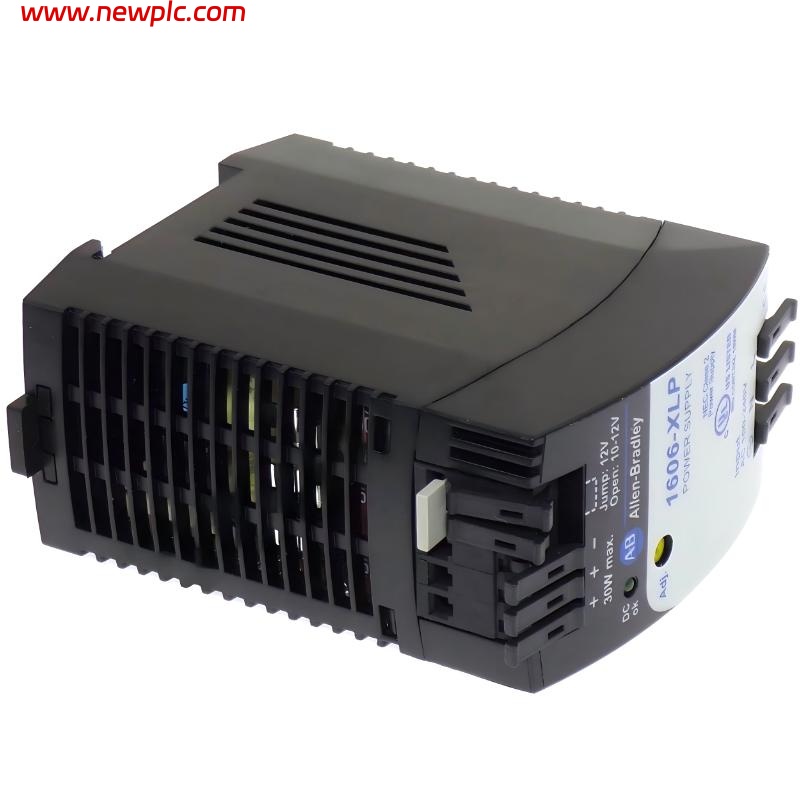

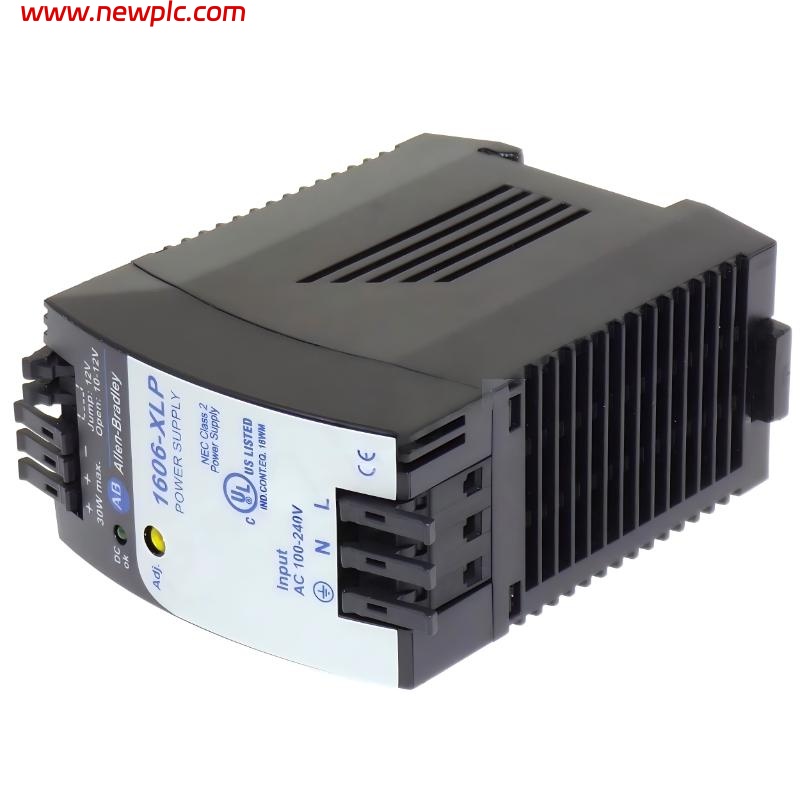

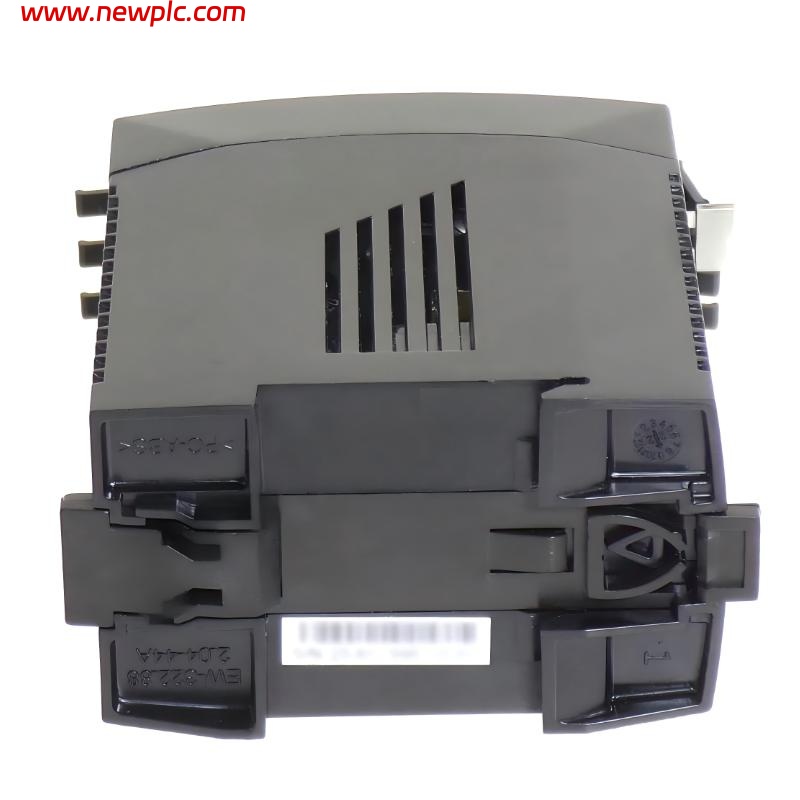

| Model | Allen-Bradley 1606-XLP30B/A |
| Product Type | Compact Switching Power Supply |
| Series | Bulletin 1606-XLP |
| Input Voltage | 100–240V AC / 85–375V DC |
| Input Frequency | 47–63 Hz |
| Output Voltage | 10–12V DC |
| Rated Output Current | 3 A |
| Output Power | 30 W |
| Efficiency | 84% Typical |
| Hold-Up Time | >18 ms |
| Protection Features | Short Circuit, Overload, Overvoltage |
| Cooling Method | Convection Cooling |
| Mounting Type | DIN Rail |
| Connection Type | Spring Clamp |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +70°C |
| Dimensions (W × H × D) | 45 × 75 × 91 mm |
| Weight | 0.25 kg |
| Certifications | CE, UL, cULus, UKCA |
| Product Status | Active |
FAQ
FAQ
Q1: What is the output voltage of the 1606-XLP30B/A?
The power supply provides an adjustable 10–12V DC output.
Q2: What is the rated output current?
The unit delivers up to 3 A continuous output current.
Q3: What input voltage does the device support?
It supports 100–240V AC and 85–375V DC input voltage ranges.
Q4: Does the 1606-XLP30B/A support DIN rail mounting?
Yes, it is designed for standard DIN rail installation.
Q5: What protection features are included?
The unit includes overload, overvoltage, and short-circuit protection.
Q6: What cooling method is used?
The device uses convection cooling without an internal fan.
Q7: What are the dimensions and weight of the unit?
The dimensions are 45 × 75 × 91 mm, and the weight is approximately 0.25 kg.
Q8: Is the 1606-XLP30B/A still available?
Yes, the product is currently listed as active by Rockwell Automation.
