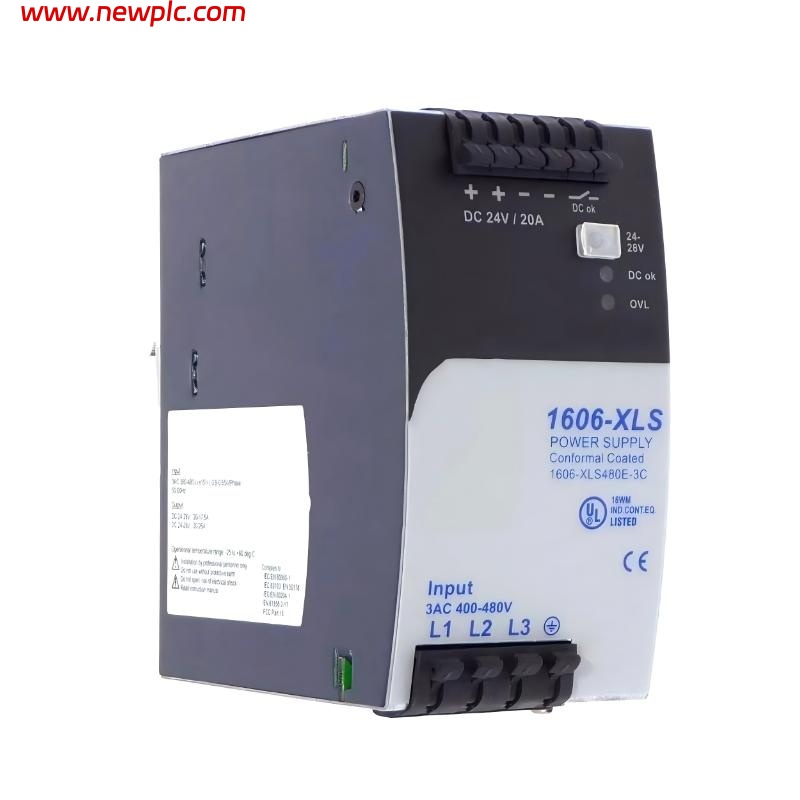

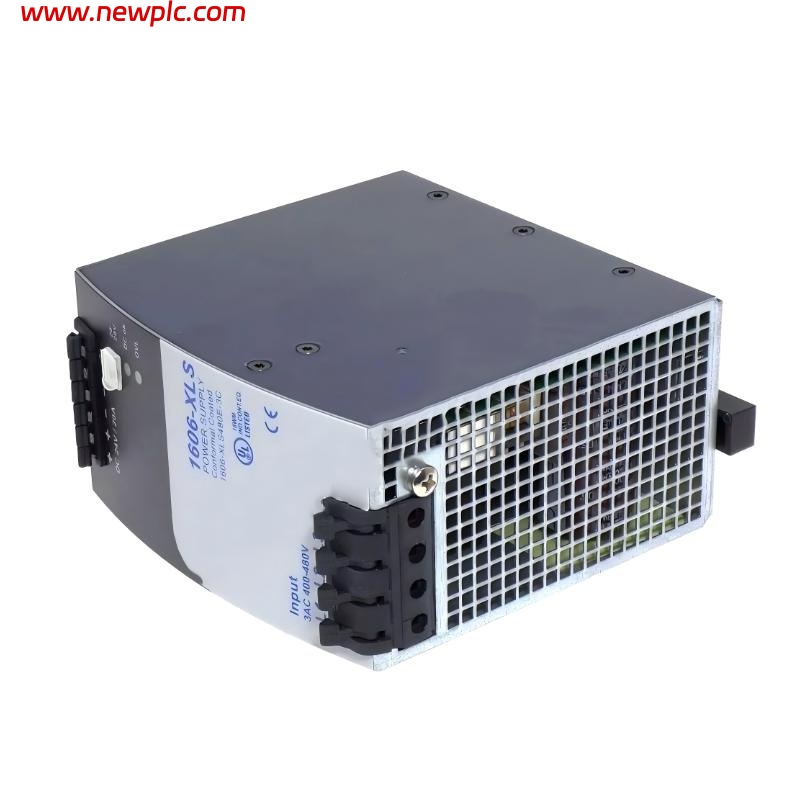

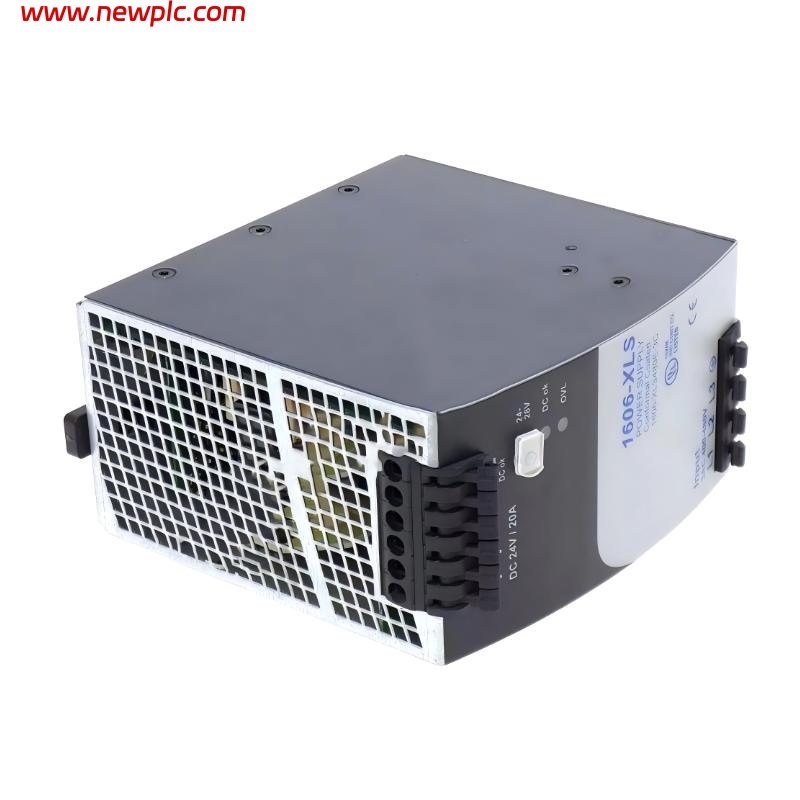

Allen Bradley 1606-XLS480E-3C Industrial AC/DC Three‑Phase Switched‑Mode Power Supply

FAQ

Q1: What type of product is the 1606‑XLS480E‑3C?
It is a three‑phase AC/DC switched‑mode industrial power supply from the Allen‑Bradley 1606‑XLS performance series.

Q2: What input voltages does this model support?
It supports three‑phase AC input from 380 V to 480 V and a wide DC input range of 450 V to 780 V.

Q3: What are the output voltage and current ratings?
The unit provides 24 V DC (adjustable up to 28 V DC) with a rated current of 20 A.

Q4: How much output power can the 1606‑XLS480E‑3C deliver?
It delivers 480 W of power and can provide short‑term peak current up to 30 A.

Q5: What are the physical dimensions and weight?
The power supply measures 65 mm × 124 mm × 127 mm and weighs approximately 870 g.

Q6: What efficiency and noise performance can be expected?
Typical efficiency is around 95 % and maximum output ripple & noise is about 100 mV.

Q7: What protection and monitoring features are included?
It includes overload, short‑circuit and thermal protection as well as a DC‑OK relay contact for status monitoring.

Q8: In what environments can the 1606‑XLS480E‑3C operate?
It operates in temperatures from −25 °C to +70 °C with derating at higher temperatures and is suited for industrial panel‑mounted applications.

1606-XLS480E-3C Allen Bradley

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
