Technical Specifications
| Parameter | Specification |
|---|---|

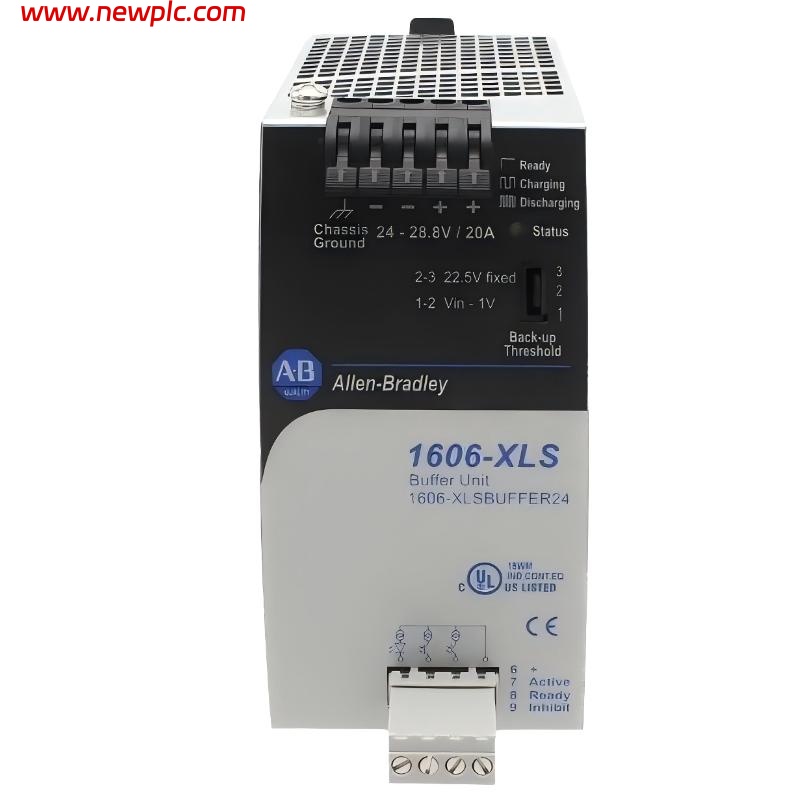

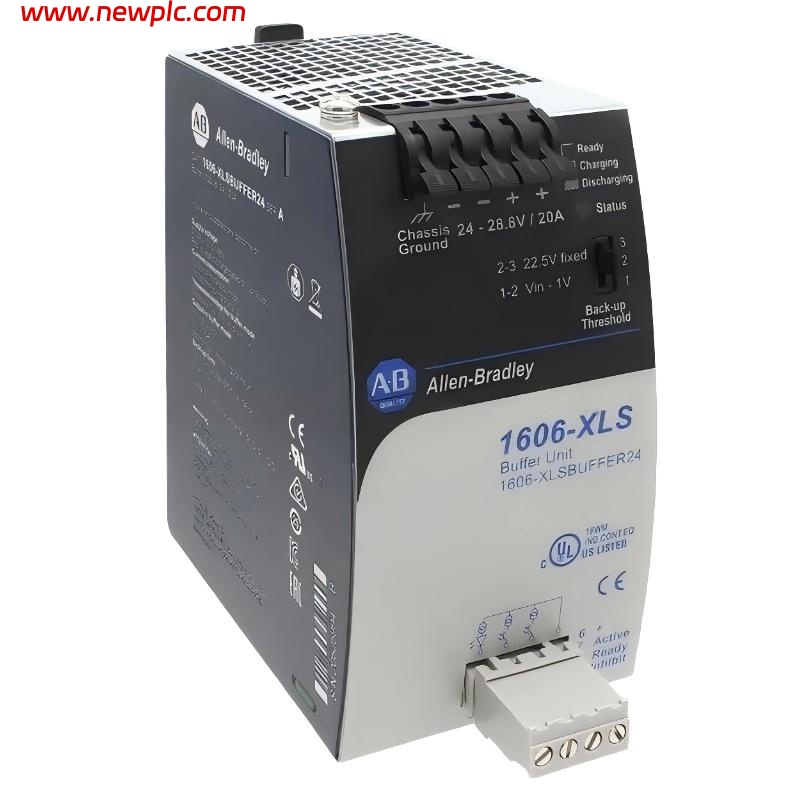

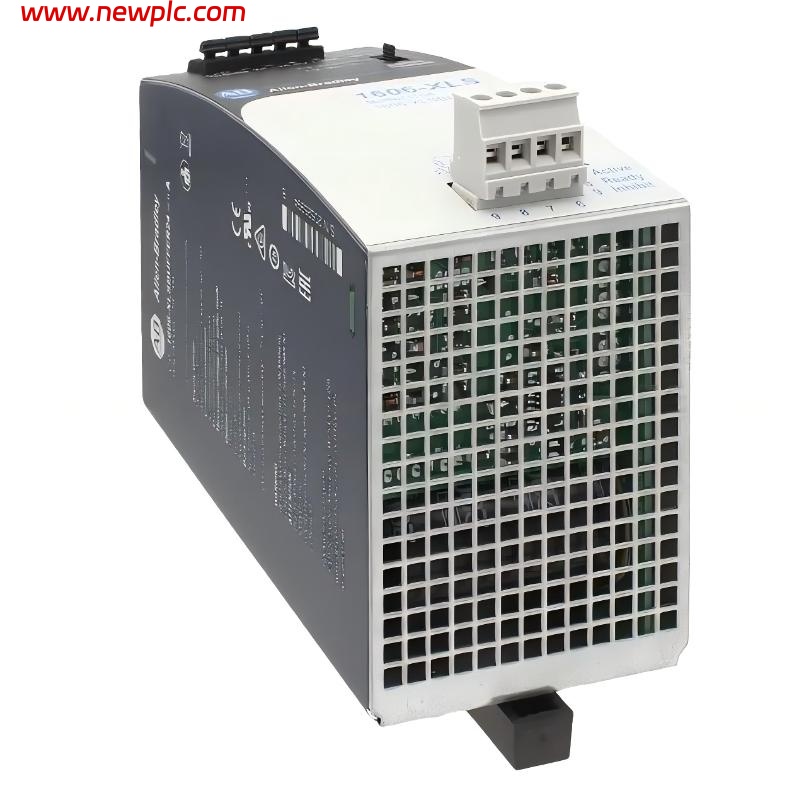

| Model | Allen-Bradley 1606-XLSBUFFER24 |
| Product Type | Buffer Module Power Supply |
| Series | Bulletin 1606-XLS |
| Input Voltage | 24–28.8V DC |
| Output Voltage | 22.5–27.8V DC |
| Rated Output Current | 20 A |
| Output Power | 480 W |
| Buffer Technology | Electrolytic Capacitor Buffering |
| Hold-Up Time | 0.2 s Minimum @ 20 A |
| Charging Current | 0.4–0.6 A |
| Connection Type | Spring Clamp |
| Mounting Type | DIN Rail |
| Protection Features | Reverse Polarity, Overvoltage Protection |
| Protection Rating | IP20 |
| Cooling Method | Convection Cooling |
| Operating Temperature | -25°C to +70°C |
| Dimensions (W × H × D) | 64 × 124 × 102 mm |
| Weight | 0.74 kg |
| Certifications | CE, UL, cULus |
| Product Status | Active |
FAQ
FAQ
Q1: What is the purpose of the 1606-XLSBUFFER24?
The module is used to maintain DC output power during short-term mains failures or voltage dips.
Q2: What input voltage range does the module support?
It supports a DC input voltage range from 24V to 28.8V DC.
Q3: What is the rated output current of the buffer module?
The unit delivers up to 20 A output current.
Q4: How long can the module provide hold-up time?
The minimum hold-up time is 0.2 seconds at 20 A load.
Q5: What buffering technology is used in the device?
The module uses integrated electrolytic capacitors instead of batteries.
Q6: Does the 1606-XLSBUFFER24 support DIN rail mounting?
Yes, the module is designed for standard DIN rail installation.
Q7: What are the dimensions and weight of the unit?
The dimensions are 64 × 124 × 102 mm, and the weight is approximately 0.74 kg.
Q8: Is the 1606-XLSBUFFER24 still available?
Yes, the product is currently listed as active by Rockwell Automation.
