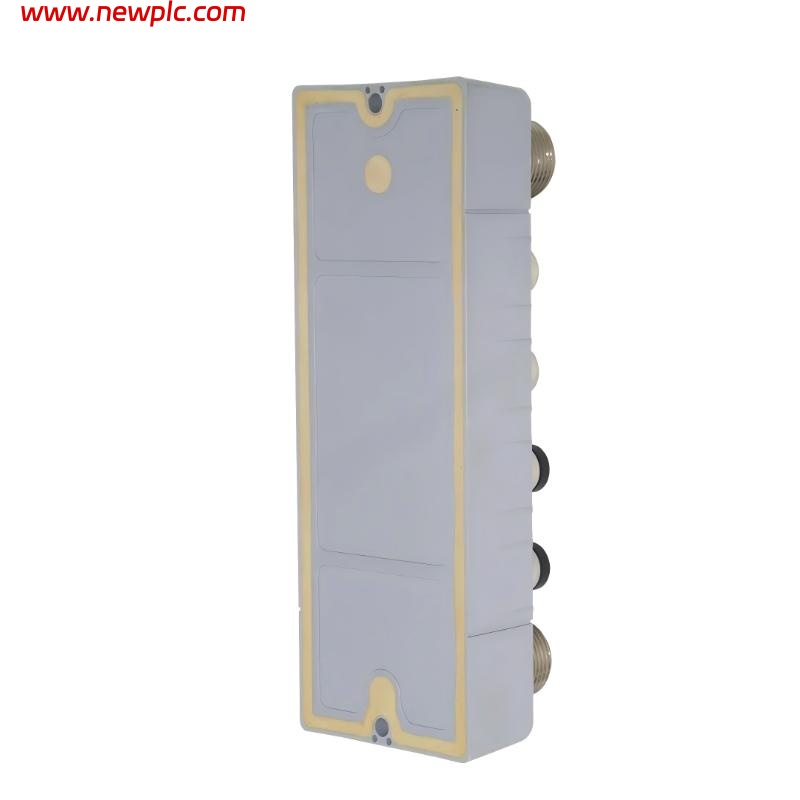

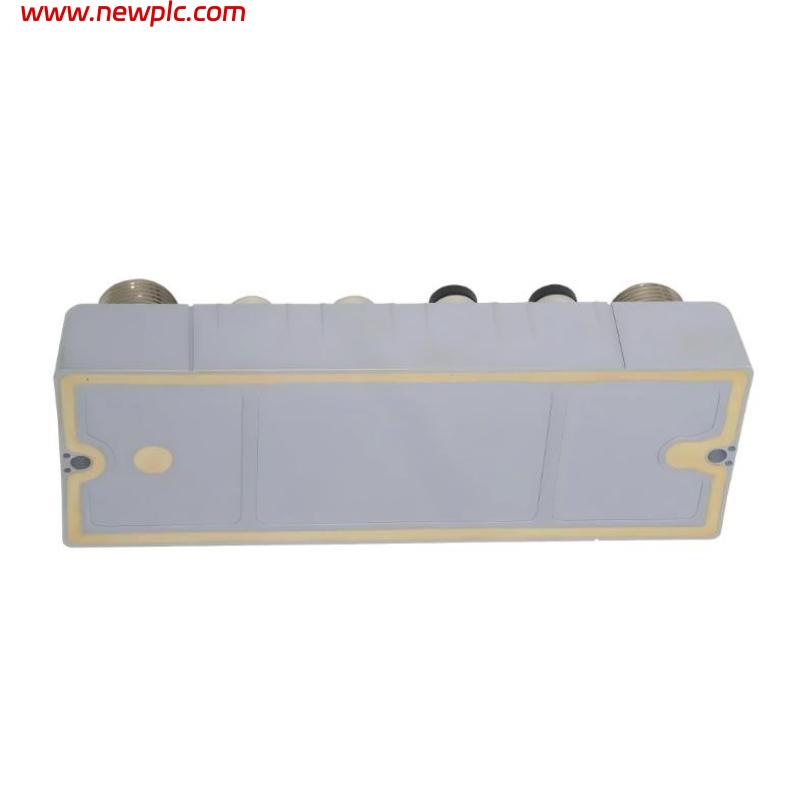

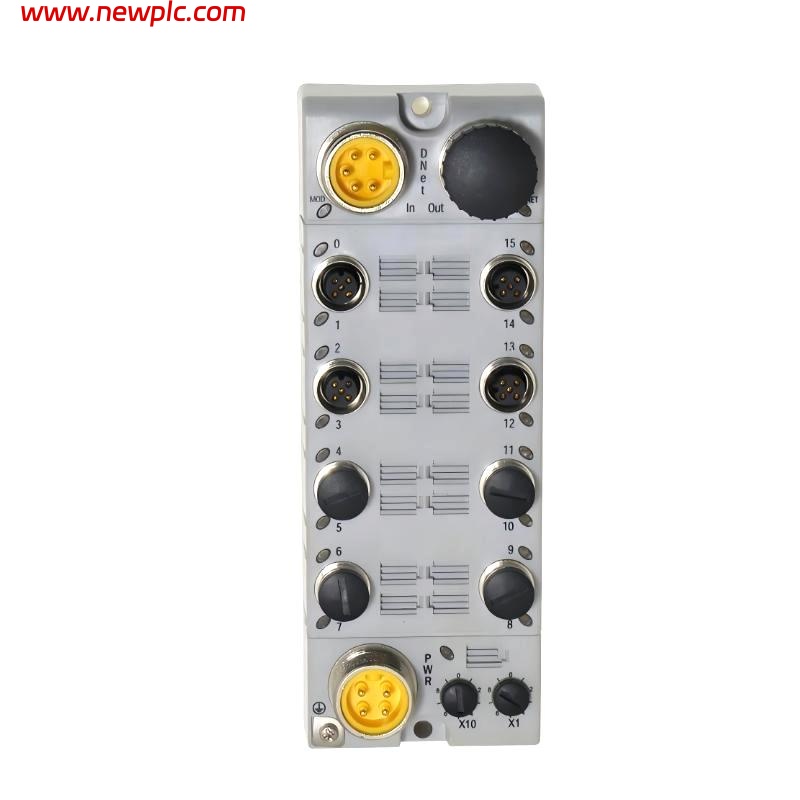

Allen Bradley 1732D-16CFGM12MN Industrial Discrete I/O Module

FAQ

Q1: What type of product is the 1732D‑16CFGM12MN?
It is a 16‑point discrete I/O module from the Allen‑Bradley 1732 Compact I/O family for sensing and switching digital signals.

Q2: What I/O types does this module support?
It supports both sinking and sourcing connections, configurable per point.

Q3: What voltage range do the inputs and outputs support?
Discrete points operate with 10–30 V DC logic levels.

Q4: What is the maximum output current per point?
Each point can switch up to 0.5 A, with a module total of 2 A.

Q5: How are field connections made?
Field devices connect via a single M12 male connector (16‑pin), typically D‑coded.

Q6: What protections and indicators are included?
It includes short‑circuit/overload protection and per‑point status LEDs for diagnostics.

Q7: What are the physical size and weight of this module?
The compact module measures approximately 115 mm × 30 mm × 60 mm and weighs around 150 g.

Q8: What environments is it suitable for?
It is rated for industrial use from −25 °C to +70 °C with IP20 module protection and field connector IP65/67 when properly mated.
