Technical Specifications
| Parameter | Specification |
|---|---|

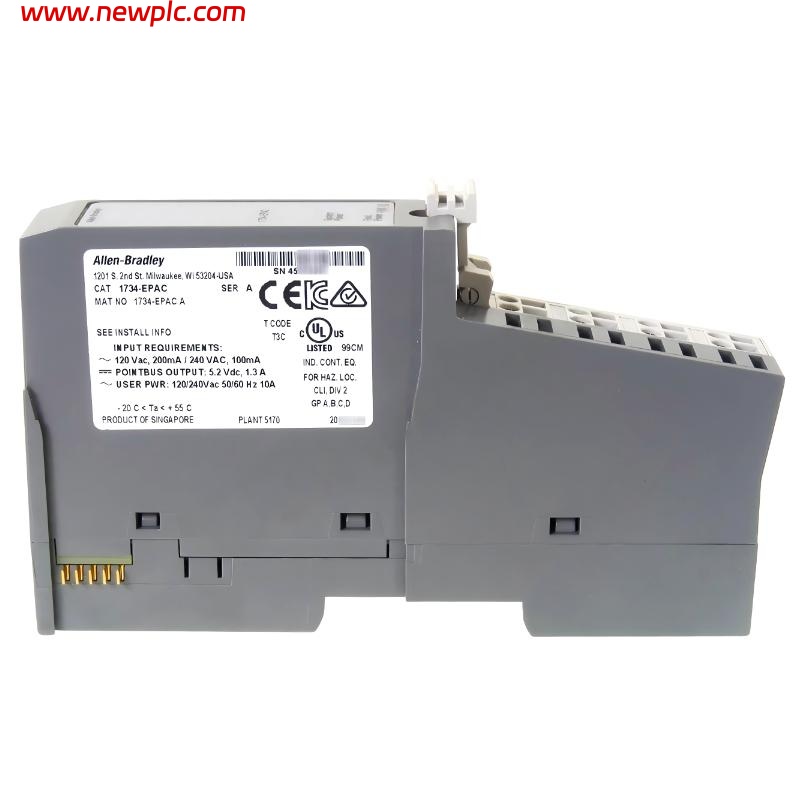

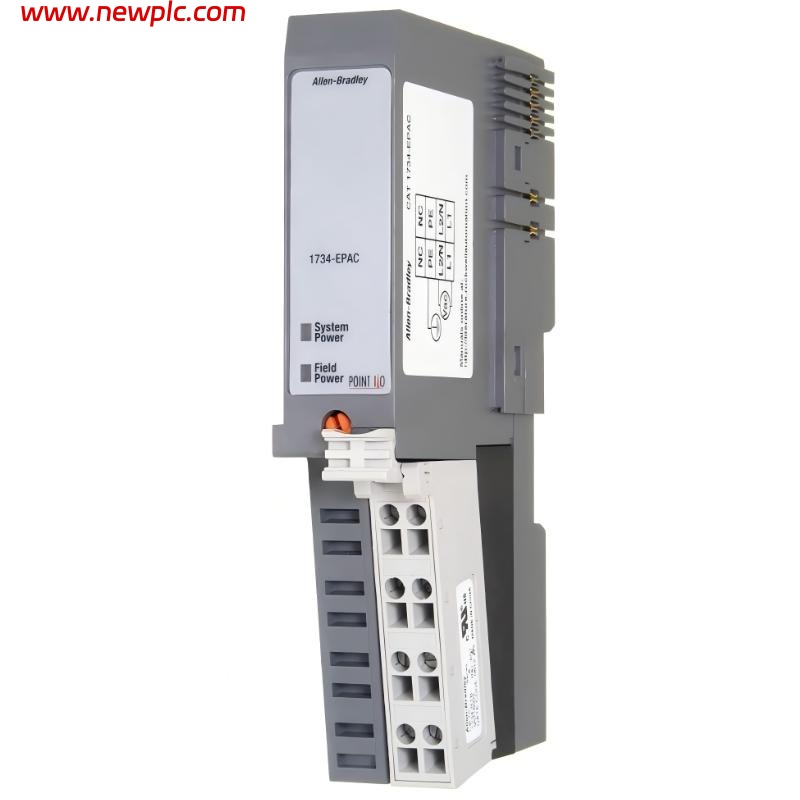

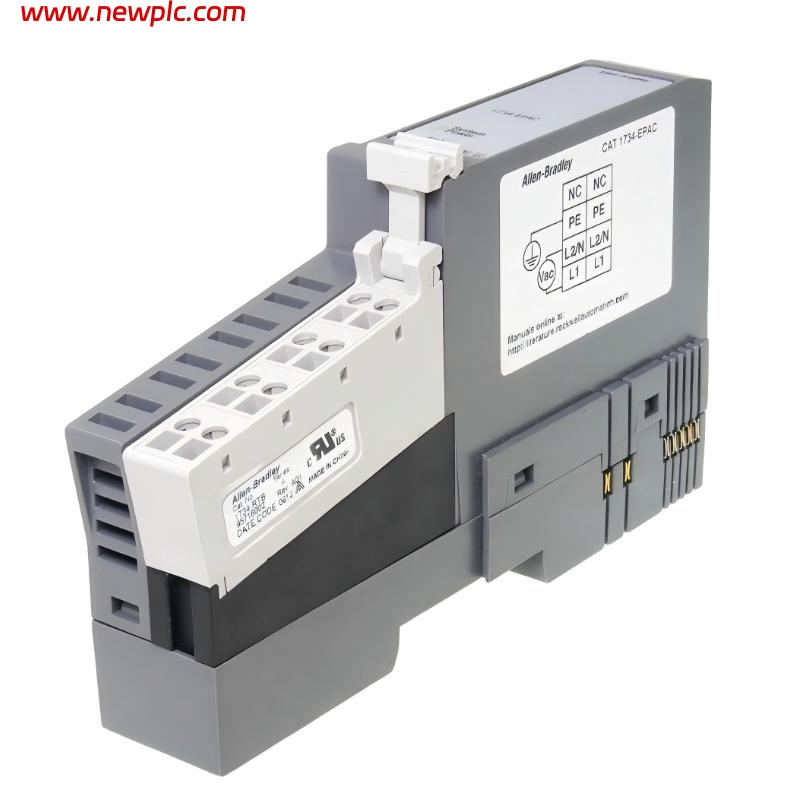

| Model | Allen-Bradley 1734-EPAC |
| Product Type | POINT I/O Expansion Power Supply |
| Series | Bulletin 1734 POINT I/O |
| Input Voltage | 120/240V AC |
| Input Voltage Range | 85–264V AC |
| Input Frequency | 47–63 Hz |
| Field Power Output | 24V DC |
| Maximum Field Current | 10 A |
| Backplane Current | 1.3 A Maximum |
| Isolation Voltage | 250V Continuous |
| Mounting Type | DIN Rail |
| Connection Type | Screw Clamp |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H × W × D) | 75 × 56 × 55 mm |
| Weight | 0.18 kg |
| Certifications | CE, UL, cULus, KC |
| Product Status | Active |
FAQ
FAQ
Q1: What is the function of the 1734-EPAC module?
The module provides field-side power expansion for POINT I/O systems using an AC input supply.
Q2: What input voltage does the 1734-EPAC support?
It supports 85–264V AC input voltage with a nominal rating of 120/240V AC.
Q3: What is the maximum field current output?
The module supports up to 10 A field-side current output.
Q4: Does the 1734-EPAC support DIN rail mounting?
Yes, it is designed for standard DIN rail installation.
Q5: What type of terminal connection is used?
The module uses screw clamp terminal connections.
Q6: What protection rating does the device have?
The module is rated IP20 for use inside industrial control enclosures.
Q7: What are the dimensions and weight of the unit?
The dimensions are 75 × 56 × 55 mm, and the weight is approximately 0.18 kg.
Q8: Is the 1734-EPAC still available?
Yes, the product is currently listed as active within the Bulletin 1734 POINT I/O series.
