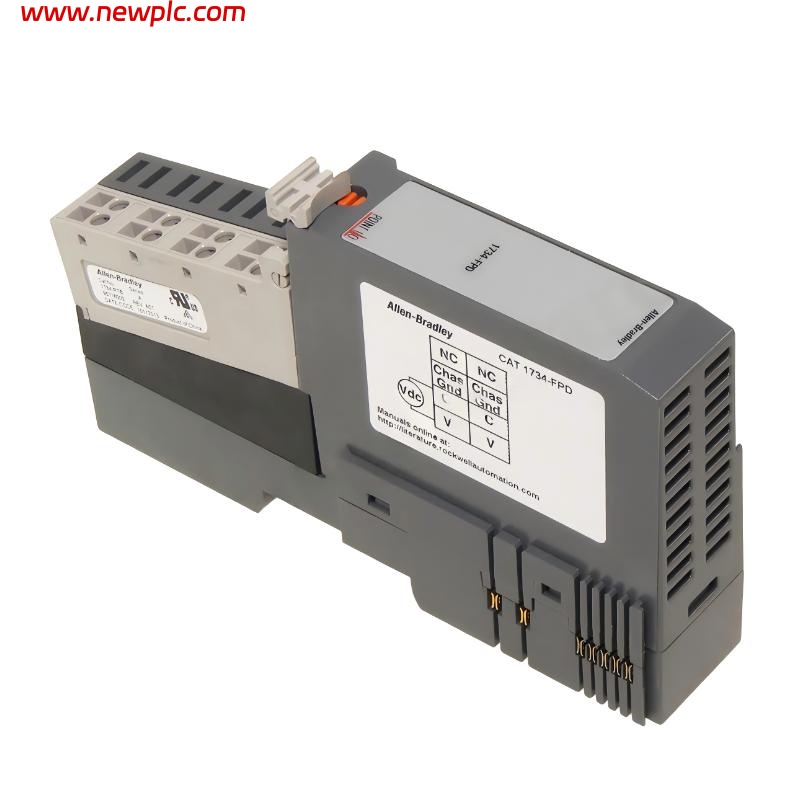

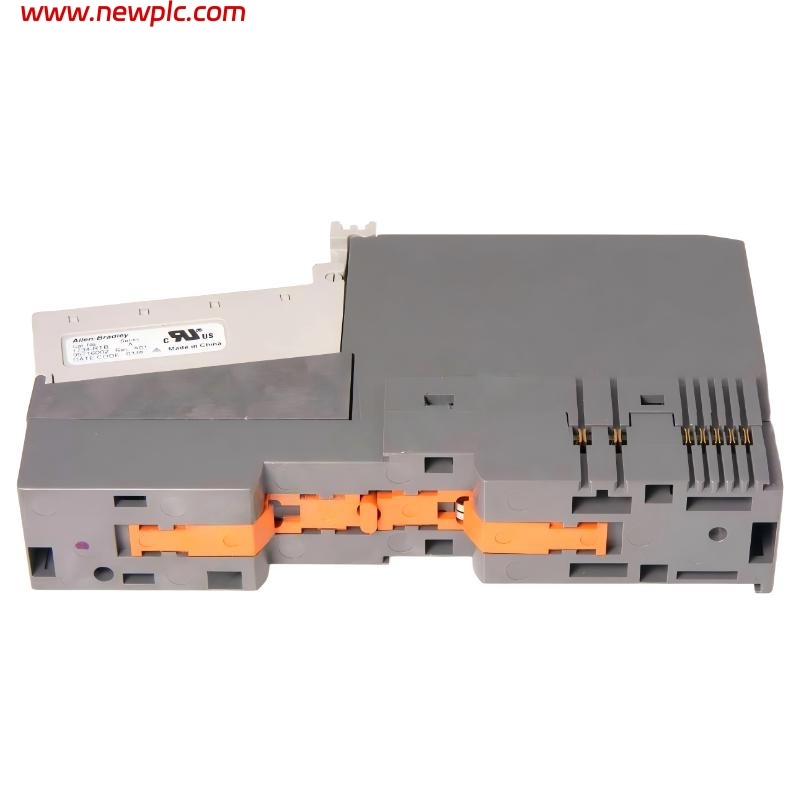

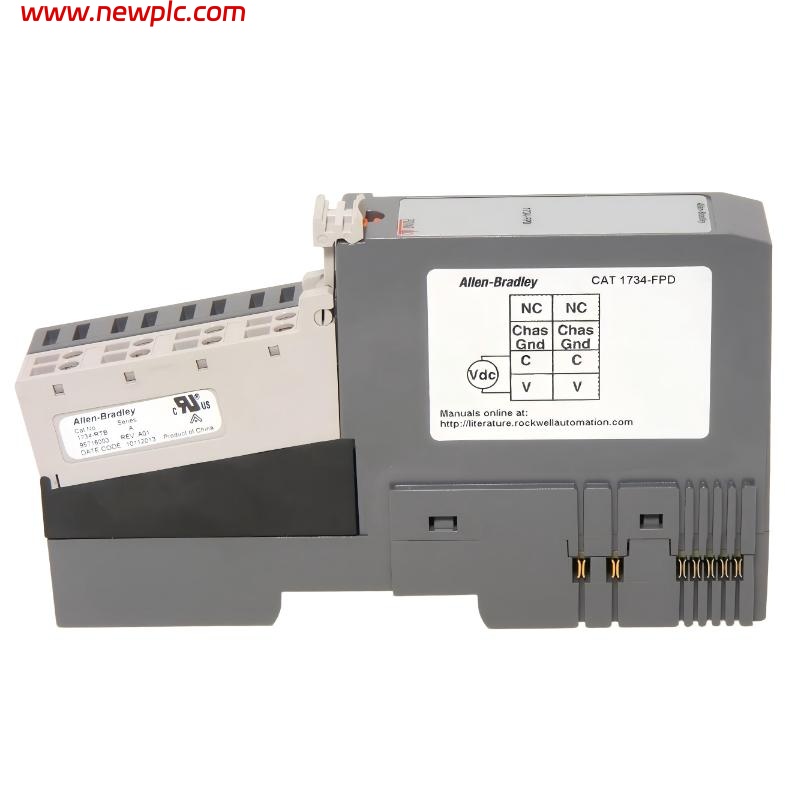

Allen Bradley 1734-FPD Power distribution and fuse terminal module

FAQ

Q1. What is the purpose of the 1734‑FPD module?
It provides fused field power distribution to connected POINT I/O modules, protecting branches with blade fuses.

Q2. What input voltage is required?
The module operates on 24 V DC with an acceptable range from about 10 V to 28.8 V DC.

Q3. How many fuse points does the module provide?
It provides four field power fuse points for individual branch protection.

Q4. What is the maximum output current?
The total field power distribution can supply up to approximately 10 A.

Q5. Does the module require its own power supply?
Yes, it is powered by the same 24 V DC supply used for POINT I/O field power.

Q6. How is the module mounted?
It is mounted on DIN rail within an industrial control cabinet.

Q7. Does it include any protective features?
Yes, it includes reverse polarity protection and separate fused outputs for branch protection.

Q8. What are the physical size and weight of the unit?
The approximate dimensions are 76.2 × 54.9 × 133.4 mm (H × W × D) and it weighs about 0.15 kg.
