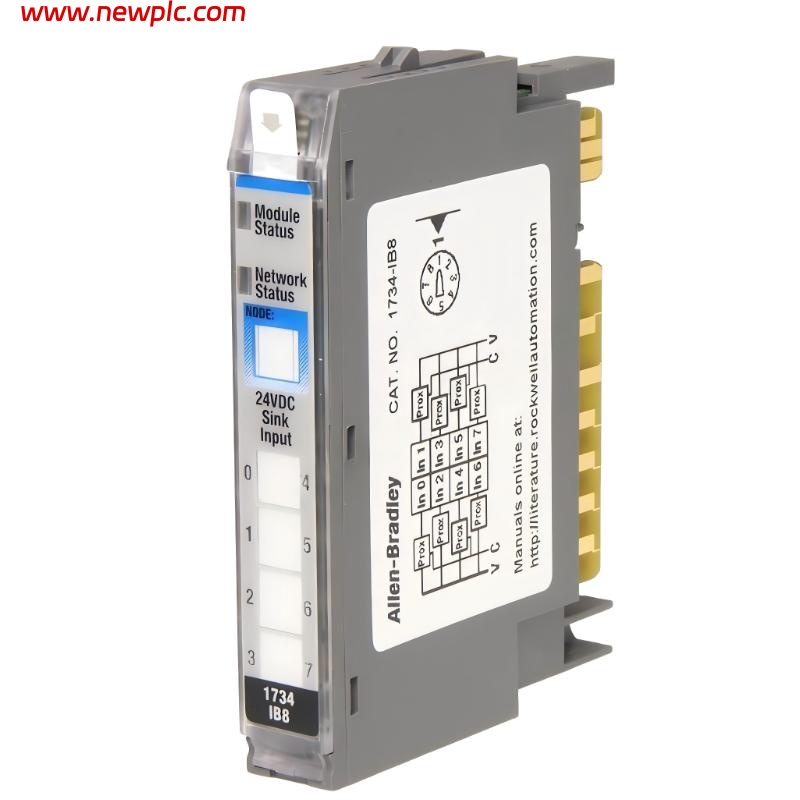

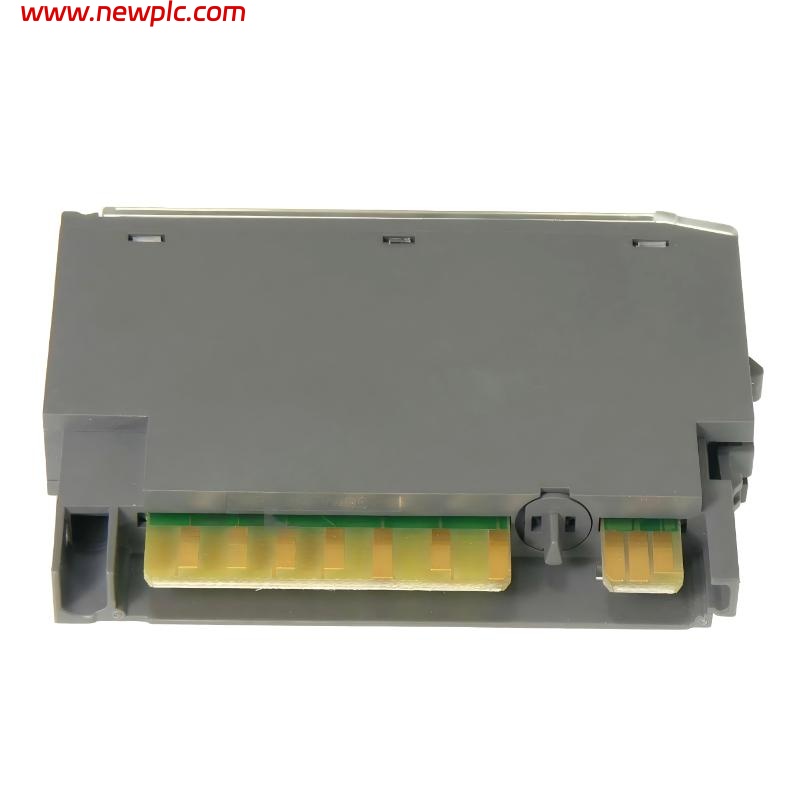

Allen Bradley 1734-IB8 Digital DC sinking input module

FAQ

Q1. What is the function of the 1734-IB8 module?
It is an 8-channel digital DC input module used to receive field signals in POINT I/O systems.

Q2. What type of inputs does it support?
It supports sinking digital inputs operating at 24 V DC.

Q3. What is the acceptable input voltage range?
The module accepts voltages from approximately 10 V to 28.8 V DC.

Q4. How many input channels are available?
It provides eight independent input channels in a single module.

Q5. Does the module have configurable filtering?
Yes, it includes a fixed 0.5 ms filter plus a user-adjustable filter up to 63 ms.

Q6. What mounting method is required?
It mounts on a DIN rail using a compatible terminal base such as 1734-TB or 1734-TBS.

Q7. Does the module include status indicators?
Yes, each input has an LED indicator along with a module status LED.

Q8. What are the size and weight of the module?
It measures approximately 56 × 12 × 75.5 mm and weighs around 30–32 g.
