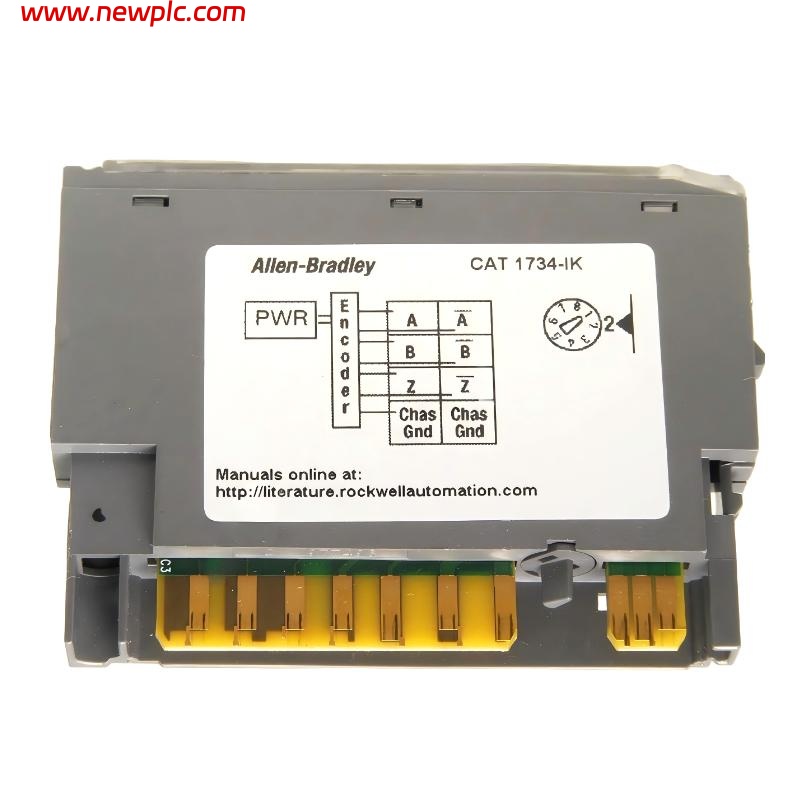

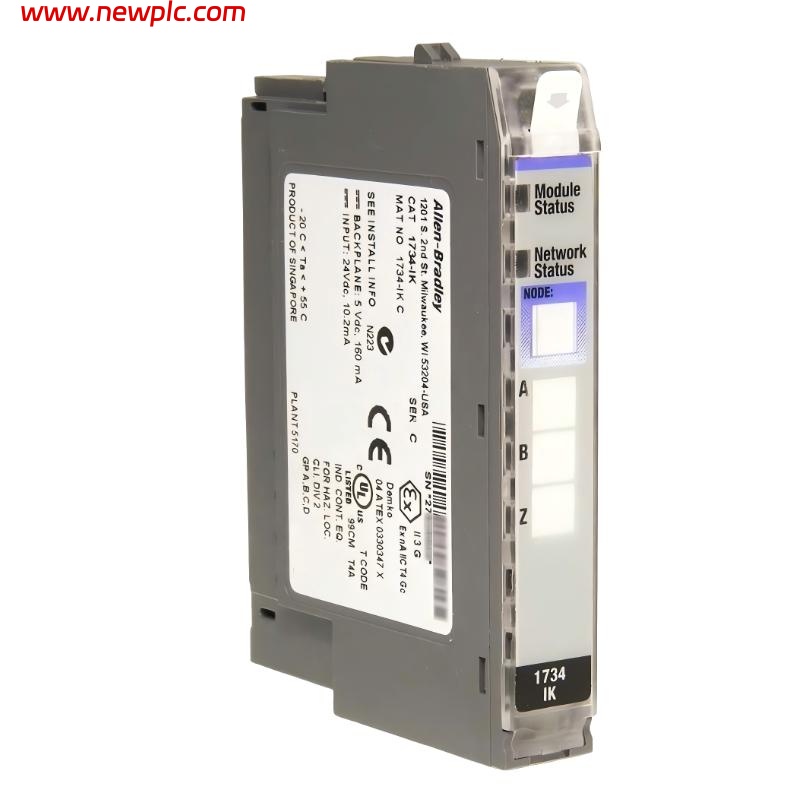

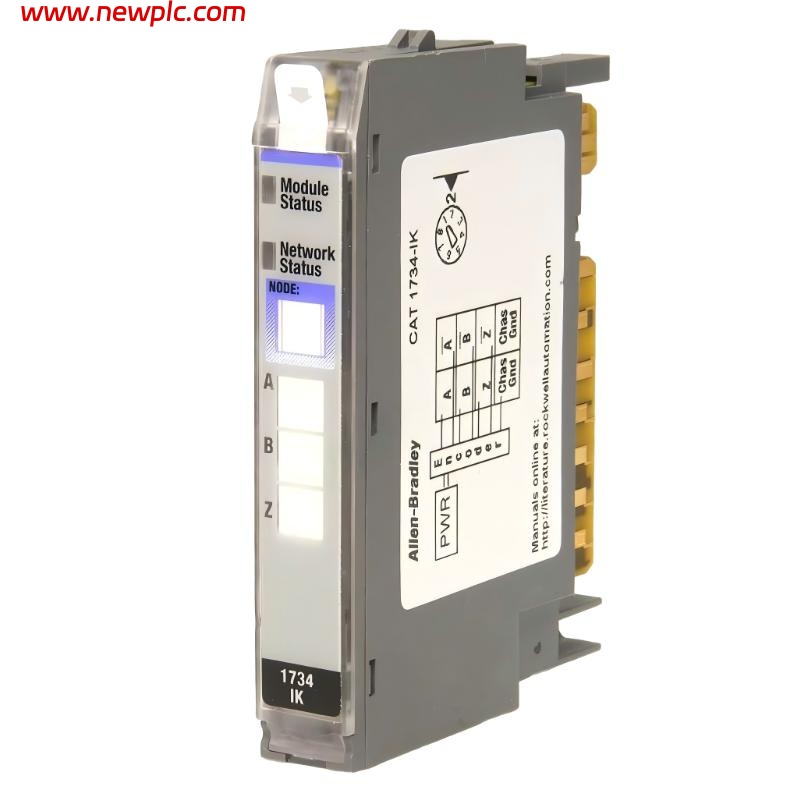

Allen Bradley 1734-IK Incremental encoder input

FAQ

Q1. What is the primary function of the 1734‑IK module?
It accepts incremental encoder signals (A/B/Z) and counts pulses for motion or position feedback.

Q2. What supply voltage does the 1734‑IK require?
It operates on 15–24 V DC with a nominal 24 V DC supply.

Q3. How many encoder signal channels are supported?
It supports one incremental encoder input with A, B, and optional Z channels.

Q4. What is the maximum count frequency it can handle?
The module can process encoder signals up to ~1 MHz.

Q5. Does it require a terminal base?
Yes — it mounts on a POINT I/O terminal base such as 1734‑TB, 1734‑TBS, or 1734‑TB3 series bases.

Q6. What sort of status indication does it have?
It has LEDs indicating module status, network status, and the state of each encoder input.

Q7. What is the operating temperature range?
It is rated for operation from −20 °C up to +55 °C.

Q8. What are the physical dimensions and weight?
The module is approximately 56 × 12 × 75.5 mm and weighs around 0.04–0.06 kg.

1734-IK Allen Bradley

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
